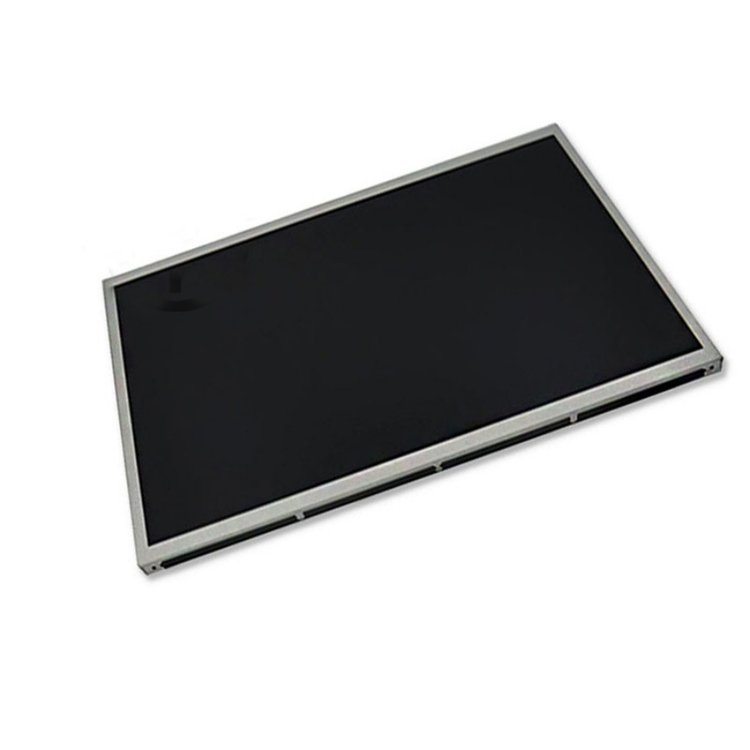

AUO G215HVN01.3 Application Details
| Basic Information : | Brand | AUO | Model | G215HVN01.3 |
| Type | a-Si TFT-LCD , LCM | Used For | Industrial |
| Screen Size |
21.5 inch | | |
Environment :
| Storage Temp. | -20 ~ 80 °C | Operating Temp. | -20 ~ 80 °C |
| RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) |
Typical Features :
| Ultra Hight Brightness，WLED Backlight，Life>=50K hours,With LED Driver,Reverse I/F,Matte |
AUO G215HVN01.3 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)*1080, FHD | Dot Pitch(mm) | 0.08275*0.24825 (H*V) |
Pixel Format
R | RGB Vertical Stripe | Pixel Pitch(mm) | 0.24825*0.24825 (H*V) [102PPI] |
Mechanical Size :
| Active Viewing (mm) | 476.64(H)*268.11(V) |
Bezel Area(mm) | 479.84(H) *271.31(V) |
| Outline Dim.(mm) | 495.6(H) *292.2(V) | Depth(mm) | 8.36/24.05 (Typ./Max.) |
Outline Features :
| Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight | 1.63±0.16Kgs | Treatment | Antiglare, Hard coating (3H) |
AUO G215HVN01.3 Optical Details
| Basic Information : | Luminance(cd/m² ) | 1000 (Typ.) | Contrast Ratio | 5000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | VA, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 3/7 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 70% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 73% coverage |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
AUO G215HVN01.3 Electronics Details
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption: | 44.54W (Typ.) |
AUO G215HVN01.3 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply
| 0.7/0.8A (Typ./Max.) |
| Consumption | 3.5/4.4W (Typ./Max.) | | |
| Signal Type : | LVDS (2 ch, 8-bit) | Logic Voltage | - |
| Interface Features : | Position | Down left of panel | | Type | Connector |
Interface Detail :
| Brand | Model | Pitch | Pins | Quantity | Pin Assignment |
| JAE |
FI-XB30SRL-HF11
| 1.0mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A |
AUO G215HVN01.3 Backlight Details
| Backlight Features : | Type | WLED | Quantity | 18S4P*2CN | Position | Edge light type (Top and Bottom) |
| Replacement | - | Shape | 4 strings * 2CN | Life Time | 50K(Min.) Hours |
| Interface Features : | Position | - | Type | Connector | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| CviLux | CI0110M1HR0-NH |
2.0 mm | 10 pins | 1 pcs | |
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 3.42A (Typ.) |
| Consumption | 41.04W (Typ.) |
AUO G215HVN01.3 Packing Details
| Package Box : | Quantity | Weight | Box Size (L*W*H) |
| 7pcs / box | 30.9 Kgs (Max.) | 602*372*367 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G215HVN01.3. Please include your application and required quantity so we can confirm the applicable revision.
