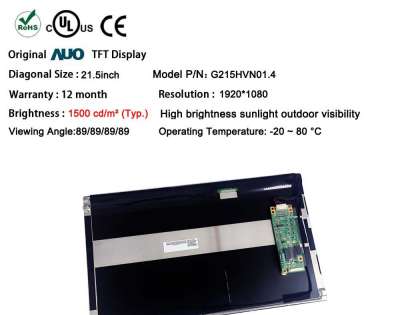

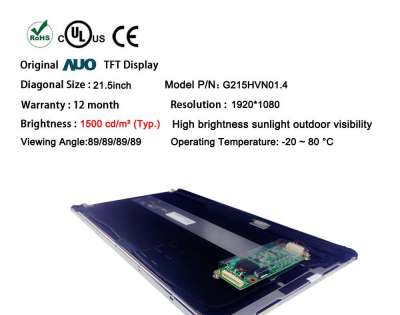

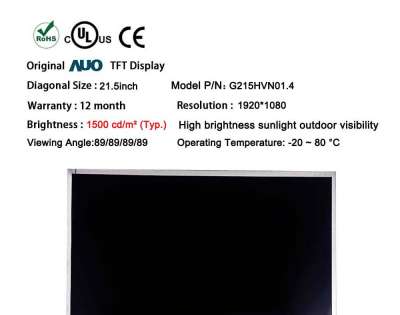

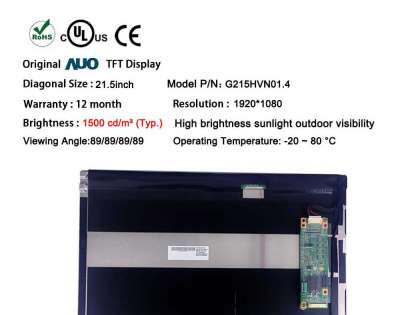

AUO G215HVN01.4 Application Details
Basic Detail : | Manufacturer | AUO | Model Name | G215HVN01.4 |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Panel Size | 21.5 inch | Designed For | Industrial，Outdoor High Brightness |
Maximum Ratings : | OP Temperature | -20 ~ 80 °C | ST Temperature | -20 ~ 80 °C |
Vibration Rating | 1.5G (14.7 m/s²) | RoHS | RoHS |
Features :
| Ultra High Brightness， WLED Backlight，Life>=50K hours,With LED Driver，Reverse I/F,Matte |
2、AUO G215HVN01.4 Optical Details
Basic Information : | Luminance | 1500 cd/m² (Typ.) | Contrast Ratio | 5000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 20/5 (Typ.)(Tr/Td) ms |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | VA, Normally Black, Transmissive |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
3、AUO G215HVN01.4 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H)
| 0.08275×0.24825 mm (H×V) | Pixel Pitch(W×H) | 0.24825×0.24825 mm (H×V) [102PPI] |
Mechanical Size : | Display Area | 476.64×268.11 mm (H×V) | Bezel Area
| 479.84×271.31 mm (H×V) |
Outline Dim. | 495.6×292.2 mm (H×V) | Outline Depth | 8.36/24.05 (Typ./Max.) mm |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
Aspect Ratio | 16:9 (H:V) | Shape Style |
|
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
Other Features : | Weight | 1.60±0.16Kgs | Surface | Antiglare, Hard coating (3H) |
4、AUO G215HVN01.4 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5、AUO G215HVN01.4 Backlight Details
Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
Replacement | - | Amount | - | Position | Edge light type (Top and Bottom) |
Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
Interface Detail : | Brand | Model
| Pin Pitch | Pins | Amount | Configuration |
CviLux | CI0110M1HR0-NH
| 2.0 mm | 10 pins | 1 pcs |
|
Driver Electrical : | Voltage Input | 12.0±0.2V |
| Current Input | 3.42A (Typ.) |
Consumption | 41.04W (Typ.) |
6、AUO G215HVN01.4 Interface Details
Signal Systerm :
| LVDS (2 ch, 8-bit) | Logic Voltage | - |
|
Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.7/0.8A (Typ./Max.) |
Consumption | 3.5/4.4W (Typ./Max.) |
Interface Features : | Type | Connector | Position | Down left of panel |
Connector Detail : | Brand | Model
| Pin Pitch | Pins | Amount
| Configuration |
JAE | FI-XB30SRL-HF11
| 1.0 mm
| 30 pins | 1 pcs | LVDS-30P2C8B-160A
|
|
|
|
|
|
|
|
|
|
|
7、AUO G215HVN01.4 Carton Details
Box Type | Pcs/Box | Package L*W*H (mm) | G.W (kgs) |
7 | 602×372×367 | 30.90 |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G215HVN01.4. Please include your application and required quantity so we can confirm the applicable revision.
