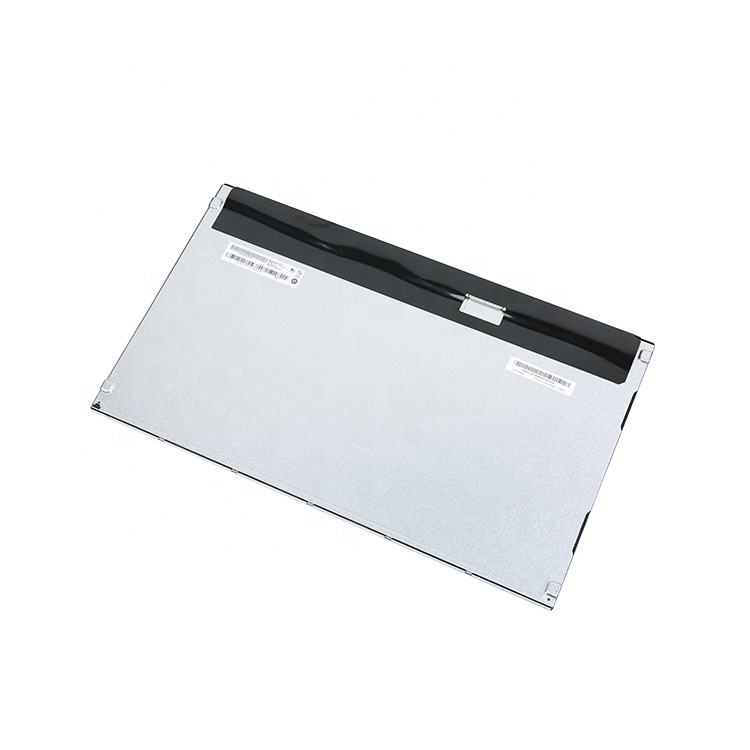

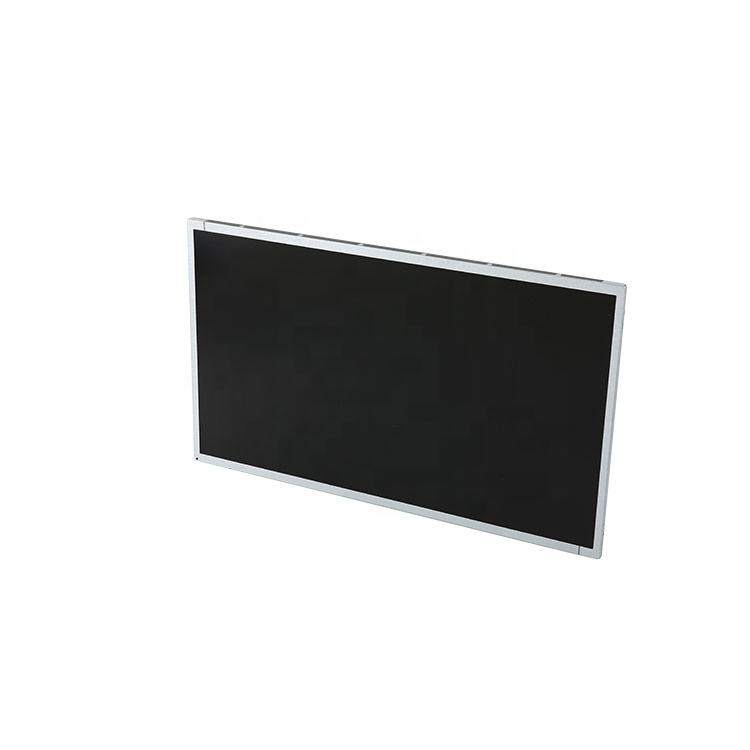

P215HVN01.0 21.5" FHD LCD Display Module - 3000:1 High Contrast Ratio

  • P215HVN01.0 21.5" FHD LCD Display Module - 3000:1 High Contrast Ratio
  • P215HVN01.0 21.5" FHD LCD Display Module - 3000:1 High Contrast Ratio
  • P215HVN01.0 21.5" FHD LCD Display Module - 3000:1 High Contrast Ratio
  • Model:P215HVN01.0
  • Brand:AUO
  • Size:21.5inch
  • Resolution:1920×1080
  • Brightness:300 cd/m²
  • Perspective:89/89/89/89 (Typ.)(CR≥10)
  • Interface:LVDS
  • Operating Temp.:-10 ~ 50 °C
  • Production State:Discontinued
  • Request a Quote
  • Technical Parameters
  • AUO P215HVN01.0 Application Details

    Basic Detail :ManufacturerAUOModel NameP215HVN01.0
    Panel Typea-Si TFT-LCD , LCM
    Panel Size21.5 inchDesigned ForAigital  Signage
    Maximum Ratings :OP Temperature-10 ~ 50  °CST Temperature-20 ~ 60  °C
    Vibration Level

    1.5G (14.7 m/s²)

    RoHSRoHS
    Features :Landscape/Portrait,WLED Backlight,Upside I/F,Matte


    AUO P215HVN01.0 Optical Details

    Basic Information :Luminance300  cd/m² (Typ.)Contrast Ratio3000 : 1 (Typ.) (Transmissive)
    Good View atSymmetryResponse Speed13/5 (Typ.)(Tr/Td) (ms)
    Viewing Angle89/89/89/89  (Typ.)(CR≥10)

    Operating ModeVA, Normally Black, Transmissive
    Color Performance :Chromaticity

    Wx:0.313; Wy:0.329Support Color16.7M (8-bit)
    Color Temperature6485KWhite Uniformity1.25/1.33 (Typ./Max.)(9 points)

    1931 Color Gamlt :NTSC Ratio74%

    sRGB96% coverage
    Adobe RGB74% coverageDCI-P377% coverage
    Rec.202055% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    AUO P215HVN01.0 Mechanical Details

    Pixel Features :Number of Pixel1920(RGB)*1080 [FHD]ArrangementRGB Vertical Stripe
    Dot Pitch(W*H)0.08275*0.24825 mm

    Pixel Pitch(W*H)0.24825*0.24825 mm  [102PPI]
    Physical Size :Active Viewing476.64(W)*268.11(H) mmOverall Dim.495.6(W)*292.2(H) mm
    Bezel Opening479.8(W)*271.31(H) mmOverall Depth7.4/11.0 (Typ./Max.) mm
    Outline Features :Form ShapeFlat RectangleOrientationLandscape / Portrait
    Aspect Ratio(W:H)16:9Shape Style
    Fixation :Side mounting holes (4-M3) on left, right bezel
    Other Detail :Mass1.67Kgs (Typ.)SurfaceAntiglare, Hard coating (3H)


    AUO P215HVN01.0 Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :No
    Power Consumption :15.2W (Typ.)


    AUO P215HVN01.0 Interface Details

    Signal Electrical :Input Current0.62/0.74A (Typ./Max.)Input Voltage5.0V (Typ.)
    Consumption3.1/3.7W (Typ./max.)

    Signal InterfaceLVDS (2 ch, 8-bit)
    Interface Features :Position

    Upper right of panelPhysical TypeConnector
    Signal Interface :

    BrandModelAmountPin PitchPin AmountPin Assignment
    P-TWOAL230F-A0G1D-P1 pcs1.0 mm30 pinsLVDS-30P2C8B-160A


    AUO P215HVN01.0 Lightting Details

    Lamp Features:Lamp Shape4 stringsLamp TypeWLEDPositionEdge light type (Bottom side)
    Exchange-Amount15S4PLife30K(Min.) (Hours)
    Lamp Electrical :Input Current65/72mA (Typ./Max.)Input Voltage46.5/51V (Typ./Max.)
    Consumption12.1/13.3W (Typ./Max.)
    Interface Features :PositionDown left cornerPhysical TypeConnector
    Interface Detail :BrandModelAmountPin PitchPin AmountPin Assignment
    E&T3707K-S06N-21R1 pcs1.0 mm6 pinsBLE-6PINS-CCAACC
    Backlight Driver :No


     AUO P215HVN01.0 Packing Details

    Package Box :

    AmountSize (L*W*H)Weight
    11 pcs / box406*281*651 mm22.1Kgs (Typ.)
