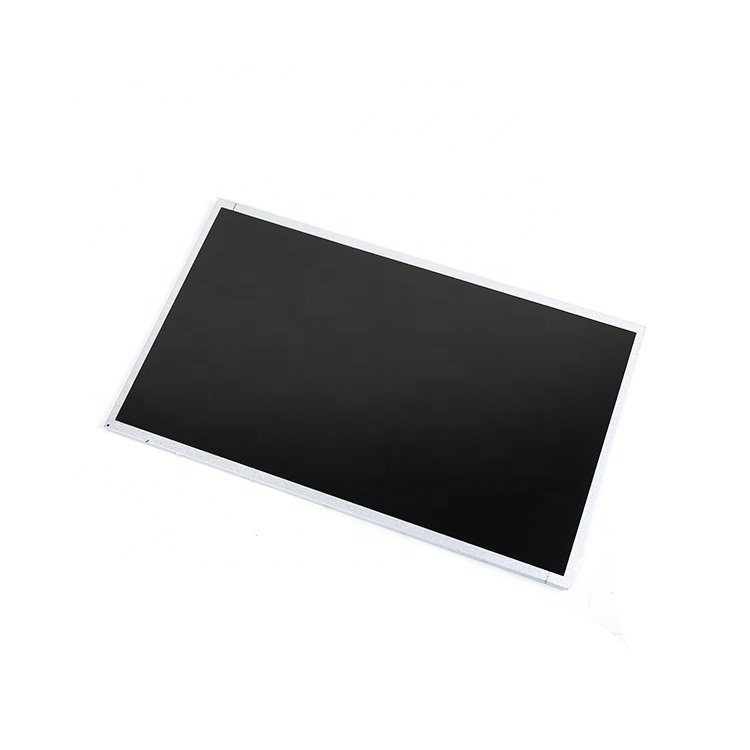

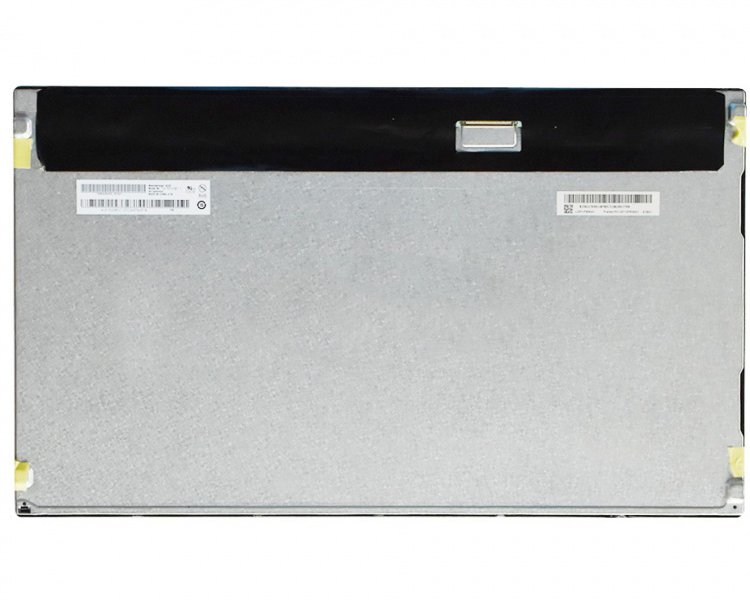

AUO P215HVN01.2 Application Details
| Basic Information : | Brand | AUO | Model | P215HVN01.2 |
| Type | a-Si TFT-LCD , LCM | Used For | Digital Signage |
| Screen Size | 21.5 inch | Storage Temp. | |
Environment :
| Operating Temp. | 0 ~ 50 °C | | -20 ~ 60°C |
| RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) |
| Typical Features : | WLED Backlight，Upside I/F, Matte |
AUO P215HVN01.2 Mechanical Details
| Pixel Features : | Resolution | 1920(RGB)*1080, FHD | Dot Pitch(mm) | 0.08275*0.24825 (H*V) |
Pixel Format
R | RGB Vertical Stripe | Pixel Pitch(mm) | 0.24825*0.24825 (H*V) [102PPI] |
Mechanical Size :
| Active Viewing (mm) | 476.64(H) *268.11(V) |
Bezel Area(mm) | 479.84(H) *271.31(V) |
| Outline Dim.(mm) | 495.6(H) * 292.2(V) | Depth(mm) | 7.4/11 (Typ./Max.) |
Outline Features :
| Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Fixation : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight | 1.67Kgs (Typ.) | Treatment | Antiglare, Hard coating (3H) |
AUO P215HVN01.2 Optical Details
| Basic Information : | Luminance(cd/m² ) | 250 (Typ.) | Contrast Ratio | 3000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | VA, Normally Black, Transmissive |
| Best View on | Symmetry | Response(ms) | 13/5 (Typ.)(Tr/Td) |
| Color Performance : | White Coordinate
|
Wx:0.313; Wy:0.329 | Display Colors | 16.7M (8-bit) |
Color Temperature
| 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 94% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 77% coverage |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO P215HVN01.2 Electronics Details
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption: | 14.3W (Typ.) |
AUO P215HVN01.2 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.62/0.74A (Typ./Max.) |
| Consumption | 3.1/3.7W (Typ./Max.) | | |
| Signal Type : | LVDS (2 ch, 8-bit) | Logic Voltage | - |
| Interface Features : | Position | Upper right of panel | | Type | Connector |
Interface Detail :
| Brand | Model | Pitch | Pins | Quantity | Pin Assignment |
| P-TWO | AL230F-A0G1D-P | 1.0mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A |
AUO P215HVN01.2 Backlight Details
| Backlight Features : | Type | WLED | Quantity | 15S4P | Position | - |
| Replacement | - | Shape | 4 strings | Life Time | 30K(Min.) Hours |
| Lamp Electrical : | Voltage Supply | 46.5/51V (Typ./Max.) | Current Supply | 60/66mA (Typ./Max.) |
| Consumption | 11.2W (Typ.) |
| Interface Features : | Position | Down left corner | Type | Connector | Backlight Driver : | No |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| E&T | 3707K-S06N-21R |
1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC |
AUO P215HVN01.2 Packing Details
| Package Box : | Quantity | Weight | Box Size (L*W*H) |
| 13pcs / box | 24 Kgs (Max.) | 565*345*375 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for P215HVN01.2. Please include your application and required quantity so we can confirm the applicable revision.
