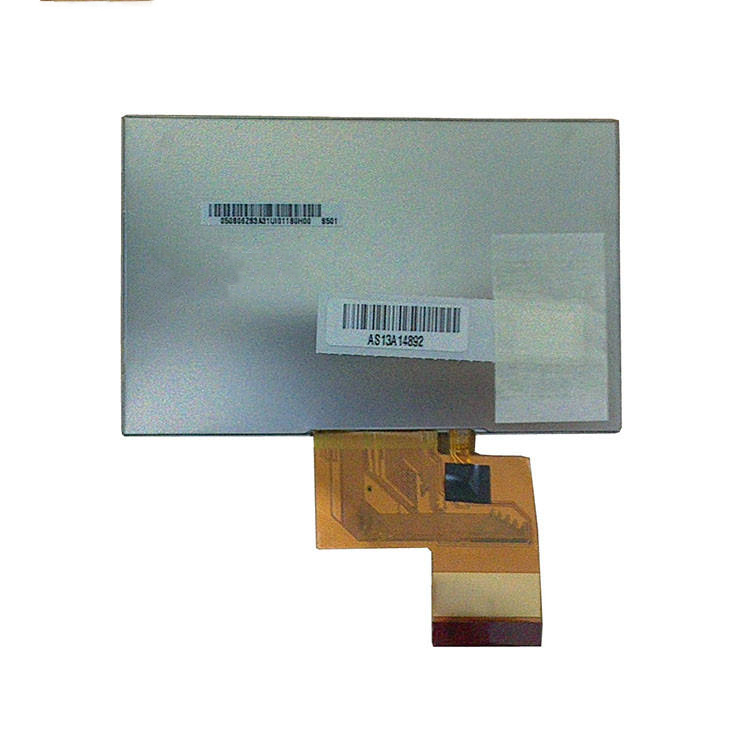

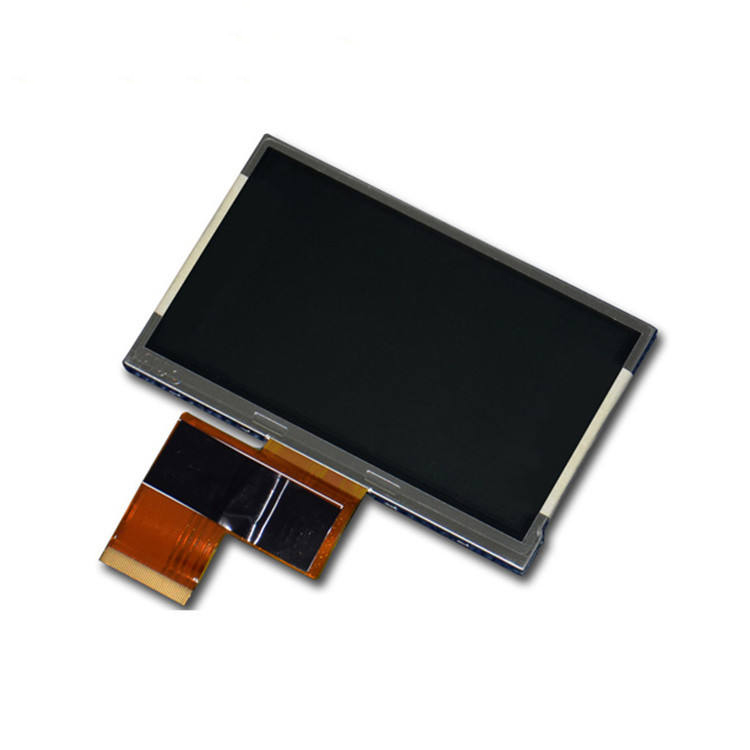

AUO G043FTT01.0 4.3-inch 480×272 TFT-LCD with Touch-Panel Surface

  • AUO G043FTT01.0 4.3-inch 480×272 TFT-LCD with Touch-Panel Surface
  • AUO G043FTT01.0 4.3-inch 480×272 TFT-LCD with Touch-Panel Surface
  • Model:G043FTT01.0
  • Brand:AUO
  • Size:4.3 inch
  • Resolution:480*272
  • Brightness:400 cd/m² (Typ.); 320 cd/m² (Min.)
  • Perspective:65/65/50/55 (Typ., left/right/up/down; CR≥10)
  • Interface:RGB
  • Operating Temp.:0 ~ 70 °C
  • Production State:Discontinued
  • Request a Quote
  • Technical Parameters
  • AUO G043FTT01.0 4.3-inch WQVGA TFT-LCD Module Specifications

    AUO G043FTT01.0 is a 4.3-inch 480 × 272 WQVGA TFT-LCD module with an RGB stripe, normally-white display mode, and a touch-panel surface specified with hard coating, AG haze 8%, and 3H hardness. The AUO specification, Version 1.2, lists 400 cd/m² typical luminance (320 cd/m² minimum) and a 0 to +70 °C operating range. Confirm the complete module label, touch electrical interface, and revision before design approval.

    Key specifications

    ParameterG043FTT01.0 specificationPDF page
    Manufacturer / modelAU Optronics / G043FTT01.01, 3
    Diagonal / resolution4.3 inches; 480 (RGB) × 272 pixels; RGB stripe3
    Display modeNormally white3
    Luminance400 cd/m² typical; 320 cd/m² minimum11
    Contrast ratio400:1 typical; 300:1 minimum, at optimized viewing angle11
    Viewing angle65/65/50/55 (typical, left/right/up/down; CR ≥ 10)11
    Viewing / gray-inversion direction6 o'clock gray-inversion direction3
    Response timeRise 15 ms maximum; fall 20 ms maximum11
    Touch-panel surfaceHard coating; AG haze 8%; 3H3
    Active area95.04 × 53.856 mm3
    Outline dimensions105.5 × 67.2 × 4.13 mm; excludes backlight cable and FPC3
    Color depth16.7 million colors3
    Operating temperature0 to +70 °C3
    Storage temperature−30 to +80 °C3
    Weight59 g3

    Selection and integration notes


    Use 400 cd/m² as the typical luminance and 320 cd/m² as the minimum. The contrast-ratio limits are 400:1 typical and 300:1 minimum.


    The specification identifies the display resolution and optical characteristics, but confirm the supplied module's full signal pin assignment, power requirements, timing, and cable orientation from the applicable interface pages and drawing.


    The specification lists the touch-panel surface treatment, but the surface-treatment entry alone does not define the touch controller, electrical signaling, or host connection. Confirm the complete touch assembly and interface before designing the host.


    Check the 6 o'clock gray-inversion direction, the 105.5 × 67.2 × 4.13 mm outline, mounting, and cable/FPC clearance against the mechanical drawing.


    The Version 1.2 specification does not establish current production, inventory, or lead time. Confirm current availability and the applicable revision with the supplier.

    Frequently asked questions

    What resolution does the AUO G043FTT01.0 use?

    It uses a 480 × 272 WQVGA pixel matrix with an RGB stripe.

    Is 400 cd/m² the minimum brightness?

    No. The specification gives 400 cd/m² as typical and 320 cd/m² as the minimum.

    What are the contrast ratio and viewing angle?

    The contrast ratio is 400:1 typical and 300:1 minimum at the optimized viewing angle. The typical viewing angles are 65/65/50/55 for left/right/up/down at CR ≥ 10.

    Does the specification confirm the touch interface?

    It lists a touch-panel surface treatment of hard coating, AG haze 8%, and 3H hardness. Confirm the touch controller, electrical signaling, and connection details for the actual assembly before integration.

    What are the operating and storage temperature ranges?

    The operating range is 0 to +70 °C. The storage range is −30 to +80 °C.

    Can it directly replace another 4.3-inch 480 × 272 display?

    Not from size and resolution alone. Compare the complete model and revision, outline and mounting, signal pinout, timing, power, cable orientation, and touch interface before approving a replacement.

    Specification basis: AU Optronics, G043FTT01.0 Product Specification, Version 1.2. Page references above use the printed page numbers in the supplied PDF. Request the current applicable specification and mechanical drawing before design approval.
