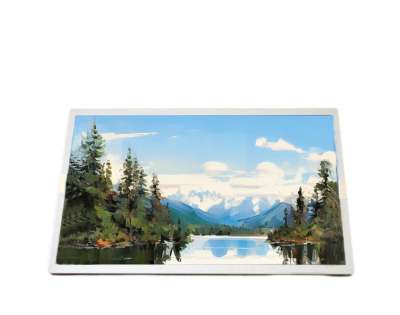

1、AUO G057QAN01.1 Application Details
Basic Info : | Panel Brand | AUO | Panel Model | G057QAN01.1 |
Diagonal Size | 5.7" | Application | Industrial | |
Panel Type | a-Si TFT-LCD , LCM | |||
Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -30 ~ 85 °C |
RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
Specific Features : | Wide Temperature,Hight Brightness,WLED Backlight,Life≥50K hours,With LED Driver,U/D,L/R Reverse,Matte | |||
2、AUO G057QAN01.1 Mechanical Details
Pixel Features : | Pixel Format | 320(RGB)×240, QVGA | Dot Pitch | 0.12×0.36 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.36×0.36 mm (H×V) [70PPI] | |
Mechanical Size : | Display Area | 115.2×86.4 mm (H×V) | Bezel Area | 118.2×86.4 mm (H×V) |
Outline Dim. | 144×104.6 mm (H×V) | Outline Depth | 12.8 (Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | - |
Aspect Ratio | 4:3 (H:V) | Shape Style | - | |
Holes & Brackets : | Rear mounting holes | |||
Other Features : | Weight | 150/165g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
3、AUO G057QAN01.1 Optical Details
Basic Information : | Brightness | 800 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | VAHVA, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 15/10 (Typ.)(Tr/Td) ms | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
Color Temperature | 6485K | Uniformity | - |
4、AUO G057QAN01.1 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
Power Consumption : | 2.21W (Typ.) |
5、AUO G057QAN01.1acklight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) (Hours) | |||||
Replacement | - | Lamp Shape | - | Position | Edge light type | ||||||
Lamp Electrical : | Voltage Input | 22.4/23.6/24.8V (Min./Typ./Max.) | Current Input | 80mA (Typ.) | |||||||
Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver | |||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||
CviLux | CI1106M1HR0-NH | 1.0 mm | 6pins | 1pcs | |||||||
Driver Electrical : | Voltage Input | 9.0/12.0/20.0V (Min./Typ./Max.) | Current Input | 0.15/0.16A (Typ./Max.) | |||||||
Consumption | 2.12/2.23W (Typ./Max.) | ||||||||||
6、AUO G057QAN01.1 Interface Detail
Signal Systerm : | CMOS (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 27/30mA (Typ./Max.) | ||||
Consumption | 0.09/0.10W (Typ./Max.) | |||||||
Interface Features : | Type | Connector | Position | - | ||||
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | ||
STARCONN | 089H33-000100-G2-R | 0.5 mm | 33 pins | 1 pcs | ||||
7、AUO G057QAN01.1Carton Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 60 | 1 | 520×340×250 | 12.95 | 0.0442 |
