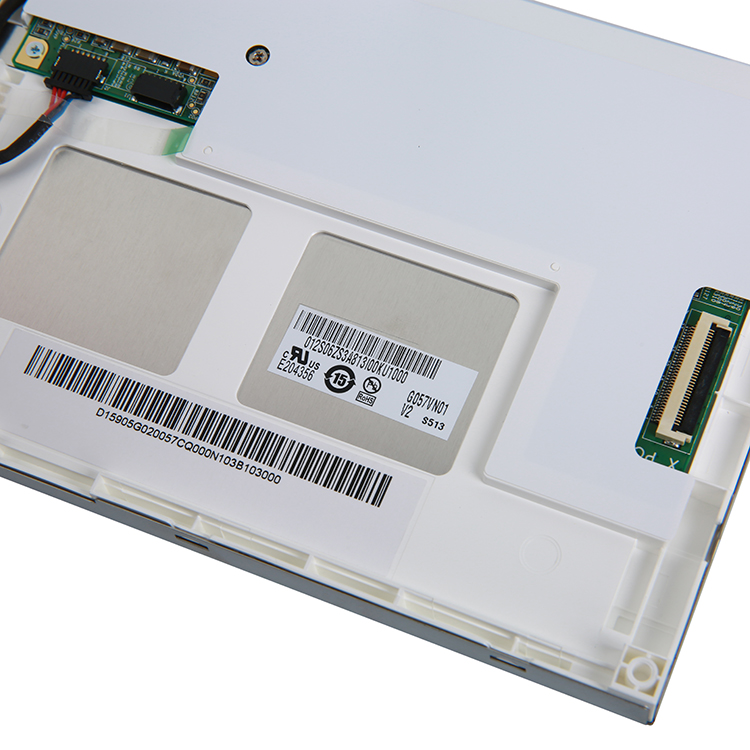

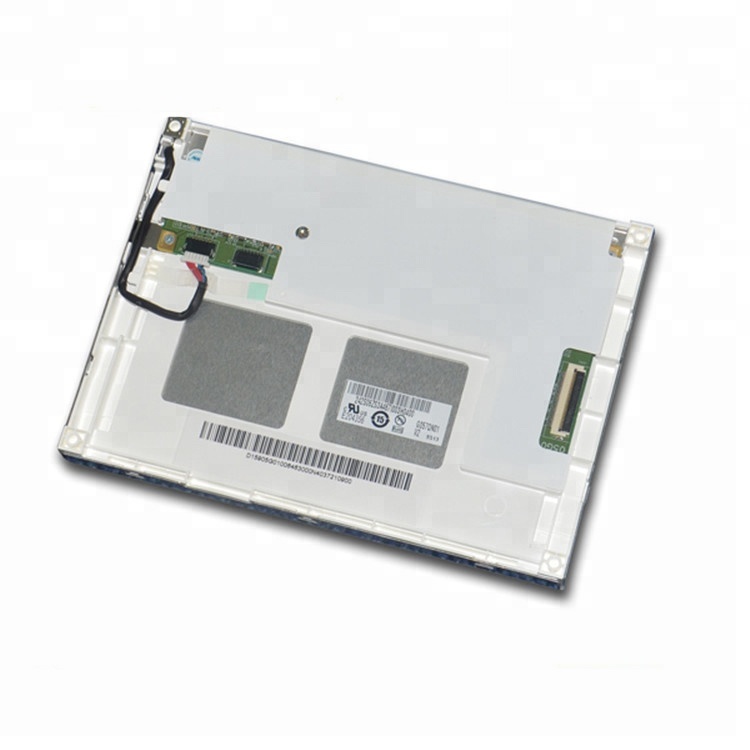

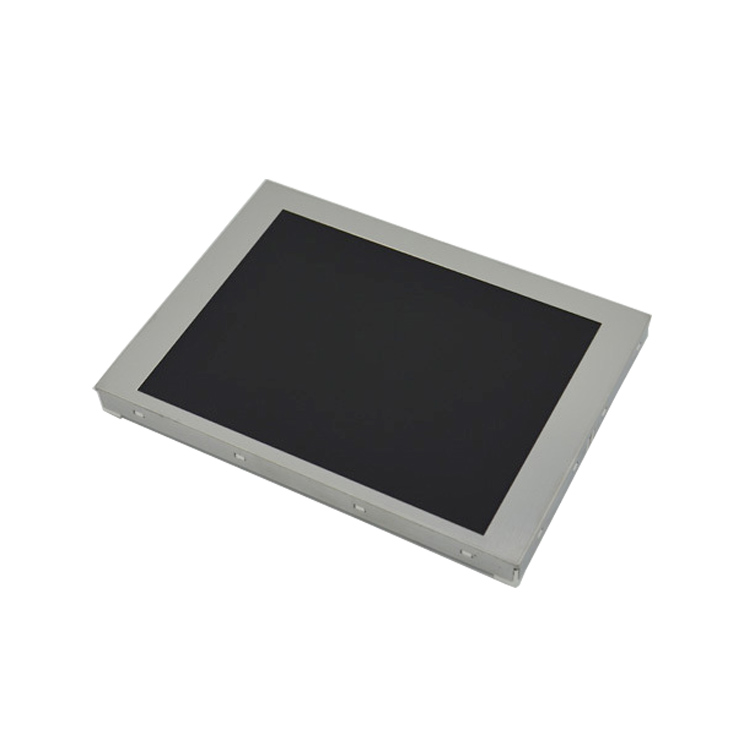

AUO G057VN01 V2 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G057VN01 V2 |
| Panel Type | a-Si TFT-LCD , LCM | |||
| Panel Size | 5.7inch | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -30~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature,Hight Brightness,Lamp Repaceable,Life>=50K hours,With LED Driver,U/D/L/R Reverse,WLED Backlight,Matte | |||
AUO G057VN01 V2 Optical Details
| Basic Information : | Luminance | 700cd/cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 15/10 (Typ.)(Tr/Td) | |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Variation | 1.30 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO G057VN01 V2 Mechanical Details
| Pixel Features : | Number of Pixel | 640(RGB)*480 [VGA] | Arrangement | RGB Vertical Stripe | |||
| Dot Pitch(W×H) | 0.060*0.180 mm | Pixel Pitch(W×H) | 0.180*0.180 mm [141PPI] | ||||
| Physical Size : | Active Viewing(mm) | 115.2(H) * 86.4(V) | Outline Dim.(mm) | 144(H) * 104.6(V) | |||
| Bezel Opening(mm) | 118.2(H) * 89.4(V) | Overall Depth(mm) | 12.3/12.8 (Typ./Max.) | ||||
| Outline Features : | Form Style | Flat Rectangle | Shape Style | ||||
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | ||||
| Mounting : | Rear mounting holes (4-Φ2.6) | ||||||
| Other Detail : | Weight | 150/165g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) | |||
AUO G057VN01 V2 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Total Consumption : | 3.74W (Typ.) |
AUO G057VN01 V2 Interface Detail
| Signal Electrical : | Input Current | 140/155mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
| Consumption | 0.5/0.55W (Typ./Max.) | Signal Interface | CMOS (1 ch, 6-bit) | |||
| Logic Voltage : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| STARCONN | 089H33-000100-G2-R | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-010A | |
AUO G057VN01 V2 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | ||||||||||
| Exchange | Replaceable | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | |||||||||||
| Lamp Electrical : | Input Voltage | 35/40V (Typ./Max.) | Current Supply | 80mA (Typ.) | ||||||||||||
| Consumption | 2.8/3.2W (Typ./Max.) | |||||||||||||||
| Interface Features : | Position | - | Type | Connector | ||||||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | ||||||||||
| JST | SM06B-SRKS-G-TB | 1.0 mm | 6 pins | 1 pcs | ||||||||||||
| Backlight Driver : | With LED Driver | |||||||||||||||
| Driver Electrical : | Voltage Supply | 9.0/12.0/20.0V (Min./Typ./Max.) | Current Supply | 0.27/0.97A (Typ./Max.) | ||||||||||||
| Consumption | 3.24/3.56W (Typ./Max.) | |||||||||||||||
AUO G057VN01 V2 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 60pcs / box | 12.95 Kgs | 520*340*250 mm (L*W*H) |
Contact us to request the current datasheet and mechanical drawing for G057VN01 V2. Please include your application and required quantity so we can confirm the applicable revision.
