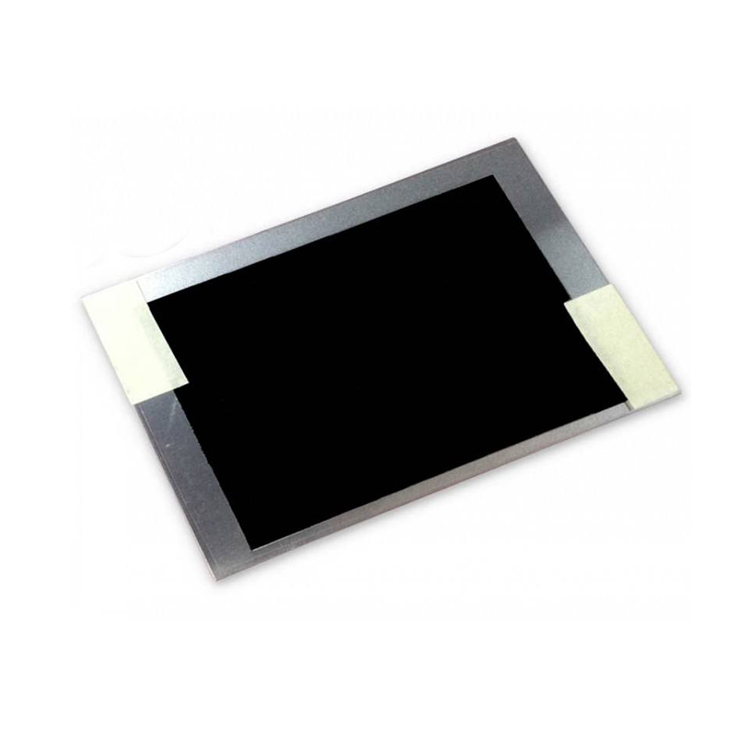

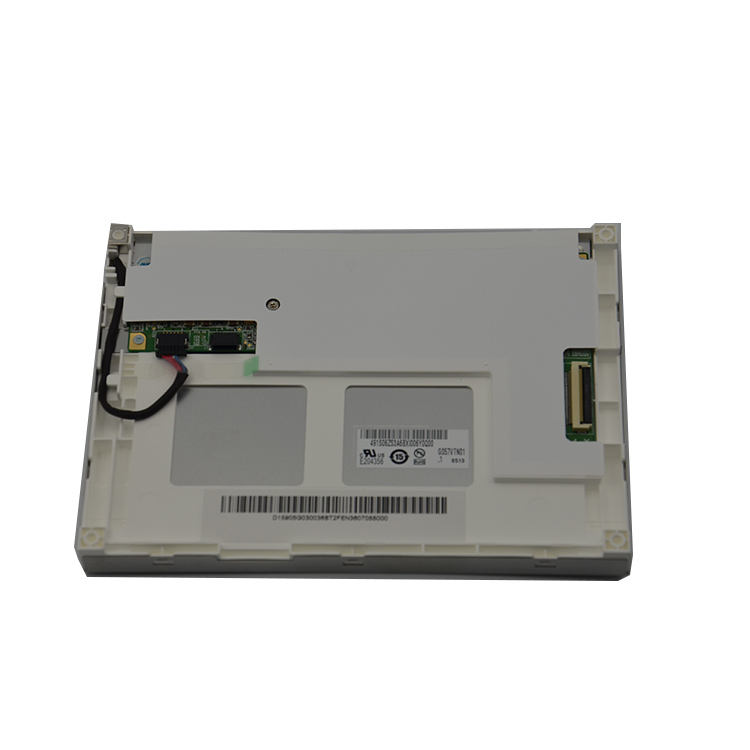

AUO 5.7inch G057VTN01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G057VTN01.1 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G057VTN01 V1 |
| Panel Size | 5.7inch | Designed For | Industrial |
| Maximum Ratings : | OP Temperature | -30~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Wide Temperature，Hight Brightness, Life>=50K hours,With LED Driver,U/D/L/R Reverse，WLED Backlight，Matte |
AUO 5.7inch G057VTN01.1 Optical Details
| Basic Information : | Luminance | 550cd/m²(Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 15/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Variation | 1.33 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 68% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO 5.7inch G057VTN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 640(RGB)*480 [VGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.060*0.180 mm | Pixel Pitch(W×H) | 0.180*0.180 mm [141PPI] |
| Physical Size : | Active Viewing(mm) | 115.2(H) * 86.4(V) | Outline Dim.(mm) | 144(H) * 104.6(V) |
| Bezel Opening(mm) | 118.2(H) *89.4(V) | Overall Depth(mm) | 12.3/12.8 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Rear mounting Pole (4-Ф2.6) |
| Other Detail : | Weight | 150/165g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO 5.7inch G057VTN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Total Consumption : | 2.54W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
AUO 5.7inch G057VTN01.1 Interface Detail
| Signal Electrical : | Input Current | 150/165mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.5/0.55W (Typ./Max.) | Signal Interface | CMOS (1 ch, 6-bit) |
| Logic Voltage : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD |
| Interface Features : | Position
| - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| STARCONN | 089H33-000100-G2-R | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-010A |
AUO 5.7inch G057VTN01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | No | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage | 32/36V (Typ./Max.) | Current Supply | 50mA (Typ.) |
| Consumption | 1.6/1.8W (Typ./Max.) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| JST | SM06B-SRKS-G-TB | 1.0 mm | 6 pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 9.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | 0.17/0.2A (Typ./Max.) |
| Consumption | 2.04/2.45W (Typ./Max.) |
AUO 5.7inch G057VTN01.1 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 60pcs / box | 520*340*250 mm | 12.95 Kgs |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G057VTN01.1. Please include your application and required quantity so we can confirm the applicable revision.
