AUO G065VN01 V2 6.5-inch High-Brightness VGA LCD
G065VN01 V2 is a 6.5-inch industrial TFT-LCD module with 640 x 480 VGA resolution, 800 cd/m2 typical brightness, AHVA normally-black display mode and a 1-channel LVDS interface. The specified panel-surface operating and storage temperature range is -30 to +80 degrees C.
The reviewed document is AUO Display+ Final Specification Ver. 1.0, approved December 12, 2022.
Exact model identification: The current controlled specification identifies the module as G065VN01 V2 with part number 97D06G01.221. This website uses "G065VN01 V221" to distinguish the current .221 implementation from the discontinued legacy .211 part. Confirm the complete part number on the rear label before ordering or approving a replacement.
IC EOL Transition: .211 to .221
AUO Display+ issued an engineering-change notice because the driver ICs used by the legacy 97.06G01.211 part were moving to end of life. The replacement implementation uses part number 97D06G01.221 and was scheduled for phase-in from May 2023.
| Item | Legacy .211 implementation | Current .221 implementation | Review requirement |
|---|
| Gate IC | Novatek NT39207 | Sitronix ST5043DA | Use the correct controlled specification |
| Source IC | Novatek NT39606H-D/3 | Sitronix ST5891DA | Recheck electrical and timing data |
| LED driver IC | Richtek RT8560GQW | Richtek RT4527AGQW | Recheck backlight power and dimming |
| Display mode | TN, normally white | AHVA, normally black | Revalidate optical performance |
| Typical total power | 3.86 W | 2.27 W | Verify power design and sequence |
| Backlight life | 50,000 hours estimated | 70,000 hours typical estimated | Apply the conditions in the applicable specification |
Compatibility boundary: The model family name remains G065VN01 V2, but the EC notice changes ICs, optical and electrical characteristics, backlight driving, power sequence, mechanical details and protection film. Do not mix .211 and .221 specification values. Validate the .221 sample in the final equipment before production approval.
Reviewed Specifications
| Manufacturer / Model | AUO Display+ / G065VN01 V2 | Part number | 97D06G01.221 |
|---|
| Display size | 6.5 inch, 4:3 | Resolution | 640 x 480 (VGA) |
|---|
| Display mode | AHVA, normally black | Colors | 16.7M / 262K (8-bit / 6-bit) |
|---|
| Brightness | 800 cd/m2 typical; 600 cd/m2 minimum | Contrast ratio | 1000:1 typical; 700:1 minimum |
|---|
| Viewing angle | Right/Left/Up/Down 89 degrees typical, 80 degrees minimum (CR 10) | Response time | 15 ms rising + 10 ms falling; 25 ms total typical |
|---|
| Active area | 132.48 x 99.36 mm | Pixel pitch | 0.207 x 0.207 mm |
|---|
| Outline dimensions | 153.0 x 118.0 x 10.9 mm typical | Weight | 170 g typical |
|---|
| Signal interface | 1-channel LVDS, 6/8-bit selectable | Panel logic supply | 3.3 V typical |
|---|
| LVDS connector | STM MSB24013P20 or compatible, 20 pins | Mating connector | Hirose DF19-20S-1C or compatible |
|---|
| Backlight input | 12 V typical; 2.0 W typical | Backlight life | 70,000 hours typical under the stated test conditions |
|---|
| Typical module power | 2.27 W | Surface treatment | Anti-glare, 3H hardness |
|---|
| Operating / storage range | -30 to +80 degrees C, specified as panel-surface temperature |
|---|
Temperature note: The -30 to +80 degrees C values apply to panel-surface temperature. The specification states that optical and display performance is evaluated at 25 degrees C. Validate the finished equipment under its real thermal, optical and environmental conditions.
Electrical and Mechanical Integration

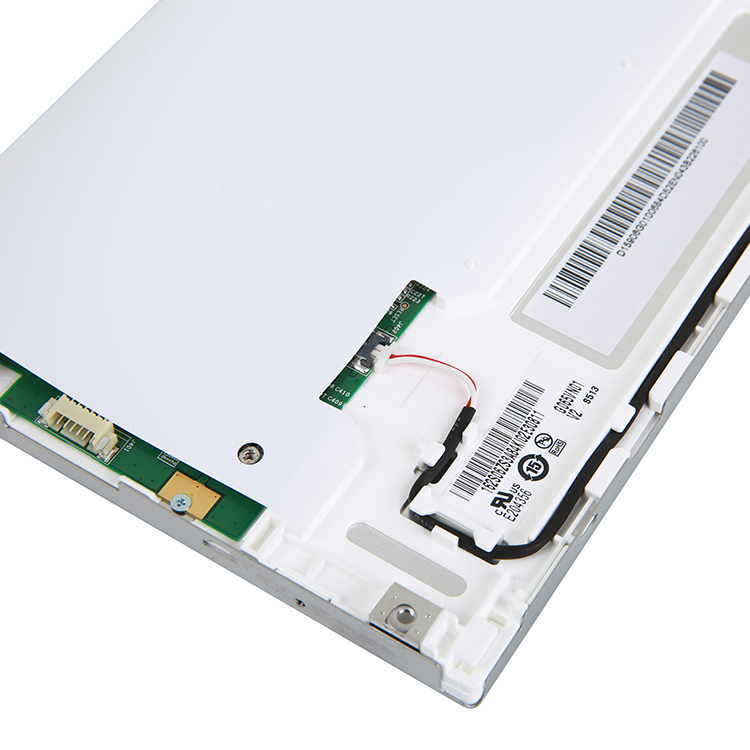

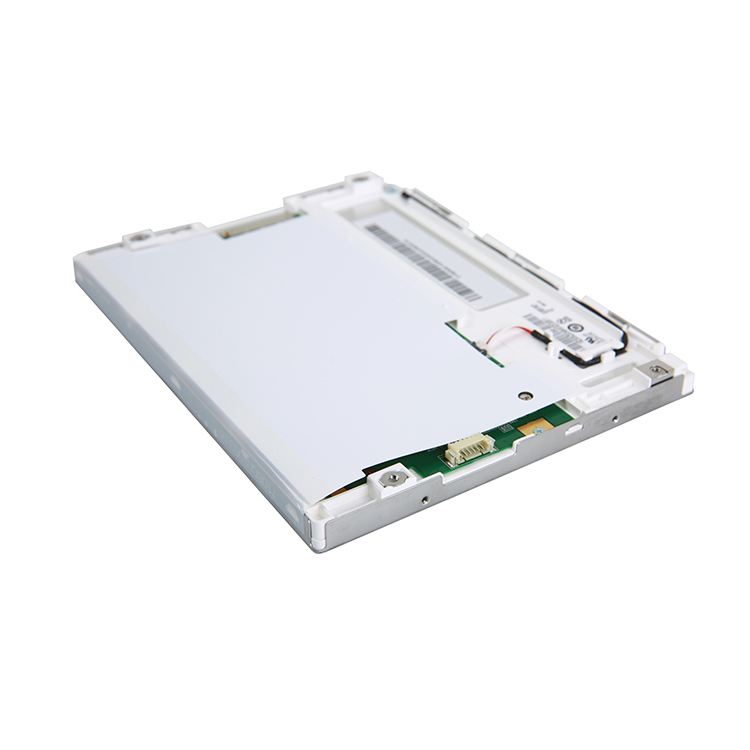

- Confirm G065VN01 V2 and part number 97D06G01.221 on the rear label.

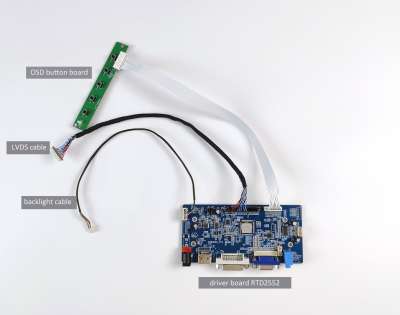

- Verify the 20-pin LVDS connector, complete pin assignment, 6/8-bit selection and DE-mode timing.
- Provide 3.3 V panel logic power and the specified 12 V backlight-driver input.
- Check the 153.0 x 118.0 x 10.9 mm outline, mounting points and connector positions against the latest drawing.
- Apply the documented power-on and power-off sequence before approving the host controller.
- Test brightness, dimming, viewing performance and temperature behavior in the completed assembly.
High-Brightness Application Review
The 800 cd/m2 typical center luminance supports evaluation for high-ambient-light industrial applications. It does not by itself guarantee sunlight readability. Cover glass, optical bonding, surface reflections, enclosure design, dimming settings and ambient illumination all affect system-level visibility.
Do not approve another G065VN01 suffix as a direct replacement based only on diagonal size and resolution. Compare the complete specifications, connector position, pin assignment, timing, voltage, backlight, outline and mounting details, then validate a sample in the final equipment.
Availability and Document Review
Production status, stock, MOQ and lead time can change and are not established by this specification. Request written availability confirmation for the exact revision. Send the rear-label photo, required quantity, destination country, application and required delivery date to market@hzxuhong.com.
Frequently Asked Questions
What is the exact model designation?
The reviewed final specification identifies the module as G065VN01 V2 with part number 97D06G01.221. Confirm both identifiers against the rear label.
Is G065VN01 V221 the same as G065VN01 V2?
G065VN01 V221 is the website designation used to distinguish the current 97D06G01.221 implementation from the discontinued legacy 97.06G01.211 part. Purchasing and engineering records should use the official model G065VN01 V2 together with the full part number.
Is this panel guaranteed to be sunlight readable?
No. The specification lists 800 cd/m2 typical center brightness. Outdoor readability must be tested with the final cover glass, bonding, enclosure and ambient-light conditions.
Does any 20-pin LVDS panel provide a direct replacement?
No. Matching pin count is not enough. Verify pin assignment, voltage, timing, mapping, backlight, dimensions, mounting and optical requirements before testing the replacement in the final equipment.
What information is needed for a quotation or replacement review?
Provide the complete model and part number, clear label photos, quantity, destination, application, required date and any cable, touch or controller requirements.
