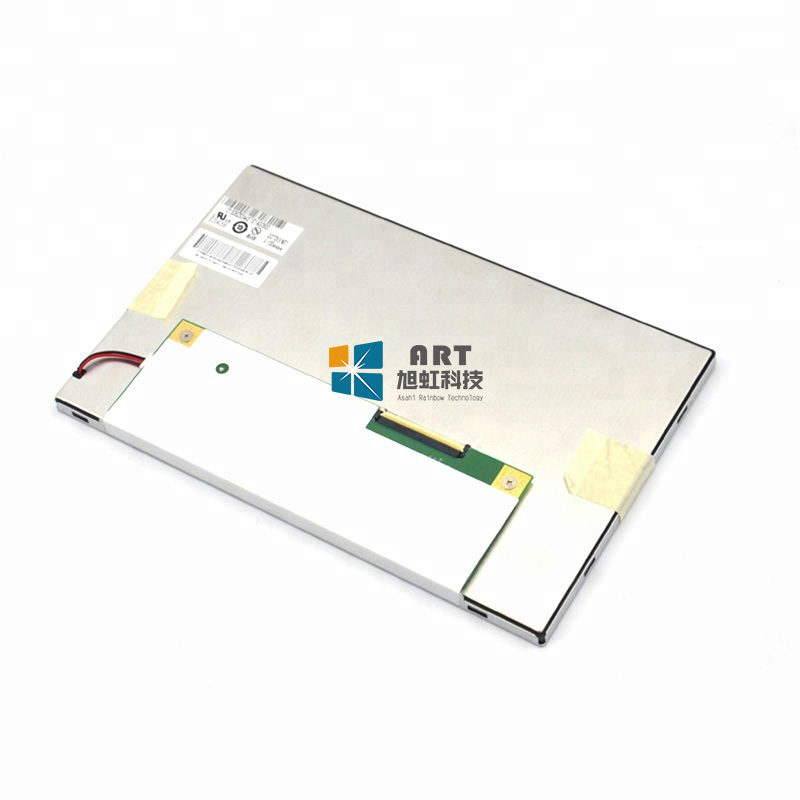

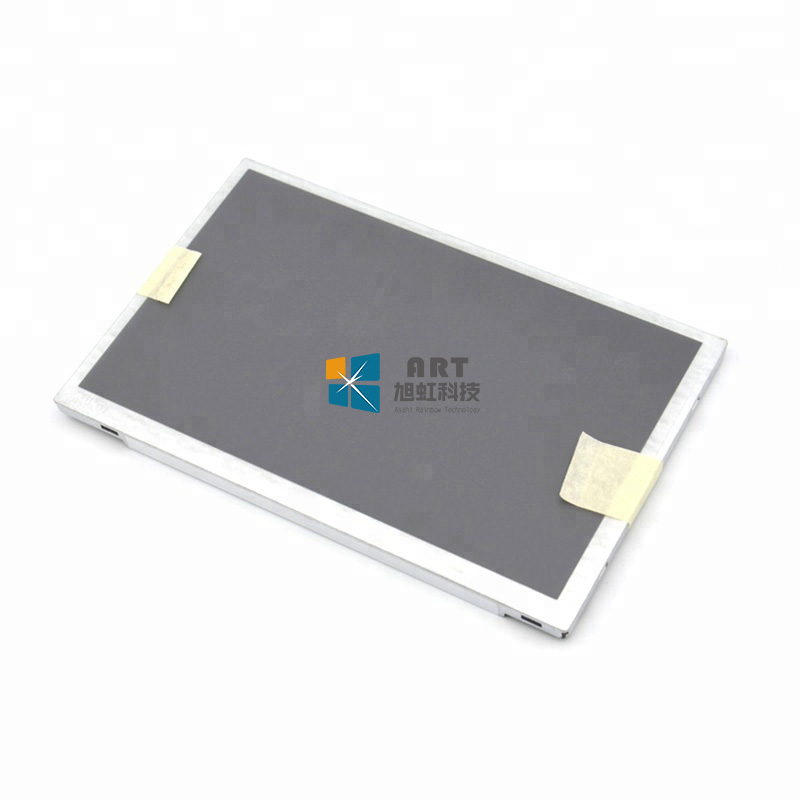

AUO G070VAN01.0 7-inch 480-nit AHVA LVDS TFT-LCD

  • AUO G070VAN01.0 7-inch 480-nit AHVA LVDS TFT-LCD
  • AUO G070VAN01.0 7-inch 480-nit AHVA LVDS TFT-LCD
  • Model:G070VAN01.0 (001)
  • Brand:AUO
  • Size:7.0inch
  • Resolution:800×480
  • Brightness:480 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-30 ~ +80 °C
  • Production State:Availability by Inquiry
  • Request a Quote
  • Technical Parameters
  • AUO G070VAN01.0 7-inch AHVA LVDS TFT-LCD

    AUO G070VAN01.0 is a 7.0-inch AHVA TFT-LCD module with 800 x 480 WVGA resolution, 480 cd/m2 typical center luminance, 1300:1 typical contrast and 89-degree typical viewing angles in all four directions. The reviewed final specification identifies the factory variant as G070VAN01.0 (001).

    The module uses a normally-black transmissive display mode, 1-channel LVDS interface, 3.3 V panel supply and a white-LED backlight. Its specified operating and storage temperature ranges are both -30 to +80 degrees C.

    Exact model identification: Public model G070VAN01.0; reviewed factory variant G070VAN01.0 (001), also shown in the document code as G070VAN01.001. Confirm the rear label before purchasing or replacing a panel, because other G070VAN01 revisions can differ in brightness, connector, pin mapping, outline and backlight requirements.
    Availability notice: The reviewed final specification is dated May 10, 2021. It confirms the technical design but does not prove current production status. Confirm current availability, date code and the latest AUO-controlled specification before ordering.

    Reviewed Product Specifications

    Manufacturer / ModelAUO / G070VAN01.0 (001)TechnologyAHVA, a-Si TFT-LCD
    Panel size7.0 inchResolution800 x 480 (WVGA)
    Active area152.4 x 91.44 mmPixel arrangementRGB horizontal stripe
    Display modeNormally black, transmissiveSurface treatmentAnti-glare
    Brightness480 cd/m2 typical; 380 cd/m2 minimumUniformity80% typical, 9 points
    Contrast ratio1300:1 typical; 1000:1 minimumResponse time20 ms maximum, rise plus fall
    Viewing angleRight/Left/Up/Down 89 degrees typical; 70 degrees minimum (CR 10)Color gamut70% NTSC typical
    Display colors16.7M colorsSignal interface1-channel LVDS, 4 data pairs plus clock
    Signal connector30-pin CHIEF LAND 093G30-00001A-M4Panel supply3.3 V typical
    Module outline166.6 x 107.0 x 10.0 mm maximumWeight175 g +/-10%
    Backlight14 WLEDs, 2 strings x 7 LEDsBacklight life50,000 hours minimum; 70,000 hours typical under specified conditions
    Operating temperature-30 to +80 degrees CStorage temperature-30 to +80 degrees C
    RoHSCompliant according to the reviewed specification

    LVDS and Backlight Integration

    The 30-pin connector carries panel power, ground, a single LVDS channel and the backlight connections. The LVDS link uses four data pairs and one differential clock pair. Panel logic supply is 3.3 V typical.

    • Confirm the connector orientation and complete 30-pin mapping before cable design.
    • Verify the LVDS bit mapping, polarity, clock and 800 x 480 timing in the host controller.
    • Keep input signals low or high-impedance while panel VDD is off.
    • Follow the controlled power-on and power-off sequence; do not hot-plug the module.

    The backlight uses 14 LEDs arranged as two strings of seven. The reviewed guideline specifies 92 mA, 22.4 V typical, 25.2 V maximum and approximately 2.06 W. The LED-driver voltage capacity must exceed the specified maximum.

    Backlight-life conditions: The 50,000-hour minimum and 70,000-hour typical figures are defined at the specified current and 25 degrees C until brightness falls to 50% of its original value. Higher current, temperature or humidity can reduce service life.

    Mechanical and Quality Review

    The display has a 152.4 x 91.44 mm active area within a 166.6 x 107.0 x 10.0 mm maximum outline. Enclosure design must follow the controlled drawing for bezel opening, mounting points, connector clearance and cable routing. Do not twist the module or apply concentrated pressure to the display surface or rear reflector.

    A separate AUO incoming-inspection standard covers the wider 7-inch G070 and A070 series. It uses normal single sampling, inspection level II, with referenced AQL values of 1.0% for major defects and 2.5% for minor defects. These are receiving-inspection references, not electrical performance guarantees and not a substitute for an agreed customer quality contract.

    Engineering Validation Checklist

    1. Confirm the label shows G070VAN01.0 (001) or the corresponding G070VAN01.001 document identity.
    2. Check the 30-pin connector model, orientation and complete pin assignment.
    3. Verify LVDS mapping, data polarity, pixel clock and 800 x 480 timing.
    4. Validate the 3.3 V panel rail and power sequence.
    5. Confirm the two-string backlight driver's current and voltage headroom.
    6. Test optical performance, temperature behavior, EMI and mechanical fit in the final equipment.
    Is G070VAN01.0 an IPS panel?    The AUO specification identifies the technology as AHVA, with a normally-black transmissive mode and wide viewing angles. AHVA is AUO's wide-viewing-angle technology; use AHVA in the technical description instead of labeling the panel generically as IPS.
    Is the brightness 480 or 500 cd/m2?    The reviewed G070VAN01.0 (001) specification states 480 cd/m2 typical center luminance and 380 cd/m2 minimum.
    Is its operating range -20 to +70 degrees C?    No. The display-characteristics and environmental-rating tables specify -30 to +80 degrees C for operation and storage. Some electrical test notes use a narrower test condition, but that does not replace the stated environmental rating.
    Is G070VAN01.0 currently in mass production?    The 2021 specification does not confirm present production status. Availability, lifecycle state and date code should be verified before ordering.
    Procurement or replacement review: Send a clear rear-label photo, required quantity, controller interface and operating environment. Approve compatibility from the latest controlled documents and test the panel in the completed equipment.

Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for G070VAN01.0 (001). Please include your application and required quantity so we can confirm the applicable revision.

Request G070VAN01.0 (001) Datasheet
