AUO G070VAN01.1 7-inch WVGA AHVA LVDS Industrial LCD

  • AUO G070VAN01.1 7-inch WVGA AHVA LVDS Industrial LCD
  • AUO G070VAN01.1 7-inch WVGA AHVA LVDS Industrial LCD
  • Model:G070VAN01.1
  • Brand:AUO
  • Size:7.0inch
  • Resolution:800×480
  • Brightness:200 cd/m² (Typ.)
  • Perspective:85/85/85/85 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:Availability by Inquiry
  • Request a Quote
  • Technical Parameters
  • AUO G070VAN01.1 7-inch WVGA AHVA Industrial LCD

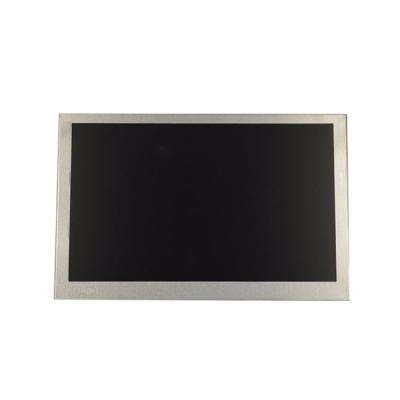

    AUO G070VAN01.1 is a 7.0-inch transmissive TFT-LCD module with 800 x 480 WVGA resolution, AHVA normally-black display mode, 200 cd/m2 typical brightness and wide viewing angles. It uses a 30-pin LVDS connection and supports 6-bit or 8-bit RGB data.

    The information below was reviewed against AUO final specification revision 1.1 dated August 4, 2020. Confirm the currently supplied revision, availability and commercial terms before design approval or purchase.

    Model control: Specify the complete model G070VAN01.1 in engineering and purchasing records. This product is a non-touch LCD module. Do not identify it only as “G070VAN01,” because other revisions can differ in brightness, connector, pin assignment, outline and lifecycle status.

    Reviewed Product Specifications

    Manufacturer / ModelAUO / G070VAN01.1Module typeIndustrial TFT-LCD module, no touch
    Display size7.0 inchActive area152.4 x 91.44 mm
    Resolution800 x 480 (WVGA)Pixel arrangementRGB horizontal stripe
    Display modeAHVA, normally black, transmissivePixel pitch0.1905 x 0.1905 mm
    Brightness200 cd/m2 typicalUniformity70% typical
    Contrast ratio1000:1 minimum, 1300:1 typicalViewing angle85/85/85/85 degrees typical at CR 5
    Response time11 ms rise / 19 ms fall maximumColor gamut60% NTSC typical
    Display colors16.7 million, 24-bitSurfaceAnti-glare
    Outline dimensions166.6 x 107 x 7 mmWeight160 g +/-10%
    Signal interfaceLVDS, 6/8-bit selectablePanel logic supply3.3 V typical
    Signal connectorChief Land 093G30-00001A-M4Connector format30 pins, 1.0 mm pitch
    Backlight14 WLEDs, 2 stringsBacklight life30,000 hours minimum / 50,000 hours typical at 25 degrees C
    Operating temperature-20 to +70 degrees CStorage temperature-30 to +80 degrees C
    ComplianceRoHS compliant
    Availability notice: The specification confirms the technical design but does not establish current production or stock status. Treat G070VAN01.1 as availability by inquiry until AUO supply, specification revision, MOQ and lead time are confirmed in writing.

    Optical Performance

    The AHVA normally-black design provides 85-degree typical viewing angles in all four directions under the specified CR 5 condition. Typical contrast is 1300:1 and center luminance is 200 cd/m2 at the specified 32 mA LED supply current.

    The 200 cd/m2 figure describes panel performance under controlled measurement conditions. Cover glass, touch sensors, protective films, optical bonding and enclosure design can reduce final-system brightness, so verify readability in the completed equipment.

    LVDS and Power Integration

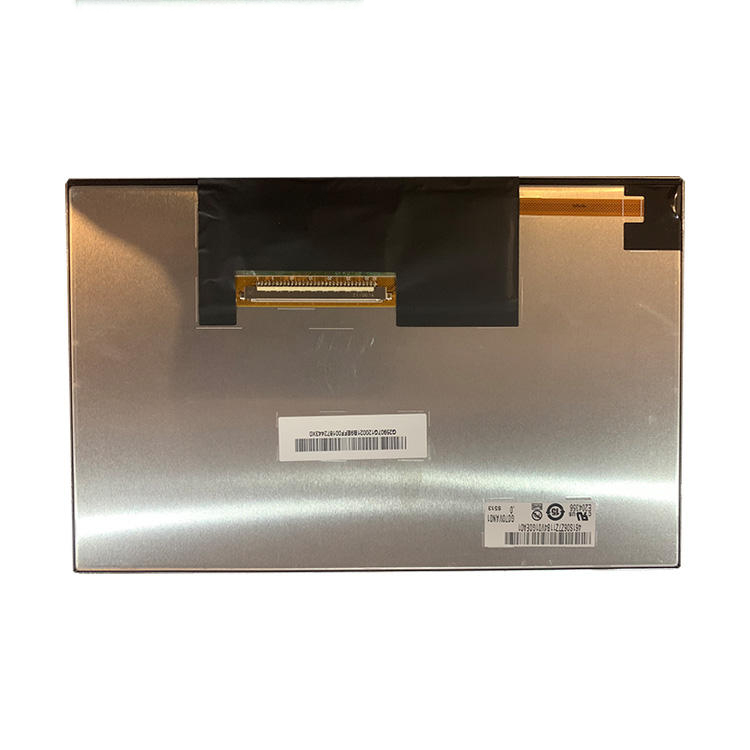

    G070VAN01.1 uses a Chief Land 093G30-00001A-M4 30-pin connector. The connector carries both the 3.3 V panel supply and the LVDS/backlight signals. The module supports 6-bit and 8-bit RGB data selection; the 8-bit mode follows VESA mapping.

    1. Confirm the mating connector, cable orientation and complete pin assignment.
    2. Verify LVDS mapping, bit-depth selection, polarity and 800 x 480 timing.
    3. Provide a stable 3.3 V panel-logic supply and a compatible LED backlight driver.
    4. Follow the specified power-on, power-off and restart timing; the specification requires at least 700 ms before VDD restart.
    5. Disconnect or reconnect the module only while power is off.

    Backlight Requirements

    The backlight uses 14 LEDs arranged as two strings of seven. The reference driving conditions are 32 mA typical LED current, 21 V typical LED voltage and 0.672 W typical LED power at 25 degrees C. The external LED driver must tolerate more than the maximum listed 23.1 V backlight voltage.

    Backlight lifetime is defined as the time until brightness falls to 50% of its initial value. The specification lists 30,000 hours minimum and 50,000 hours typical at 25 degrees C; high current, high temperature or high humidity can reduce operating life.

    Mechanical and Thermal Review

    The module outline is 166.6 x 107 x 7 mm and the active area is 152.4 x 91.44 mm. Use the controlled mechanical drawing—not nominal screen size alone—to verify bezel opening, mounting, cable clearance, connector access and assembly tolerances.

    The specified operating range is -20 to +70 degrees C and the storage range is -30 to +80 degrees C. These panel limits do not certify the completed equipment for any medical, military, marine, outdoor or other regulated application. Validate cold start, hot operation, thermal management and optical performance in the final enclosure.

    Design-in and Replacement Checklist

    • Confirm the complete G070VAN01.1 model and applicable specification revision on the rear label.
    • Check the 166.6 x 107 x 7 mm outline, active area, mounting and connector position.
    • Confirm the 30-pin pinout, LVDS mapping, 6/8-bit selection and 3.3 V logic supply.
    • Design the LED driver for two seven-LED strings and the specified current and voltage range.
    • Validate brightness, color, timing, EMI, thermal behavior and power sequencing in the final system.
    Replacement warning: G070VAN01.1 is not automatically interchangeable with G070VAN01.0, G070VAN01.3, G070VAT01.0 or another 7-inch WVGA panel. Compare the complete connector, pin assignment, LVDS mapping, bit depth, backlight circuit, outline, mounting points, brightness and temperature requirements before sample testing.

    Availability and Document Request

    Current stock, production status, sample availability, MOQ and lead time require written confirmation. For quotation or compatibility review, provide the exact model, rear-label photos, quantity, destination country, application and requested delivery date.

    Browse more AUO industrial LCD panels or view the 7-inch AUO LCD category.

    Frequently Asked Questions

    Does G070VAN01.1 include a touch panel?    No. The reviewed specification describes a TFT-LCD module without an integrated touch panel. A separate touch solution must be selected and mechanically validated if touch input is required.
    Is G070VAN01.1 an IPS display?    AUO identifies the display technology as AHVA. It is a wide-viewing-angle, normally-black technology, but the accurate product description for this model is AHVA.
    Does the module have a built-in LED driver?    The specification defines the LED string electrical requirements. Design the host system with a compatible external LED driver and confirm the exact cable and pin assignment.
    Is G070VAN01.1 currently in mass production?    The reviewed specification does not confirm present-day lifecycle or stock. Obtain written confirmation of current status, supplied revision and delivery schedule before committing a project.
    What information is needed for a quotation?    Send the full model number, rear-label photos, quantity, destination, application, delivery requirement and any cable, touch or controller needs.
    Request the G070VAN01.1 specification, availability check or quotation:
       Email market@hzxuhong.com with your project details.

Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for G070VAN01.1. Please include your application and required quantity so we can confirm the applicable revision.

Request G070VAN01.1 Datasheet

Complete your display assembly

Build a display assembly around your selected LCD panel. Explore touch panels, LCD controller boards and signal or backlight cables.

Touch panels and bonding

Review touch dimensions, host connection, cover glass and bonding requirements.

LCD controller boards

Match the host video output to the panel interface, timing and power requirements.

Signal and backlight cables

Confirm both connector ends, pin mapping, cable length and backlight connections.

We will review the selected panel, controller firmware, cable pinout, power and touch configuration before confirming the proposed assembly. Send your quantity, application, delivery country and required date.

Request a matched display assembly
