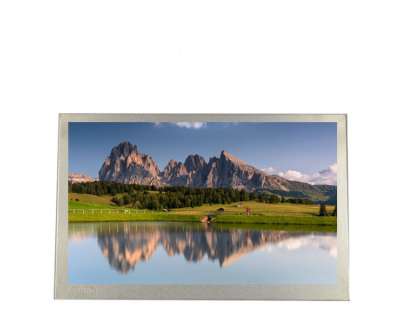

AUO G070VAT01.0 7-inch WVGA AHVA PCAP Touch Display

  • AUO G070VAT01.0 7-inch WVGA AHVA PCAP Touch Display
  • Model:G070VAT01.0
  • Brand:AUO
  • Size:7.0inch
  • Resolution:800*480
  • Brightness:260cd/m2
  • Perspective:89/89/89/89 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-20 to +70 C
  • Production State:Availability by Inquiry
  • Request a Quote
  • Technical Parameters
  • AUO G070VAT01.0 7-inch WVGA AHVA PCAP Touch Display

    AUO G070VAT01.0 is a 7-inch display-and-touch assembly with 800 x 480 WVGA resolution, AHVA normally-black display mode, projected-capacitive touch and a cover lens. It provides 260 cd/m2 typical luminance, 89-degree typical viewing angles in all four directions and a 1-channel LVDS signal interface.

    This integrated module is intended for embedded and industrial HMI projects that require a compact widescreen display with touch input. Electrical, mechanical and touch-controller compatibility must be checked against the latest controlled specification and drawing before design approval.

    Exact model identification: Use the complete model G070VAT01.0 in purchasing and engineering records. Do not confuse it with G070VAN, G070VW or other AUO 7-inch model families; their touch construction, brightness, interface, connector, outline and timing can differ.

    Reviewed Product Specifications

    Manufacturer / ModelAUO / G070VAT01.0Module typeLCD and projected-capacitive touch assembly
    Display size7.0 inchAspect ratio15:9
    Resolution800 x 480 (WVGA)Display modeAHVA, normally black, transmissive
    Brightness260 cd/m2 typicalContrast ratio1000:1 typical
    Viewing angleRight/Left/Up/Down 89 degrees typical (CR 10)Response time11 ms rise / 19 ms fall maximum
    Display colors262K / 16.7M, 6-bit / 6-bit + Hi-FRCFrame rate60 Hz
    Active area152.4 x 91.44 mmPixel pitch0.1905 x 0.1905 mm
    Assembly outline200 x 125 x 11.6 mmOrientationLandscape
    Touch technologyProjected capacitive touchFront constructionCover lens assembly
    Signal interface1-channel LVDS, 6/8-bitPanel logic supply3.3 V typical
    BacklightWLED edge lightBacklight life30,000 hours minimum under specified conditions
    Operating temperature-20 to +70 degrees CStorage temperature-30 to +80 degrees C
    ComplianceRoHS compliant
    Controlled-document notice: This page summarizes the available product record. Connector model, pin assignment, touch-controller interface, cover-lens drawing, power sequence and all tolerance values must be confirmed from the latest AUO-controlled specification and drawing supplied for the exact revision.

    Display and Touch Integration

    G070VAT01.0 combines the LCD, projected-capacitive touch sensor and cover lens as an assembly. This can simplify front-panel integration, but the completed equipment still requires verification of the touch-controller interface, firmware or driver support, USB/I2C connection where applicable, grounding, shielding and cover-lens clearances.

    • Confirm the exact touch-controller part and communication interface for the supplied revision.
    • Check active area, viewing area, cover-lens outline, printing area and mounting details.
    • Validate touch operation with gloves, moisture and electrical noise only when those conditions are part of the project requirement.
    • Verify grounding and EMI behavior in the final enclosure rather than testing the LCD assembly alone.

    LVDS and Backlight Review

    The display signal is 1-channel LVDS with 6/8-bit support and 3.3 V typical panel logic. The WLED backlight is integrated with the assembly, but the signal connector, backlight connection, dimming method and power sequence must be checked against the current pin table.

    1. Verify LVDS mapping, bit depth, polarity and 800 x 480 timing.
    2. Confirm panel and backlight supply rails before applying power.
    3. Follow the specified power-on and power-off sequence.
    4. Do not connect or disconnect the module while powered.
    5. Test luminance, flicker and dimming behavior in the completed equipment.

    Mechanical and Optical Considerations

    The display active area is 152.4 x 91.44 mm, while the touch-and-cover assembly is larger than a bare 7-inch LCD. Use the complete assembly drawing when designing the bezel, enclosure, adhesive, gasket and mounting structure.

    The 260 cd/m2 typical luminance is suitable for evaluation in controlled indoor environments. It should not be described as sunlight readable without system-level testing. Cover-lens reflections, air gap, optical bonding, ambient illumination and backlight settings all affect final readability.

    Temperature and Application Review

    The listed operating range is -20 to +70 degrees C and the listed storage range is -30 to +80 degrees C. These limits do not by themselves certify the finished product for a specific industry. The completed assembly must be tested for thermal behavior, touch performance, condensation risk, vibration, ESD and EMC according to the end equipment's requirements.

    Potential applications include indoor industrial HMI terminals, control panels, test instruments and embedded touch interfaces. Suitability for medical, automotive, outdoor or safety-critical equipment requires separate system qualification and should not be inferred from the panel specification alone.

    Replacement warning: Another 7-inch 800 x 480 display is not automatically compatible. Compare the complete model, assembly outline, cover-lens dimensions, touch interface, LVDS mapping, connector, pin assignment, voltage, timing, backlight and mounting details before testing a replacement.

    Availability and Document Request

    Production status, stock, MOQ and lead time can change and are not guaranteed by this page. Request written confirmation for the exact revision. For quotation or compatibility review, provide the rear-label photo, required quantity, destination country, application, required delivery date and touch-interface requirements.

    Browse more AUO industrial LCD panels or view the 7-inch AUO LCD category.

    Frequently Asked Questions

    Does G070VAT01.0 include a touch panel?    Yes. The available product record identifies an integrated projected-capacitive touch and cover-lens assembly. Confirm the touch-controller and communication interface for the supplied revision.
    What is the display resolution?    The native resolution is 800 x 480 WVGA with a 15:9 aspect ratio.
    Is the interface 1-channel or 2-channel LVDS?    The reviewed product data identifies 1-channel LVDS with 6/8-bit support. Verify the current controlled pin table before connecting the module.
    Is this display sunlight readable?    No sunlight-readability claim is made. The listed luminance is 260 cd/m2 typical, and final readability depends on the cover lens, bonding, reflections and ambient light.
    What information is needed for a quotation?    Send the complete model, label photos, quantity, destination, application, delivery requirement and the host system's display and touch interfaces.
    Request the G070VAT01.0 datasheet, quotation or compatibility review:
       Email market@hzxuhong.com with your project details.

Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for G070VAT01.0. Please include your application and required quantity so we can confirm the applicable revision.

Request G070VAT01.0 Datasheet

Complete your display assembly

Build a display assembly around your selected LCD panel. Explore touch panels, LCD controller boards and signal or backlight cables.

Touch panels and bonding

Review touch dimensions, host connection, cover glass and bonding requirements.

LCD controller boards

Match the host video output to the panel interface, timing and power requirements.

Signal and backlight cables

Confirm both connector ends, pin mapping, cable length and backlight connections.

We will review the selected panel, controller firmware, cable pinout, power and touch configuration before confirming the proposed assembly. Send your quantity, application, delivery country and required date.

Request a matched display assembly
