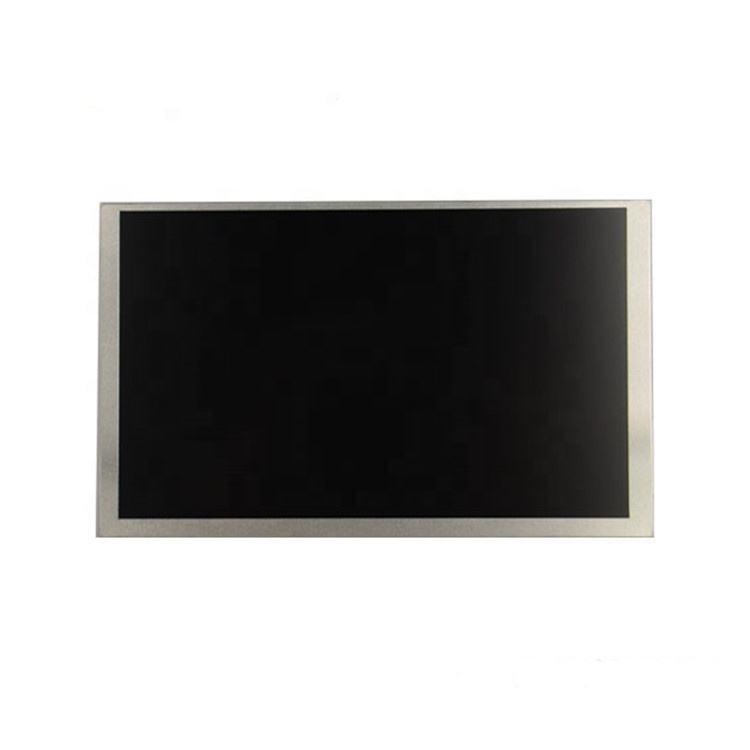

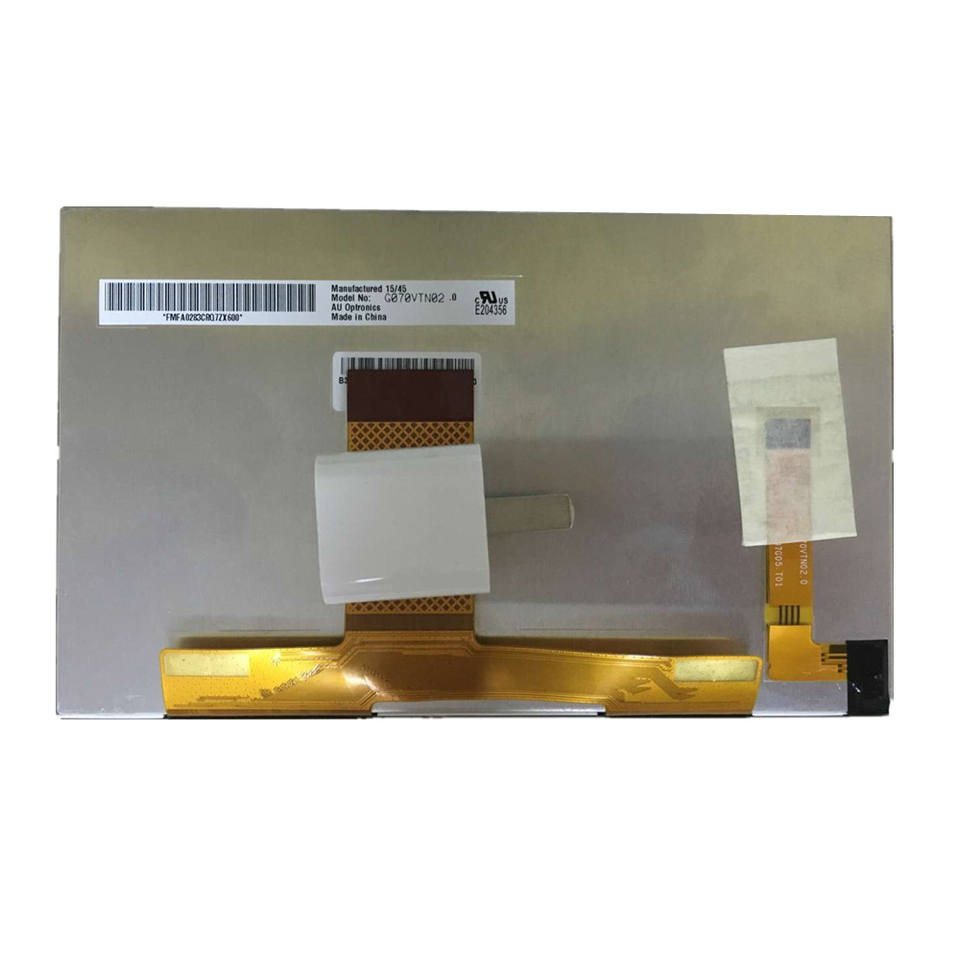

AUO G070VTN02.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G070VTN02.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 7.0inch | Designed For | Industrial ，Outdoor High Brightness，Automotive Display |
| Maximum Ratings : | OP Temperature | -30~ 70 °C | ST Temperature | -40 ~ 95 °C |
| RoHS | RoHS | Vibration Level | 2.9G (28.4 m/s²) |
| Features : | Wide Temperature，3G Vibration，Ultra High Brightness，U/D/L/R Reverse，WLED Backlight，Matte |
AUO G070VTN02.0 Optical Details
| Basic Information : | Luminance | 1500cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.306; Wy:0.328 | Support Color | 262K (6-bit) |
| Color Temperature | 6880K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 66% | sRGB | 88% coverage |
| Adobe RGB | 68% coverage | DCI-P3 | 69% coverage |
| Rec.2020 | 49% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
AUO G070VTN02.0 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*480, WVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0635*0.1905 mm | Pixel Pitch(W*H) | 0.1905*0.1905 mm [133PPI] |
| Physical Size : | Active Viewing(mm) | 152.4(W)*91.44(H) mm | Overall Dim. | 169(W)*103.51(H) mm |
| Bezel Opening | 155.41(W)*94.66(H) mm | Overall Depth(mm) | 6.22±0.3 mm |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type |
| Fixation : | Without |
| Other Detail : | Weight | 157g (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G070VTN02.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Embedded T-CON |
AUO G070VTN02.0 Interface Detail
| Signal Electrical : | Input Current | 11.6/22.2/0.22/0.27mA (Typ.)(IDD/AIDD/IGH/IGL) | Input Voltage | 3.3/11.0/20.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Consumption | 290mW (Typ.) | Signal Interface | Parallel RGB (1 ch, 6-bit) |
| Logic Voltage : | 0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO |
| Interface Features : | Position | - | Physical Type | FPC |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | | 0.5mm | 50 pins | 1 pcs | |
AUO G070VTN02.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Amount | 8S2P | Position | Edge light type |
| Exchange | - | Lamp Shape | 2 strings | Lamp Life | 10K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage | 25.6/27.2V (Typ./Max.) | Input Current | 100mA (Typ.) |
| Consumption | 5.44W (Max.) |
| Interface Features : | Position | - | Type | FPC |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| | | 1.0 mm | 8 pins | 1 pcs | BLE-8PINS-AANCCNNN |
| Backlight Driver : | No |
AUO G070VTN02.0 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 60pcs / box | - | 15 Kgs |
-
