  • AUO G070VW01.012 7-inch 400-nit AHVA Industrial LCD

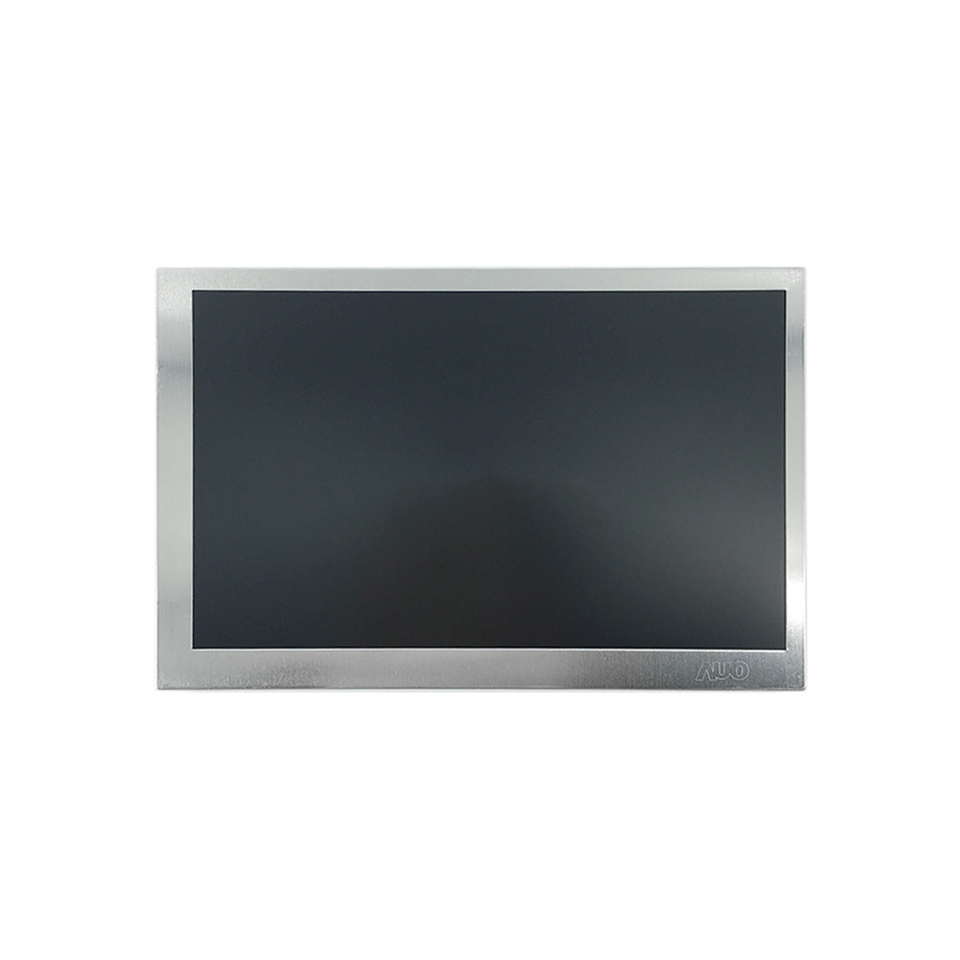

    AUO Display+ G070VW01.012 is a 7.0-inch industrial TFT-LCD module with 800 x 480 WVGA resolution, AHVA normally-black display mode, 400 cd/m2 typical brightness and a -30 to +85 degrees C panel-surface operating range.

    The module includes a timing controller, a 1-channel LVDS interface and an LED backlight driver board. The technical information below was reviewed against final specification version 1.0 dated June 15, 2023.

    Model control: Use the complete model G070VW01.012 on quotations, purchase orders and compatibility checks. The corresponding AUO final specification identifies the underlying document reference as G070VW01.0 with AUO part number 97D07G01.012; retain these references when matching labels and technical documents.

    Reviewed Product Specifications

    Manufacturer / ModelAUO Display+ / G070VW01.012Specification referenceG070VW01.0 / 97D07G01.012
    Module typeIndustrial TFT-LCD module, no touchDisplay size7.0 inch
    Resolution800 x 480 (WVGA)Display modeAHVA, normally black
    Brightness300 cd/m2 minimum, 400 cd/m2 typicalContrast ratio700:1 minimum, 1000:1 typical
    Viewing angle89/89/89/89 degrees typical at CR 10Response time25 ms typical, 35 ms maximum (rise + fall)
    Display colors262K at 6-bit / 16.2M at 8-bitColor gamut60% NTSC typical
    Active area152.4 x 91.44 mmPixel pitch0.1905 x 0.1905 mm
    Outline dimensions170 x 111 x 7.5 mm typicalWeight157 g maximum
    Signal interface1-channel LVDS, 6/8-bit selectableFrame rate60 Hz, DE mode
    Panel logic supply3.3 V typicalTypical module power2.68 W
    Signal connectorSTM MSB24013P20HA or compatibleMating connectorHirose DF19-20S-1C or compatible
    Backlight driverIncluded, 12 V input with analog dimmingBacklight life50,000 hours under specified conditions
    SurfaceAnti-glare, 3H hardnessScan controlHorizontal and vertical reverse scan supported
    Operating temperature-30 to +85 degrees C, panel-surface temperatureStorage temperature-30 to +85 degrees C
    ComplianceRoHS compliant; related G070VW family UL component-recognition documentation is available subject to label and report conditions
    Availability notice: The final specification defines the product design but does not prove present-day stock or production status. Use availability by inquiry until the supplied revision, lifecycle status, MOQ and lead time are confirmed in writing.

    Optical Performance

    G070VW01.012 provides 400 cd/m2 typical center luminance, 1000:1 typical contrast and 89-degree typical viewing angles in all four directions under the specified CR 10 condition. The AHVA normally-black design supports stable image appearance across typical operator viewing positions.

    Brightness and viewing figures are panel measurements under controlled conditions. Cover glass, touch sensors, protective films, optical bonding and enclosure design can change the final-system result, so validate readability in the finished equipment.

    LVDS, Scan Control and Power Integration

    The 20-pin signal connector carries the 3.3 V logic supply, 1-channel LVDS data, 6/8-bit selection and horizontal/vertical reverse-scan controls. Six-bit mode supports 262K colors; eight-bit mode supports 16.2 million colors.

    1. Confirm the STM MSB24013P20HA-compatible connector and the mating cable orientation.
    2. Verify the complete pin assignment, LVDS mapping, bit-depth selection and 800 x 480 timing.
    3. Set the UD and LR pins correctly when reverse scanning is required.
    4. Apply the documented panel and backlight power sequence; keep interface signals low or high impedance while VDD is off.
    5. Turn off power before inserting or removing either connector.

    Integrated LED Driver and Dimming

    The module includes an LED driver board. Its four-pin driver connector accepts 12 V typical input, display on/off control and analog dimming. The specified input range is 10.8 to 12.6 V, with 1.92 W typical backlight-driver power at full analog dimming.

    The backlight operating-life figure is 50,000 hours at 50 mA and 25 degrees C, defined as the time until brightness falls to 50% of its initial value. High current, temperature or humidity can reduce operating life.

    Mechanical and Environmental Review

    The module outline is 170 x 111 x 7.5 mm typical, while the active area is 152.4 x 91.44 mm. Use the controlled drawing to verify bezel opening, cable clearance, connector position and dimensional tolerances.

    The specification lists -30 to +85 degrees C operation at the panel surface and -30 to +85 degrees C storage. Reliability testing includes non-operating 1.5G vibration and 50G shock, but those qualification tests do not automatically certify the completed equipment for continuous vibration, medical, marine, military or outdoor service.

    UL Component Recognition

    The supplied UL documentation covers the G070VW model family as an LCD panel component under UL 62368-1 and CAN/CSA C22.2 No. 62368-1. It is component recognition for use inside evaluated end equipment, not certification of the completed machine.

    Important: The UL report lists IPX0 and requires end-product evaluation. Only units that properly bear the applicable UL Recognized Component Mark should be treated as covered. Do not describe this LCD module as IP65, waterproof or as an independently certified finished product.

    Design-in and Replacement Checklist

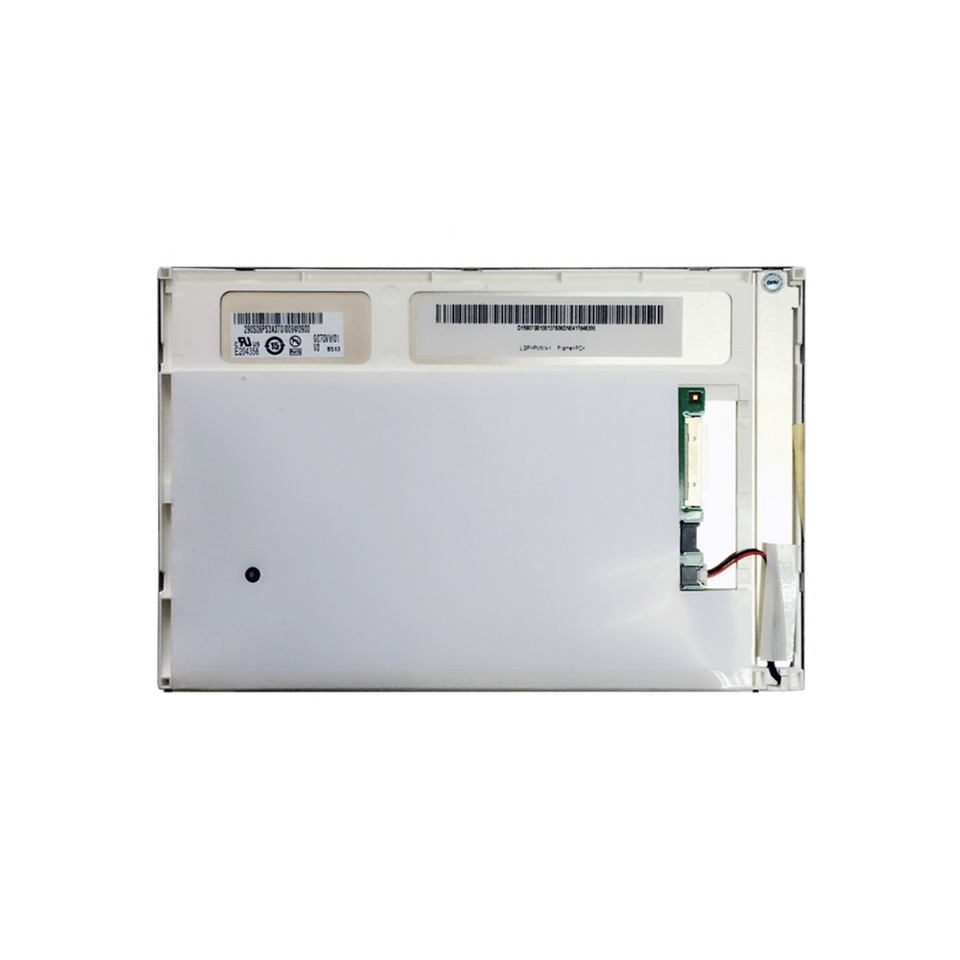

    • Confirm G070VW01.012 and the corresponding 97D07G01.012 reference on the rear label and technical documents.
    • Check the complete 170 x 111 x 7.5 mm outline, bezel opening and connector positions.
    • Verify the 20-pin LVDS mapping, 6/8-bit selection, reverse-scan control and 3.3 V logic supply.
    • Provide the required 12 V backlight-driver input, analog dimming and on/off control.
    • Validate timing, brightness, EMI, thermal behavior and power sequencing in the final equipment.
    Replacement warning: Do not replace another 7-inch 800 x 480 panel based only on size and resolution. Compare the complete model and part number, module outline, connector, pin assignment, LVDS mapping, brightness, integrated-driver requirements, temperature range and mounting details before sample testing.

    Availability and Document Request

    Current stock, production status, sample availability, MOQ and lead time require written confirmation. For quotation or compatibility review, provide the exact model, rear-label photos, required quantity, destination country, application and delivery date.

    Browse more AUO industrial LCD panels or view the 7-inch AUO LCD category.

    Frequently Asked Questions

    What is the correct model number?    The product model used for ordering is G070VW01.012. The corresponding final specification carries the G070VW01.0 and 97D07G01.012 document references, which should be retained for technical traceability.
    Does G070VW01.012 include a touch panel?    No. The reviewed product is a non-touch TFT-LCD module. Select and validate a separate touch solution if required.
    Is an LED backlight driver included?    Yes. The module includes an LED driver board with 12 V input, display on/off control and analog dimming.
    Is it an IPS display?    AUO identifies the display mode as AHVA, normally black. AHVA is the accurate technology name for this model.
    Does UL recognition certify the finished equipment?    No. The documentation covers the LCD as a recognized component. The complete end product still requires its own applicable safety evaluation.
