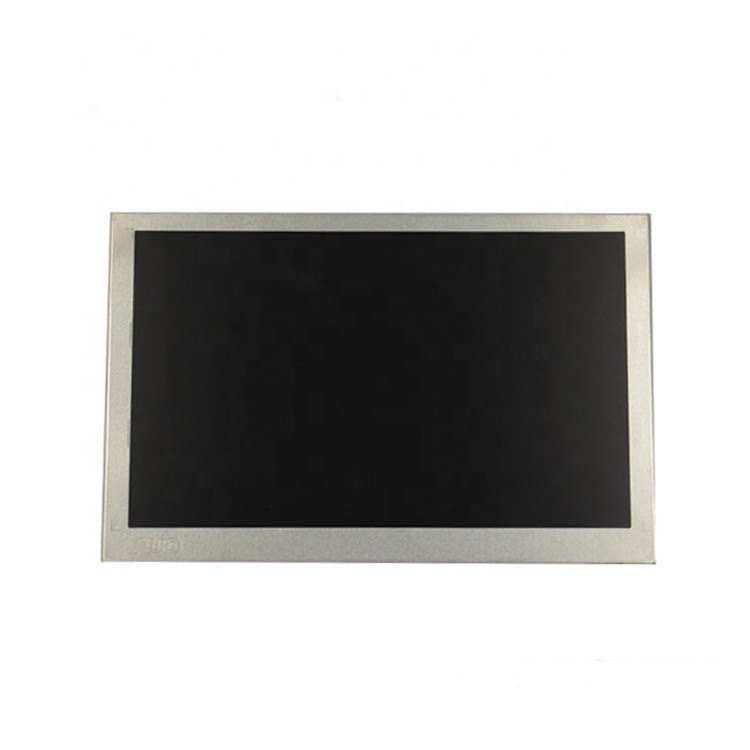

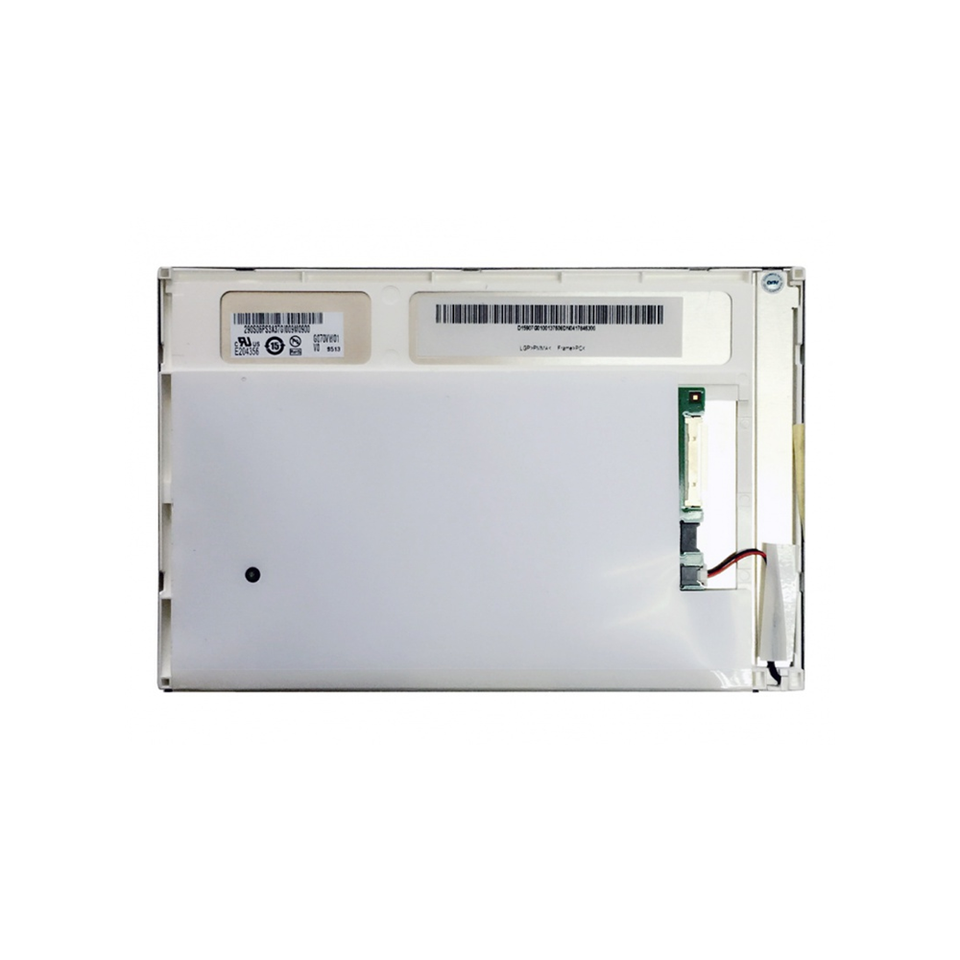

AUO G070VW01 V0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G070VW01 V0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G070VW01 V.0, G070VW01.0 |
| Panel Size | 7.0inch | Designed For | Industrial |
| Maximum Ratings : | OP Temperature | -30~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s2;) |
| Features : | Wide Temperature，Lamp Repaceable，Life>=50K hours,With LED Driver,U/D/L/R Reverse，WLED Backlight，Matte，6/8 bit |
AUO G070VW01 V0 Optical Details
| Basic Information : | Luminance | 400cd/m2; (Typ.) | Contrast Ratio | 750:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6638K | White Variation | 1.30 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 59% | sRGB | 83% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 62% coverage |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G070VW01 V0 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*480, WVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0635*0.1905 (H*V) | Pixel Pitch(W*H) | 0.1905*0.1905 (H*V) [133PPI] |
| Physical Size : | Active Viewing(mm) | 152.4(H) * 91.44(V) | Outline Dim.(mm) | 170(H) * 111(V) |
| Bezel Opening(mm) | 155.2(H) * 94.24(V) | Overall Depth(mm) | 7.5±0.5 |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type |
| Mounting : | Without |
| Other Detail : | Weight | 165/175g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G070VW01 V0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Total Consumption : | 3.7W (Typ.) |
AUO G070VW01 V0 Interface Detail
| Signal Electrical : | Input Current | 0.24/0.26A (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.8/0.96W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| HRS | DF19LA-20P-1H | 1.0 mm | 20pins | 1 pcs | LVDS-20P1C8B-140A |
AUO G070VW01 V0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | Replaceable | Lamp Shape | 1 string | Lamp Life | 50K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage | 32/36.5V (Typ./Max.) | Current Supply | 80/84mA (Typ./Max.) |
| Consumption | 2.56W (Typ.) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| E&T | 3808K-F04N-02R | 1.25 mm | 4 pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 240mA (Typ.) |
| Consumption | 2.88/3.6W (Typ/Max.) |
AUO G070VW01 V0 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 60pcs / box | 434*377*264 mm | 14.4 Kgs |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G070VW01 V0. Please include your application and required quantity so we can confirm the applicable revision.
