AUO G070VW01 V002 7-inch Wide-Temperature LVDS TFT-LCD

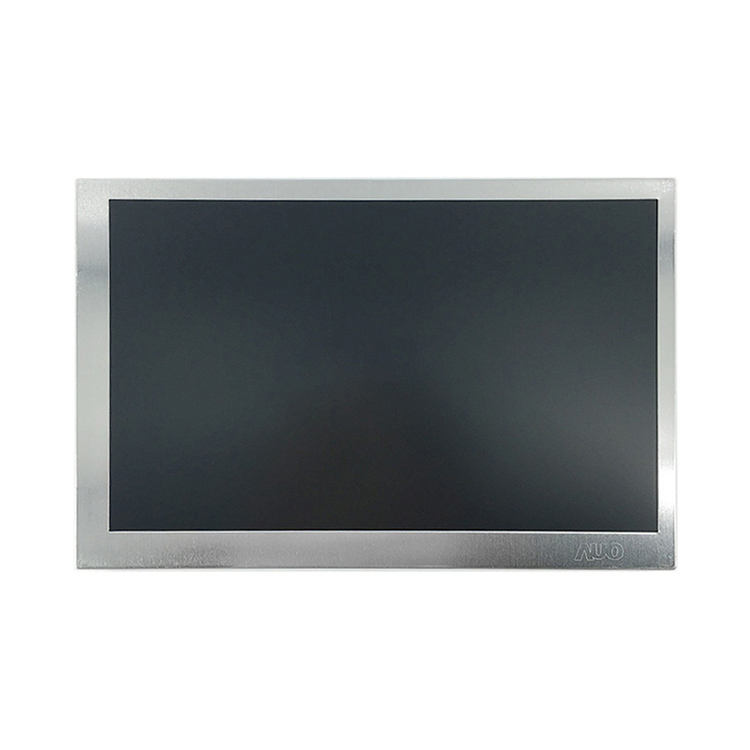

AUO G070VW01 V002 is a 7.0-inch 800 x 480 WVGA TFT-LCD module with 400 cd/m2 typical brightness, 750:1 typical contrast and 80-degree typical viewing angles in all four directions. It uses a 1-channel 6/8-bit LVDS interface and includes a 12 V LED backlight driver board.
The module provides a -30 to +85 degrees C operating range, replaceable LED-light-bar construction and 50,000-hour specified backlight operating life under defined conditions. It is intended for legacy industrial display integration and replacement evaluation.
Model-name control: The final specification cover uses G070VW01 V002, while the body and footer use the shortened internal designation G070VW01 V0. The existing market alias G070VW01.002 may also appear in records. Confirm the complete rear-label identity before purchasing; do not confuse this model with G070VW01.012 or other G070VW01 revisions.
Lifecycle notice: The current product record identifies G070VW01 V002 as discontinued. The reviewed 2020 final specification contains no EOL date or replacement recommendation, so remaining stock and any substitute must be verified individually.
Reviewed Product Specifications
| Manufacturer / Model | AUO / G070VW01 V002 | Internal designation | G070VW01 V0 |
|---|
| Panel size | 7.0 inch | Resolution | 800 x 480 (WVGA) |
|---|
| Active area | 152.40 x 91.44 mm | Pixel pitch | 0.1905 x 0.1905 mm |
|---|
| Pixel arrangement | RGB vertical stripe | Display mode | TN, normally white, transmissive |
|---|
| Brightness | 400 cd/m2 typical; 300 cd/m2 minimum | Contrast ratio | 750:1 typical; 500:1 minimum |
|---|
| Viewing angle | Right/Left/Up/Down 80 degrees typical; 70 degrees minimum (CR 10) | Response time | 20 ms rise / 10 ms fall typical |
|---|
| Display colors | 262K or 16.2M, 6-bit / 8-bit | Color gamut | 60% NTSC typical |
|---|
| Surface treatment | Anti-glare, 3H | Signal interface | 1-channel LVDS, selectable 6/8-bit |
|---|
| Signal connector | 20-pin Hirose DF19LA-20P-1H or compatible | Mating connector | Hirose DF19-20S-1C or compatible |
|---|
| Panel supply | 3.3 V typical | Backlight-driver supply | 12 V typical |
|---|
| Module outline | 170.0 x 111.0 x 7.5 mm typical | Weight | 165 g +/-10 g |
|---|
| Typical total power | 2.52 W | Backlight life | 50,000 hours under specified conditions |
|---|
| Operating temperature | -30 to +85 degrees C, panel-surface temperature | Storage temperature | -30 to +85 degrees C |
|---|
| RoHS | Compliant according to the reviewed specification |
|---|
LVDS and Scan-Direction Controls
The 20-pin signal connector carries 3.3 V panel power, one LVDS clock pair, up to four LVDS data pairs and the scan-direction controls. The SEL68 input selects the LVDS color depth:
- SEL68 low or not connected: 6-bit LVDS input mode.
- SEL68 high: 8-bit LVDS input mode using the fourth data pair.
- UD controls vertical scan direction; LR controls horizontal scan direction.
- Typical pixel clock is 33.3 MHz at 60 Hz frame rate, using DE mode.
- Interface signals must be low or high-impedance while panel VDD is off.
Integrated Backlight Driver
Unlike a bare LED-light-bar connection, G070VW01 V002 includes a backlight driver board. Its 4-pin driver connector provides ground, display on/off, analog dimming and 12 V power input. The driver input range is 10.8 to 12.6 V with 12 V typical.
| Driver connector | Entery 3808K-F04N-02R or compatible | Mating connector | H208K-D04N-22B or compatible |
|---|
| Input current | 0.143 A typical at 100% analog dimming | Driver power | 1.72 W typical; 2.15 W maximum |
|---|
| Analog dimming | 0.3 to 5.0 V | Display on/off | 2 to 5 V on; 0 to 0.6 V off |
|---|
| LED-light-bar connector | Entery H208K-P02N-02B or compatible; one LED channel |
|---|
Backlight-life definition: The specified 50,000-hour operating life is measured at 50 mA and 25 degrees C until brightness falls to 50% of its original value. High current, temperature or humidity can shorten service life.
Replacement and Integration Checklist

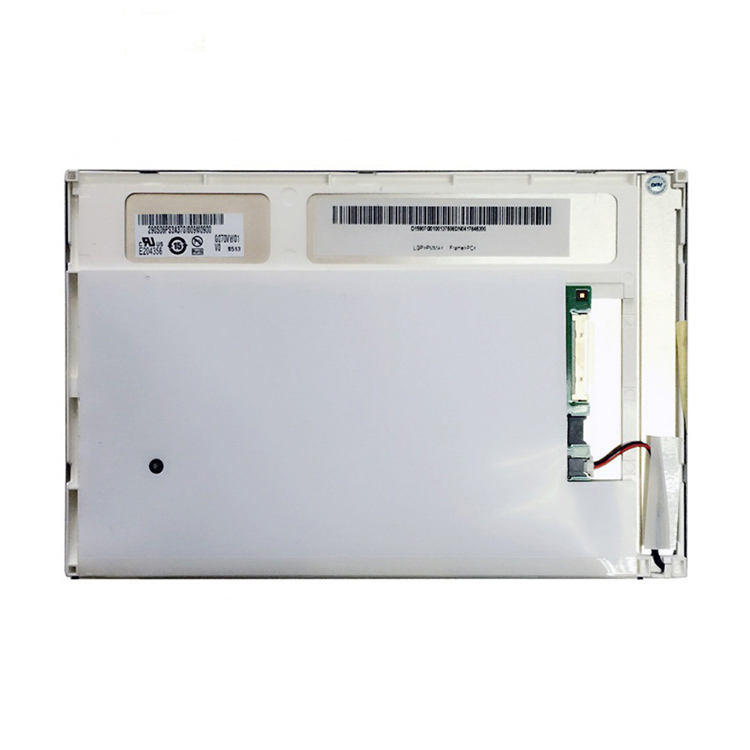

- Confirm the rear label is G070VW01 V002 and not G070VW01.012 or another revision.
- Compare the 170.0 x 111.0 x 7.5 mm outline, active area, mounting points and connector positions.
- Verify the 20-pin LVDS pinout, 6/8-bit mapping, SEL68 state and UD/LR scan controls.
- Provide separate 3.3 V panel and 12 V backlight-driver supplies.
- Check the analog-dimming and display-enable voltage ranges.
- Validate power sequencing, temperature, EMI, vibration and optical performance in the final equipment.
Is G070VW01 V002 the same as G070VW01.012?
No. They are different revisions and must not be treated as interchangeable without comparing the controlled mechanical drawing, connector pinout, electrical requirements and backlight system.
Does the module require an external LED driver?
The reviewed specification states that the backlight driver board is included. The module requires a 12 V driver input plus display-enable and analog-dimming control through the separate 4-pin connector.
Does it support both 6-bit and 8-bit LVDS?
Yes. The SEL68 control selects 6-bit or 8-bit mode; the fourth LVDS data pair is used for 8-bit operation.
Is this model still in production?
The current product record marks it discontinued, while the reviewed specification does not contain an EOL schedule. Confirm remaining stock, date code, storage history and any replacement model before ordering.
Legacy replacement review: Provide a clear rear-label photo, required quantity, host LVDS mapping and available power rails. Approve compatibility from the latest controlled documents and test the panel in the completed equipment.
