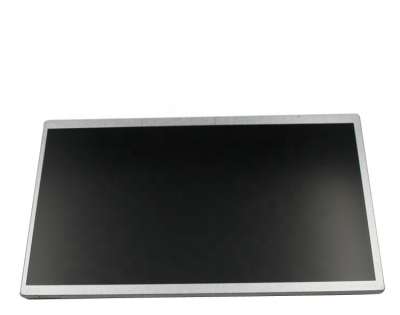

1、 AUO G084XAN01.0 Application Details
Basic Information : | Brand | AUO | Model | G084XAN01.0 |
Type | LCM a-Si TFT-LCD | Used For | Industrial,Outdoor High Brightness | |
Screen Size | 8.4" | |||
Environment : | Storage Temp. | -30 ~ 85 °C | Operating Temp. | -30 ~~ 80 °C |
RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) | |
Typical Features : | Srgb,Wide Temperature,Hight Brightness,WLED Backlight,Life>=70K hours,With LED Driver,U/D,L/R Reverse,6/8 bit,Matte | |||
2、AUO G084XAN01.0 Mechanical Details
Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | - |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.166×0.166 (H×V) [152PPI] | |
Mechanical Size : | Active Area(mm) | 170.496(H) × 127.872(V) | Bezel Area(mm) | 173.75(H) × 132.18(V) |
Outline Dim.(mm) | 199.5(H) × 149(V) | Depth(mm) | 5.98/9.55 (Typ./Max.) | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
Mounting : | Without | |||
Other Spec : | Weight | 282/310g (Typ./Max.) | Treatment | Antiglare |
3、AUO G084XAN01.0 Optical Details
Basic Information : | Luminance(cd/m²) | 700 (Typ.) | Contrast Ratio | 800:1 (Min.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 15/10 (Typ.)(Tr/Td) | |
Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6638K | White Uniformity | 1.25/1.33 (Typ./Max.)( 5 points) | |
1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 99% coverage |
Adobe RGB | 76% coverage | DCI-P3 | 77% coverage | |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4、AUO G084XAN01.0 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
Power Consumption : | 5.3W (Typ.) |
5、AUO G084XAN01.0 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 150/220mA (Typ./Max.) | ||
Consumption | 0.5/0.73W (Typ./Max.) | |||||
Signal Type : | LVDS (1 ch, 6/8-bit) | Signal Voltage | - | |||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
I-PEX | 20765-040E-11A | 1 pcs | 40 pins | 0.5 mm | ||
6、AUO G084XAN01.0 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
Replacement | - | Quantity | - | Life Time | 70K(Min.) (Hours) | |
Lamp Electrical : | Voltage Supply | - | Current Supply | 51.8mA (Typ.) | ||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
JAE | FI-S6P-HFE | 1 pcs | 6 pins | 1.25 mm | ||
Backlight Driver : | With LED Driver | |||||
Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 0.4A (Typ.) | ||
Consumption | 4.8W (Typ.) | |||||
7、AUO G084XAN01.0 Packing Details
Package Box : | Quantity | Weight | Box Size |
22 pcs / box | - | 528×348×265 mm (L×W×H) |
