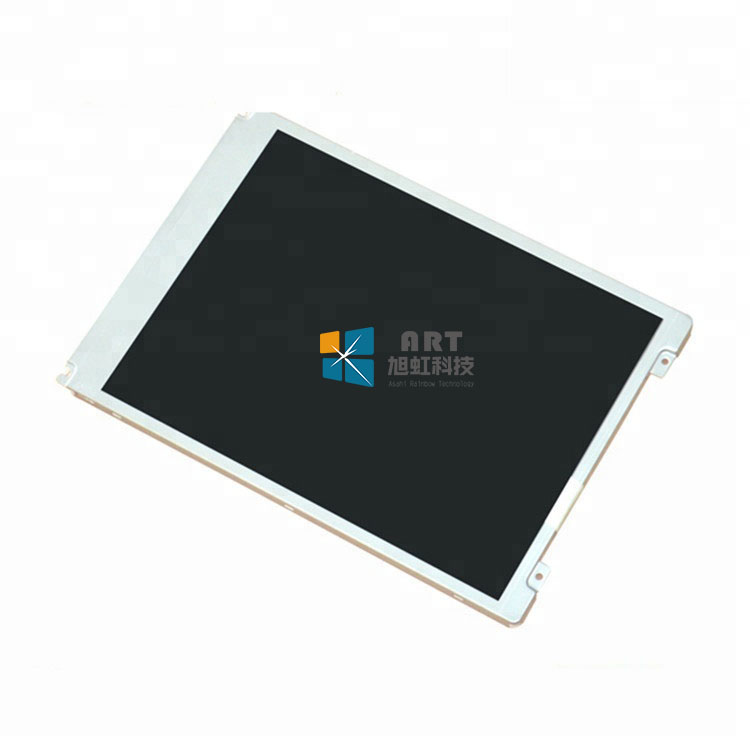

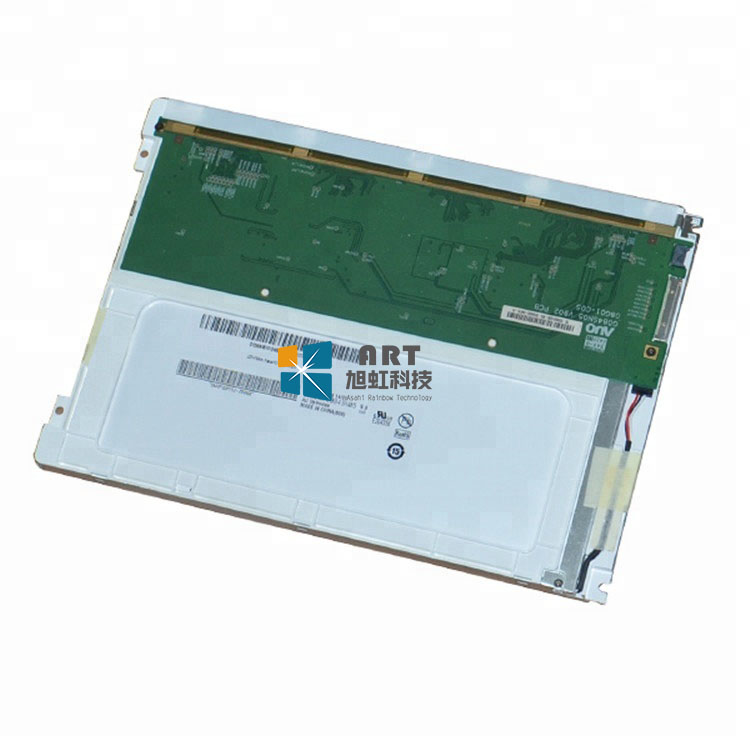

AUO G084SN05 V904 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G084SN05 V904 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 8.4inch | Designed For | Industrial |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Wide Temperature，Lamp Repaceable，WLED Backlight，Life>=50K hours,With LED Driver，6/8bit，Matte，U/D/L/R Reverse |
AUO G084SN05 V904 Optical Details
| Basic Information : | Luminance | 450cd/m²(Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6638K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 72% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G084SN05 V904 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600, SVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.071*0.213 (H*V) | Pixel Pitch(W*H) | 0.213*0.213 (H*V) [119PPI] |
| Physical Size : | Active Viewing(mm) | 170.4(H) *127.8(V) | Outline Dim.(mm) | 203(H) *142.5(V) |
| Bezel Opening(mm) | 174.15(H) *131.2(V) | Overall Depth(mm) | 8.0 (Max.) |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 4:3(H:V) | Orientation | Landscape type |
| Mounting : | Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel |
| Other Detail : | Weight | 250g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
AUO G084SN05 V904 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | 2.94W (Typ.) |
AUO G084SN05 V904 Interface Detail
| Signal Electrical : | Input Current | 270/330mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.9/1.2W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| HRS | DF19LA-20P-1H | 1.0 mm | 20pins | 1 pcs | LVDS-20P1C8B-140A |
AUO G084SN05 V904 Backlight Details
| Lamp Features : | Lamp Type | WLED | Amount | - | Position | Edge light type (Bottom side) |
| Exchange | Replaceable | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage | 19.6/20.4V (Typ./Max.) | Current Supply | 43mA (Typ.) |
| Consumption | 1.76W (Typ.) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| E&T | 3808K-F04N-02R | 1.25 mm | 4 pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
Driver Electrical :
| Voltage Supply | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Supply | 0.17A (Typ.) |
| Consumption | 2.04/2.14W (Typ./Max.) |
AUO G084SN05 V904 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 30pcs / box | 405*328*301 mm | 12.0 Kg |
-
