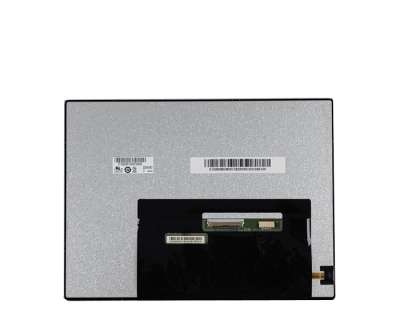

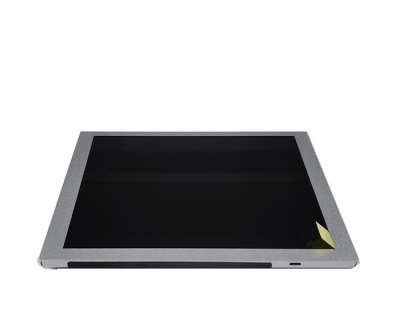

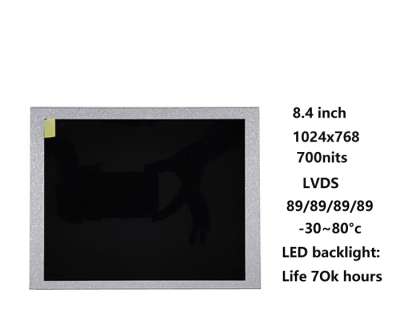

1、 AUO G084XAN01.0 Application Details
Basic Information : | Brand | AUO | Model | G084XAN01.0 |
Type | LCM a-Si TFT-LCD | Used For | Industrial，Outdoor High Brightness |
Screen Size | 8.4" |
|
|
Environment : | Storage Temp. | -30 ~ 85 °C | Operating Temp. | -30 ~~ 80 °C |
RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) |
Typical Features : | Srgb,Wide Temperature，Hight Brightness，WLED Backlight，Life>=70K hours,With LED Driver,U/D,L/R Reverse,6/8 bit,Matte |
2、AUO G084XAN01.0 Mechanical Details
Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | - |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.166×0.166 (H×V) [152PPI] |
Mechanical Size :
| Active Area(mm) | 170.496(H) × 127.872(V) | Bezel Area(mm) | 173.75(H) × 132.18(V) |
Outline Dim.(mm) | 199.5(H) × 149(V) | Depth(mm) | 5.98/9.55 (Typ./Max.) |
Outline Features : | Form Style | Flat Rectangle | Outline Shape |
|
Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
Mounting : | Without |
Other Spec : | Weight | 282/310g (Typ./Max.) | Treatment | Antiglare |
3、AUO G084XAN01.0 Optical Details
Basic Information : | Luminance(cd/m²) | 700 (Typ.) | Contrast Ratio | 800:1 (Min.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 15/10 (Typ.)(Tr/Td) |
Color Performance : | White Coordinate | X:0.310; Y:0.330 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
Color Temperature
| 6638K | White Uniformity | 1.25/1.33 (Typ./Max.)( 5 points) |
1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 99% coverage |
Adobe RGB | 76% coverage | DCI-P3 | 77% coverage |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4、AUO G084XAN01.0 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
Power Consumption : | 5.3W (Typ.) |
5、AUO G084XAN01.0 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) |
| Current Supply | 150/220mA (Typ./Max.) |
Consumption | 0.5/0.73W (Typ./Max.) |
Signal Type : | LVDS (1 ch, 6/8-bit) |
| Signal Voltage | - |
|
Interface Features : | Position | - |
| Type | Connector |
|
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
I-PEX | 20765-040E-11A | 1 pcs | 40 pins | 0.5 mm
|
|
6、AUO G084XAN01.0 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
Replacement | - | Quantity | - | Life Time | 70K(Min.) (Hours) |
Lamp Electrical : | Voltage Supply
| - |
| Current Supply | 51.8mA (Typ.) |
Interface Features : | Position | - |
| Type | Connector |
|
Interface Detail : | Brand | Model | Quantity | Pins | Pitch
| Pin Configuration |
JAE | FI-S6P-HFE | 1 pcs | 6 pins | 1.25 mm |
|
Backlight Driver : | With LED Driver |
Driver Electrical : | Voltage Supply | 12.0±1.2V |
| Current Supply | 0.4A (Typ.) |
|
Consumption | 4.8W (Typ.) |
|
|
|
|
7、AUO G084XAN01.0 Packing Details
Package Box : | Quantity | Weight | Box Size |
22 pcs / box | - | 528×348×265 mm (L×W×H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G084XAN01.0. Please include your application and required quantity so we can confirm the applicable revision.
Request G084XAN01.0 Datasheet
