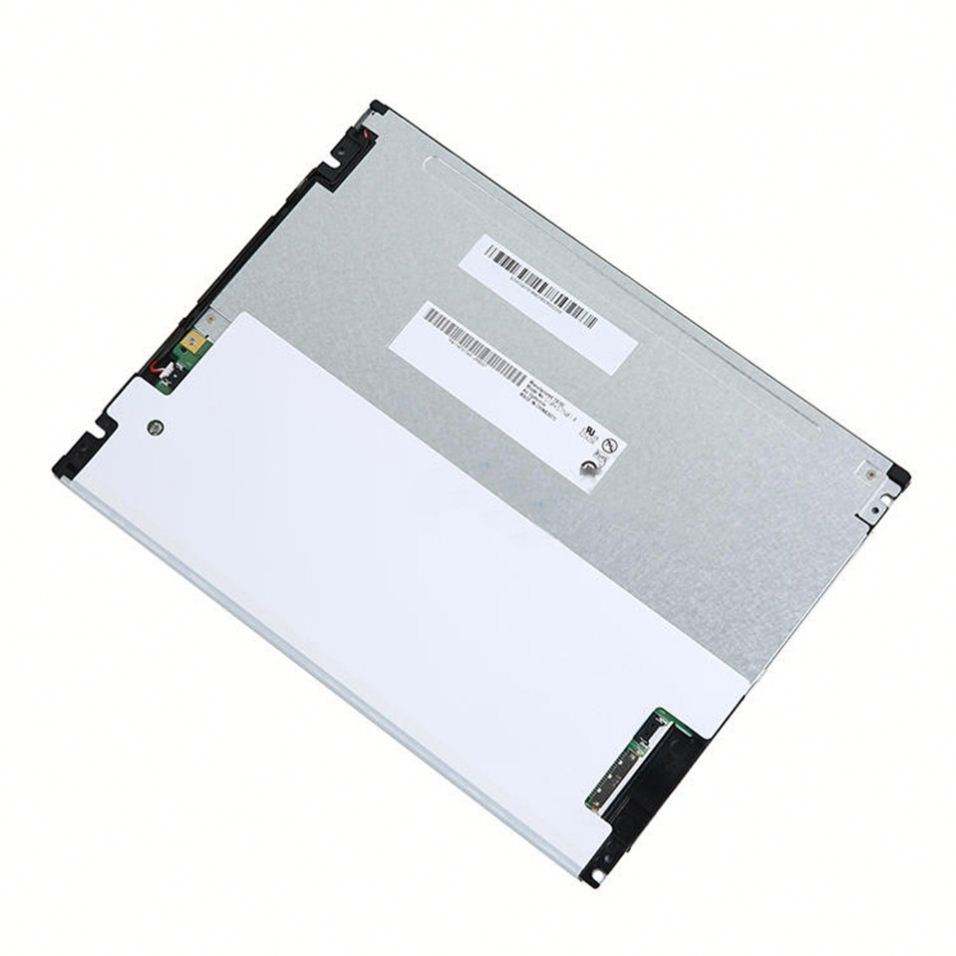

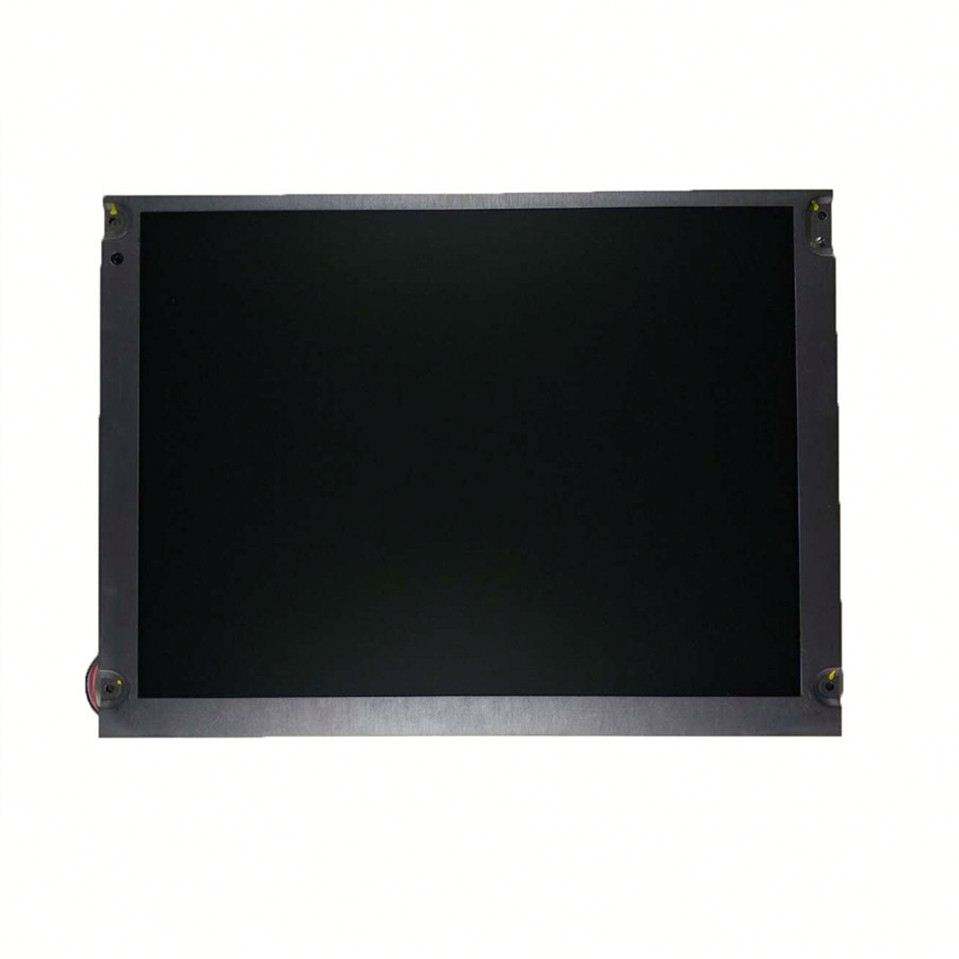

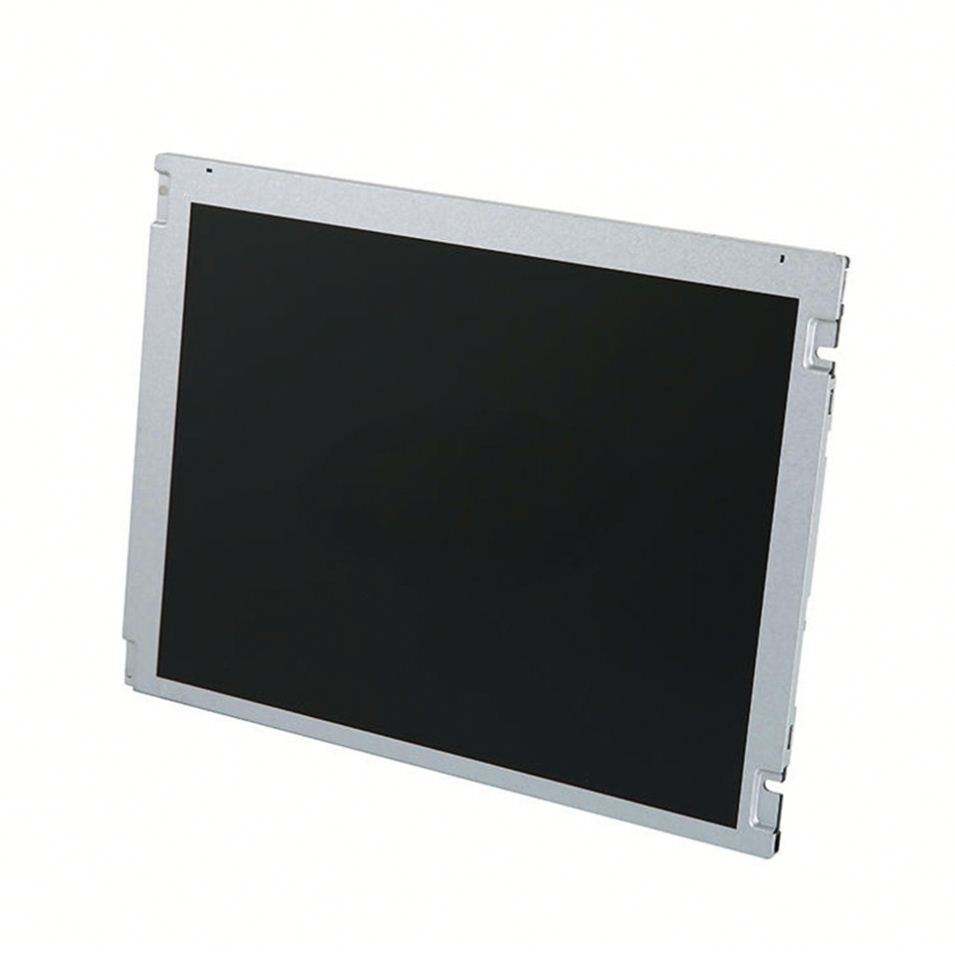

9 inch lcd display 800*480 a-Si TFT-LCD Panel G090VTN02.0

  • 9 inch lcd display 800*480 a-Si TFT-LCD Panel G090VTN02.0
  • 9 inch lcd display 800*480 a-Si TFT-LCD Panel G090VTN02.0
  • 9 inch lcd display 800*480 a-Si TFT-LCD Panel G090VTN02.0
  • Model:G090VTN02.0
  • Brand:AUO
  • Size:9.0inch
  • Resolution:800×480
  • Brightness:300 cd/m² (Typ.)
  • Perspective:70/70/50/70 (Typ.)
  • Interface:TTL
  • Operating Temp.:-20 ~ 75 °C
  • Production State:Discontinued
  • Request a Quote
  • Technical Parameters
  • AUO G090VTN02.0 Application Details

    Basic Detail :ManufacturerAUOModel NameG090VTN02.0
    Panel Typea-Si TFT-LCD , LCMModel Alias
    Panel Size9.0inchDesigned ForIndustrial
    Maximum Ratings :OP Temperature-20 ~ 75°CST Temperature-30 ~ 80°C
    RoHSRoHSVibration Level1.5G (14.7 m/s²)
    Features :WLED Backlight,U/D/L/R Reverse,With LED Driver,Matte


    AUO G090VTN02.0 Optical Details

    Basic Information :Luminance300cd/m² (Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
    Good View at6 o'clockResponse Speed10/15(Typ.)(Tr/Td)
    Viewing Angle70/70/50/70 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color16.7M (6-bit + Hi-FRC)
    Color Temperature6485KWhite Variation1.43 (Max.)(5 points)
    1931 Color Gamlt :NTSC Ratio49%sRGB69% coverage
    Adobe RGB52% coverageDCI-P351% coverage
    Rec.202037% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    AUO G090VTN02.0 Mechanical Details

    Pixel Features :Number of Pixel800(RGB)*480, WVGAArrangementRGB Vertical Stripe
    Dot Pitch(W*H)0.0825*0.2327 mmPixel Pitch(W*H)0.2475*0.2327 mm  [104PPI]
    Physical Size :Active Viewing(mm)198(H) *111.696(V)Outline Dim.(mm)211.1(H) *128.4(V)
    Bezel Opening(mm)201.0(H) *114.7(V)Overall Depth(mm)4.4/7.1 (Typ./Max.)
    Outline Features :Form StyleFlat RectangleShape Style
    Aspect Ratio16:9(H:V)OrientationLandscape type
    Other Detail :Weight255g (Typ.)TreatmentAntiglare, Hard coating (3H)


    AUO G090VTN02.0 Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :Yes (U/D, L/R)
    Time Controller (T-CON) :2.8W (Typ.)
    Time Controller (T-CON) :Embedded T-CON


    AUO G090VTN02.0 Interface Detail

    Signal Electrical :Input Current0.1/0.23A (Typ./Max.)Input Voltage3.3V (Typ.)
    Consumption0.7W (Max.)Signal InterfaceTTL (1 ch, 8-bit)
    Signal Type :Logic Voltage0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
    Interface Features :Position-Physical TypeConnector
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
    STARCONN089H50-000000-G2-R0.5mm50pins1 pcs


    AUO G090VTN02.0 Backlight Details

    Lamp Features :Lamp TypeWLEDAmount-PositionEdge light type
    Exchange-Lamp Shape-Lamp Life20K(Min.) (Hours)
    Interface Features :Position-TypeIncluded in panel signal interface
    Backlight Driver :With LED Driver
    Driver Electrical :


    Voltage Supply4.5/12.0/21.0V (Min./Typ./Max.)Current Supply-
    Consumption2.1W (Max.)


    AUO G090VTN02.0 Packing Details

    Package Box :AmountSize (L*W*H)Weight
    50pcs / box-15.5 Kgs
