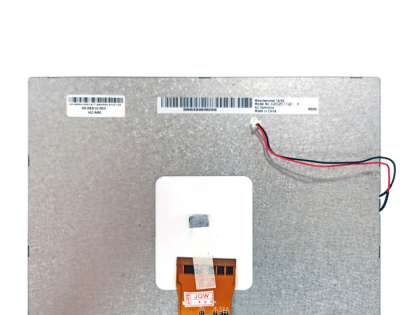

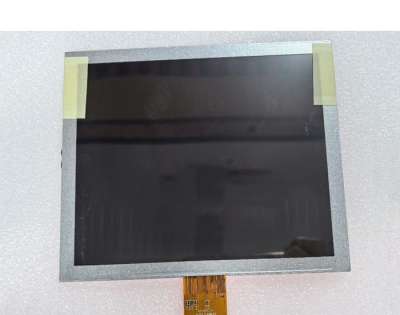

1.AUO A080STN01.0 Application Features
Basic Detail : | Manufacturer | AUO | Model Name | A080STN01.0 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 8.0 inch | Designed For | Industrial | |
Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -30 ~ 70 °C |
Vibration Level | - | RoHS | RoHS | |
Specific Features : | WLED Backlight,U/D,L/R Reverse,Matte | |||
2.AUO A080STN01.0 Mechanical Features
Pixel Features : | Number of Pixel | 800×600(RGB), SVGA | Arrangement | RGB Horizontal Stripe |
Dot Pitch (H×V) | 0.2025×0.0675 mm | Pixel Pitch (H×V) | 0.2025×0.2025 mm [125PPI] | |
Physical Size : | Active Viewing(H×V) | 162×121.5 mm | Bezel Area (H×V) | 163.8×123.3 mm |
Outline Dimension (H×V) | 183×141 mm | Overall Depth | 4.9±0.3 mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 4:3 | Shape Style | - | |
Other Features : | Panel Cover | Weight | Surface | |
- | 225±10g | Antiglare, Hard coating (3H) | ||
3.AUO A080STN01.0 Optical Features
Basic Information : | Luminance | 250cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) | ||
Good View at | 6 o'clock | Response Speed | - | |||
Viewing Angle | 70/70/60/65 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |||
Color Performance : | White color Chromaticity | X:0.310; Y:0.330 | Color Amount | 16.2M (6-bit + FRC) | ||
Color Temperature | 6638K | |||||
1931 Color Gamut : | NTSC Ratio | 52% | sRGB Coverage | 72% | ||
Adobe RGB Coverage | 54% | DCI-P3 Coverage | 54% | |||
Rec.2020 Coverage | 39% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |||
Luminance Variation : | 1.33/1.43 (Typ./Max.)(13 points) | |||||
4.AUO A080STN01.0 Electronics Features
Refresh Rate : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
Power Consumption : | 1.769W (Typ.) |
Time Controller (T-CON) : | Embedded T-CON |
5.AUO A080STN01.0 Interface Features
Signal Electrical : | Input Current | 6.45/5.58/-5.68/3.96/-4.04mA (Typ.)(IDDIO/IDPA/IDNA/IGH/IGL) | Input Voltage | 3.3/5/-5/14/-14V (Typ.)(VDDIO/VDPA/VDNA/VGH/VGL) | |||||||
Power Consumption | 189mW (Typ.) | Signal Interface | TTL (1 ch, 8-bit) + SPI | ||||||||
Voltage for Display Signals : | 0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO | ||||||||||
Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin pitch | Pin Configuration | |||||
1 pcs | 60 pins | 0.5 mm | |||||||||
6.AUO A080STN01.0 Backlight Features
Lamp Features: | Shape | Array | Lamp Type | WLED | Position | Edge light type | |||||
Exchange | - | Amount | 3S6P | Life | 10K(Min.) | ||||||
WLED Electrical : | Input Voltage | 10.5V (Typ.) | Input Current | 150mA (Typ.) | |||||||
Power Consumption | 1.58/1.68W (Typ./Max.) | ||||||||||
Interface Features : | Position | Type | WLED Driver | ||||||||
- | Connector | - | |||||||||
Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration | |||||
E&T | H201K-P02N-02B | 1 pcs | 2 pins | 1.25 mm | BLE-2PINS-AC | ||||||
7.AUO A080STN01.0 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 30 | 1 | 520×340×250 | 7.00 | 0.0442 |
