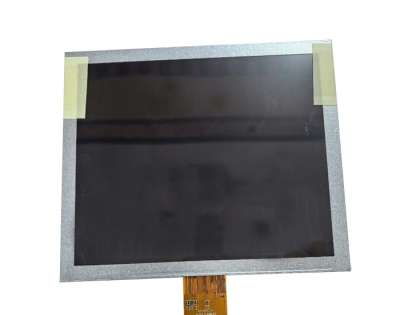

1.AUO A080XTN01.4 Application Features
Basic Detail : | Manufacturer | AUO | Model Name | A080XTN01.4 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 8.0 inch | Designed For | Industrial | |
Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
Vibration Level | - | RoHS | RoHS | |
Specific Features : | WLED Backlight,U/D,L/R Reverse,Matte | |||
2.AUO A080XTN01.4 Mechanical Features
Pixel Features : | Number of Pixel | 1024(RGB)×768, XGA | Arrangement | RGB Vertical Stripe |
Dot Pitch (W×H) | 0.05275×0.15825 mm | Pixel Pitch (W×H) | 0.15825×0.15825 mm [160PPI] | |
Physical Size : | Active Viewing | 162.048(W)×121.536(H) mm | Bezel Area | 164.65(W)×124.14(H) mm |
Outline Dimension | 183(W)×141(H) mm | Overall Depth | 3.4 (Typ.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 4:3 | Shape Style | - | |
Other Features : | Panel Cover | Weight | Surface | |
- | 179g (Typ.) | Antiglare, Hard coating (3H) | ||
3.AUO A080XTN01.4 Optical Features
Basic Information : | Luminance | 250cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
Good View at | 6 o'clock | Response Speed | 3/6 (Typ.)(Tr/Td) ms | |
Viewing Angle | 70/70/60/65 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
Color Performance : | White color Chromaticity | X:0.308; Y:0.327 | Color Amount | 16.7M (8-bit) |
Color Temperature | 6778K | |||
1931 Color Gamut : | NTSC Ratio | 50% | sRGB Coverage | 69% |
Adobe RGB Coverage | 52% | DCI-P3 Coverage | 52% | |
Rec.2020 Coverage | 379% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Luminance Variation : | 1.33/1.43 (Typ./Max.)(13 points) | |||
4.AUO A080XTN01.4 Electronics Features
Refresh Rate : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
5.AUO A080XTN01.4 Interface Features
Signal Electrical : | Input Current | 46/29/0.6/0.8mA (Typ.)(IDD/AIDD/IGH/IGL) | Input Voltage | 3.3/11.5/20/-7V (Typ.)(VDD/AVDD/VGH/VGL) | |||||||
Power Consumption | 605mW (Max.) | Signal Interface | LVDS (1 ch, 8-bit) | ||||||||
Interface Features : | Position | - | Type | FPC | |||||||
Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin pitch | Pin Configuration | |||||
1 pcs | 40 pins | 0.5 mm | |||||||||
6.AUO A080XTN01.4 Backlight Features
Lamp Features: | Shape | Array | Lamp Type | WLED | Position | Edge light type |
Exchange | - | Amount | 3S9P | Life | 15K(Min.) (Hours) | |
WLED Electrical : | Input Voltage | 9.9V (Typ.) | Input Current | 180mA (Typ.) | ||
Power Consumption | 1.78W (Typ.) | |||||
Interface Features : | Position | Type | WLED Driver | |||
- | Included in signal interface | - | ||||
7.AUO A080XTN01.4 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 40 | 1 | N/A | N/A | N/A |
