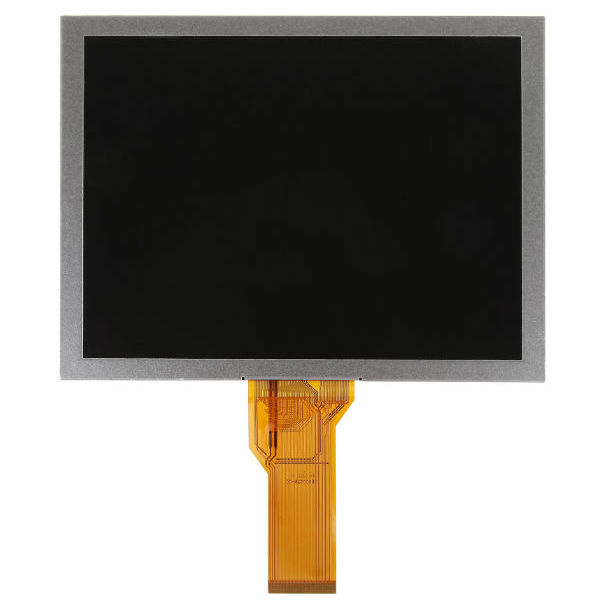

Original AUO 8.0 inch 1024x768 A080XTN01 4 LCD Display Screen

  • Original AUO 8.0 inch 1024x768 A080XTN01 4 LCD Display Screen
  • Model:A080XTN01.4
  • Brand:AUO
  • Size:8.0inch
  • Resolution:1024×768
  • Brightness:250 cd/m² (Typ.)
  • Perspective:70/70/60/65 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-10 ~ 60 °C
  • Production State: In production
  • Request a Quote
  • Technical Parameters
  • AUO A080XTN01.4 Application Details

    Basic Info :Panel BrandAUOPanel ModelA080XTN01.4
    Diagonal Size8.0inchApplicationIndustrial
    Panel Typea-Si TFT-LCD , LCM
    Reliability :Operating Temp.-10 ~ 60  °CStorage Temp.-20 ~70  °C
    RoHS StateRoHSVibration Rating-
    Specific Features :WLED Backlight,U/D,L/R Reverse ,Matte



    AUO A080XTN01.4 Mechanical Details

    Pixel Features :Pixel Format1024(RGB)*768, XGADot Pitch (W*H)0.05275*0.15825 mm
    ConfigurationRGB Vertical StripePixel Pitch (W*H)0.15825*0.15825 mm  [160PPI]
    Mechanical Size :Display Area(mm)162.048(W)*121.536(H) mmOverall Dim.183(W)*141(H) mm
    Bezel Opening164.65(W)*124.14(H) mmOverall Depth3.4 (Typ.) mm
    Outline Features :Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio4:3 (H:V)Shape Style
    Other Detail :Mass179g (Typ.)SurfaceAntiglare, Hard coating (3H)


    AUO A080XTN01.4 Optical Details

    BrightnessBrightness250 cd/m²(Typ.)Contrast Ratio700:1 (Typ.) (Transmissive)
    Viewing Angle70/70/60/65 (Typ.)(CR≥10)Optical ModeTN, Normally White, Transmissive
    Viewing Direction-Response Time3/6 (Typ.)(Tr/Td) ms
    Color Performance :ChromaticityWx:0.308; Wy:0.327Color Numbers16.7M (8-bit)
    Color Temperature6778KWhite Variation1.33/1.43 (Typ./Max.)(9 points)
    1931 Color Gamut :NTSC Ratio50%sRGB69% coverage
    Adobe RGB52% coverageDCI-P352% coverage
    Rec.202037% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    AUO A080XTN01.4 Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :Yes (U/D, L/R)


    AUO A080XTN01.4 Backlight Details

    Back-light Features :Lamp TypeWLEDAmount3S9PLife Time15K(Min.) (Hours)
    Replacement-Lamp ShapeArrayPositionEdge light type
    Lamp Electrical :Input Voltage9.9V (Typ.)Input Current180mA (Typ.)
    Consumption1.78W (Typ.)
    Interface Features :TypeIncluded in signal interfacePosition-Lamp DriverNo


    AUO A080XTN01.4 Interface Details

    Signal InterfaceLVDS (1ch, 8-bit)
    -
    Signal Electrical :Input Current46/29/0.6/0.8mA (Typ.)(IDD/AIDD/IGH/IGL)Input Voltage3.3/11.5/20/-7V (Typ.)(VDD/AVDD/VGH/VGL)
    Consumption605mW (Max.)
    Interface Features :TypeFPCPosition-
    Connector Detail :BrandModelPin PitchPinsAmountConfiguration


    0.5mm40pins1 pcs


    AUO A080XTN01.4 Packing Details

    Package Box :AmountSize (L*W*H)Weight
    40 pcs / box--



Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for A080XTN01.4. Please include your application and required quantity so we can confirm the applicable revision.
