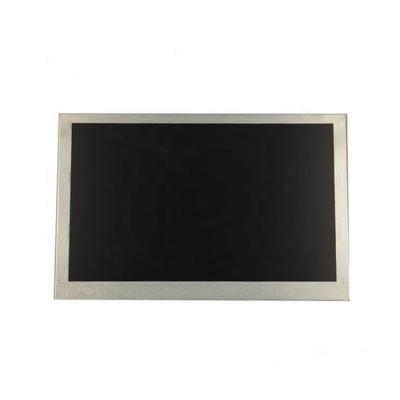

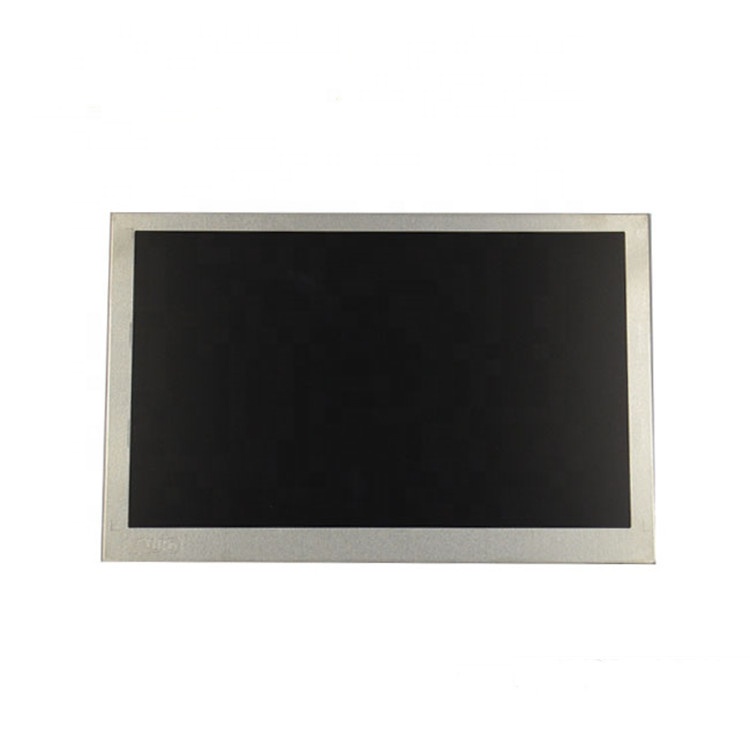

AUO A080XTN01.5 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | A080XTN01.5 |
| Diagonal Size | 8.0inch | Application | Industrial |
| Panel Type | a-Si TFT-LCD , LCM | | |
| Reliability : | Operating Temp. | -10 ~ 60 °C | Storage Temp. | -20 ~70 °C |
| RoHS State | RoHS | Vibration Rating | - |
| Specific Features : | WLED Backlight，U/D,L/R Reverse，6/8 bit，Matte |
AUO A080XTN01.5 Mechanical Details
| Pixel Features : | Pixel Format | 1024(RGB)*768, XGA | Dot Pitch (W×H) | 0.05275*0.15825 mm |
| Configuration | RGB Vertical Stripe | Pixel Pitch (W*H) | 0.15825*0.15825 mm [160PPI] |
| Mechanical Size : | Display Area | 162.048(W)*121.536(H) mm | Outline Dim. | 183(W)*141(H) mm |
| Outline Dim. | 164.65(W)*124.14(H) mm | Overall Depth | 3.4 (Typ.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | |
| Holes & Brackets : | Without |
| Other Detail : | Mass | 158.5g (Typ.) |
Surface | Antiglare, Hard coating (3H) |
AUO A080XTN01.5 Optical Details
| Brightness | Brightness | 300 cd/m²(Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Viewing Angle | 70/70/65/65 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive |
| Viewing Direction | - | Response Time | 20/20(Typ.)(Tr/Td) (ms) |
| Color Performance : | Chromaticity | Wx:0.308; Wy:0.327 | Color Numbers | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6778K | Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 50% | sRGB | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO A080XTN01.5 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 1.9W (Typ.) |
AUO A080XTN01.5 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | 3S9P | Life Time | 15K(Min.) (Hours) |
| Replacement | - | Lamp Shape | Arrays | Position | Edge light type |
| Lamp Electrical : | Input Current | 180mA (Typ.) | Input Voltage | 9.9V (Typ.) |
| Consumption | 1.78W (Typ.) |
| Interface Features : | Type |
Included in signal interface | Position | - |
| Backlight Driver : | No |
AUO A080XTN01.5 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - |
| Signal Electrical : | Input Current | 46/29/0.6/0.8mA (Typ.)(IDD/AIDD/IGH/IGL) | Input Voltage | 3.3/11.5/20/-7V (Typ.)(VDD/AVDD/VHG/VGL) |
| Consumption | 0.7W (Typ.) |
| Interface Features : | Type | FPC | Position | - |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| |
| 0.5mm | 40pins | 1 pcs | |
AUO A080XTN01.5 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 40pcs / box | - | - |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for A080XTN01.5. Please include your application and required quantity so we can confirm the applicable revision.
