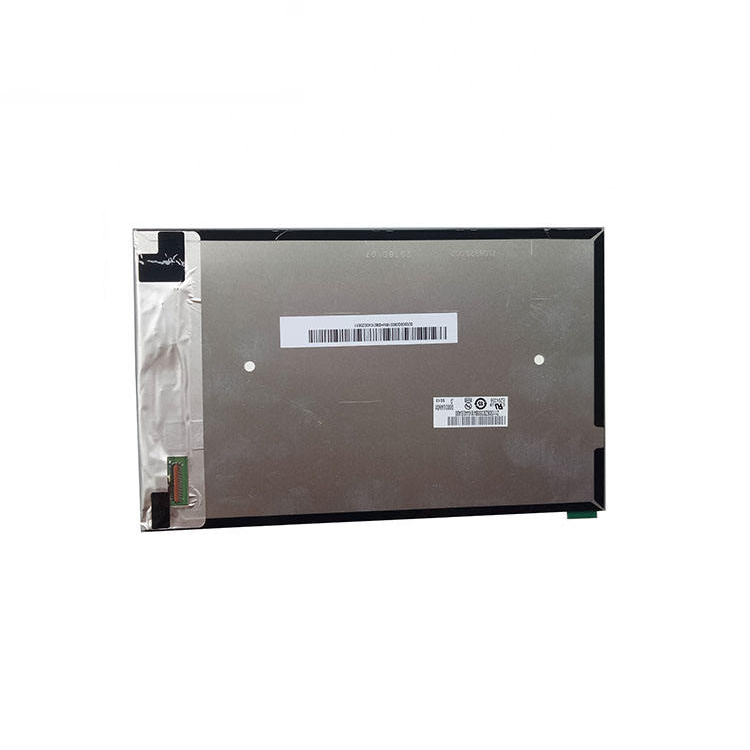

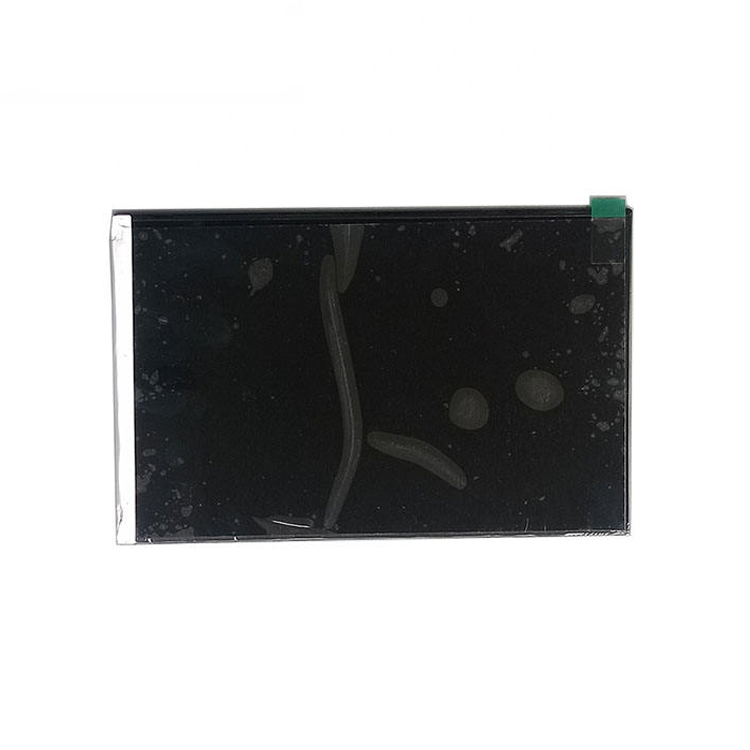

AUO G080UAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G080UAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 8.0” | Designed For | Industrial |
| Maximum Ratings : | OP Temperature | -10 ~~ 60 °C | ST Temperature | -20 ~~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | WLED Backlight,Portrait type，Glossy |
AUO G080UAN01.0 Optical Details
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 27 (Typ.)(Tr+Tf) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.335 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6438K | White Variation | 1.25/1.54 (Max.)(5/13 points) |
| 1931 Color Gamlt : | NTSC Ratio | 60% | sRGB | 81% coverage |
| Adobe RGB | 63% coverage | DCI-P3 | 62% coverage |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G080UAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1200(RGB)*1920, WUXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0299*0.0897 (H*V) | Pixel Pitch(mm) | 0.0897*0.0897 (H*V) [283PPI] |
| Physical Size : | Active Viewing(mm) | 107.64(H) * 172.224(V) | Outline Dim.(mm) | 114.6(H) *184.13(V) |
| Bezel Area (mm) | - | Outline Depth | 2.3/3.95 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 10:16 (H:V) | Orientation | Portrait type |
| Holes & Brackets : | Without |
| Other Features : | Weight | 80g (Max.) | Surface | Glare (Haze 0%) |
AUO G080UAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 1.88W (Typ.) |
AUO G080UAN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply |
153mA (Max.) |
| Consumption | 0.46W (Max.) | Signal Interface | MIPI |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | FH26W-45S-0.3SHW | 1 pcs | 45 pins | 0.3mm | |
AUO G080UAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 8S3P | Position | Edge light type |
| Exchange |
- | Lamp Shape | 3 strings | Lamp Life | 20K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type |
Included in panel signal interface |
| Backlight Driver : | No |
| Lamp Electrical : | Voltage Supply | 22.8/24.8V (Typ./Max.) | Current Supply | 19mA (Typ.)
|
| Consumption | 1.42W (Typ.) |
AUO G080UAN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 66pcs / box | - | 520*340*250 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G080UAN01.0. Please include your application and required quantity so we can confirm the applicable revision.
