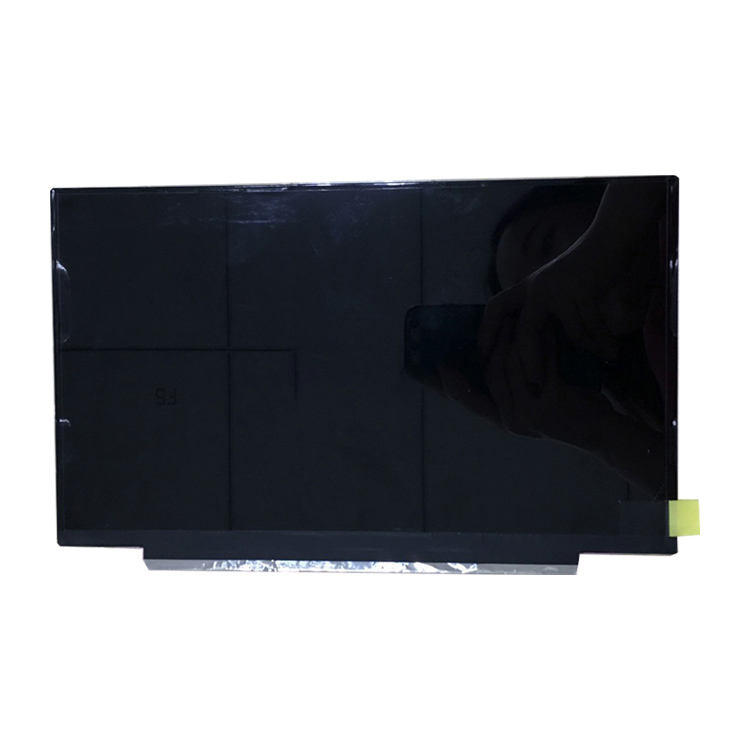

AUO G116HAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G116HAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 11.6” | Designed For | Industria |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~~ 60 °C |
| RoHS | RoHS | Vibration Level | - |
| Features : | WLED Backlight,With LED Driver,Reverse I/F |
AUO G116HAN01.0 Optical Details
| Basic Information : | Luminance | 300cd/m²(Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Variation | 1.43 (Max.)(13 points) |
| 1931 Color Gamlt : | NTSC Ratio | 55% | sRGB | 75% coverage |
| Adobe RGB | 57% coverage | DCI-P3 | 57% coverage |
| Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G116HAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080 [FHD] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0445*0.1335 mm | Pixel Pitch(mm) | 0.1335*0.1335 mm [190PPI] |
| Physical Size : | Active Viewing(mm) | 256.32(W)*144.18(H) mm | Outline Dim.(mm) | 268(W)*168.5(H) mm |
| Bezel Area (mm) | - | Outline Depth(mm) | 3.0 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 | Orientation | Landscape type |
| Fixation | Without |
| Other Features : | Weight | 200g (Max.) | Surface | Hard coating (3H) |
AUO G116HAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO G116HAN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply |
303mA (Typ.) |
| Consumption |
1.0W (Max.) | Signal Interface | eDP (2 Lanes) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSAK24025P30M | 1 pcs | 30pins | 0.5mm | EDP-30P2L-020A |
AUO G116HAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
- | Lamp Shape | - | Lamp Life | 15K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type |
Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Current | - | Input Voltage | 5.0/12.0/21.0V (Min./Typ./Max.) |
Consumption
| 2.2W (Max.) |
AUO G116HAN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 48 pcs / box | 12.5 Kgs | 560*270*417 mm (L*W*H) |
-
