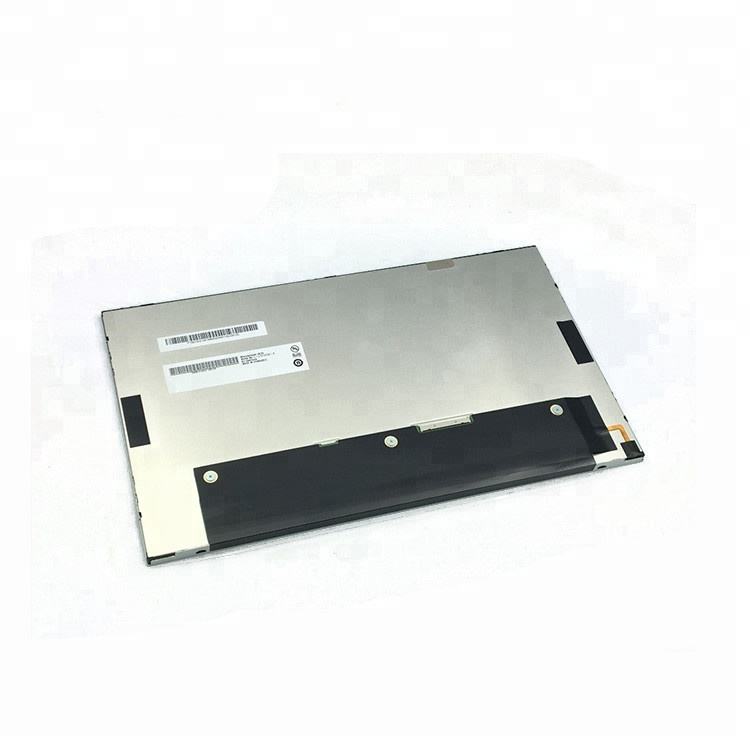

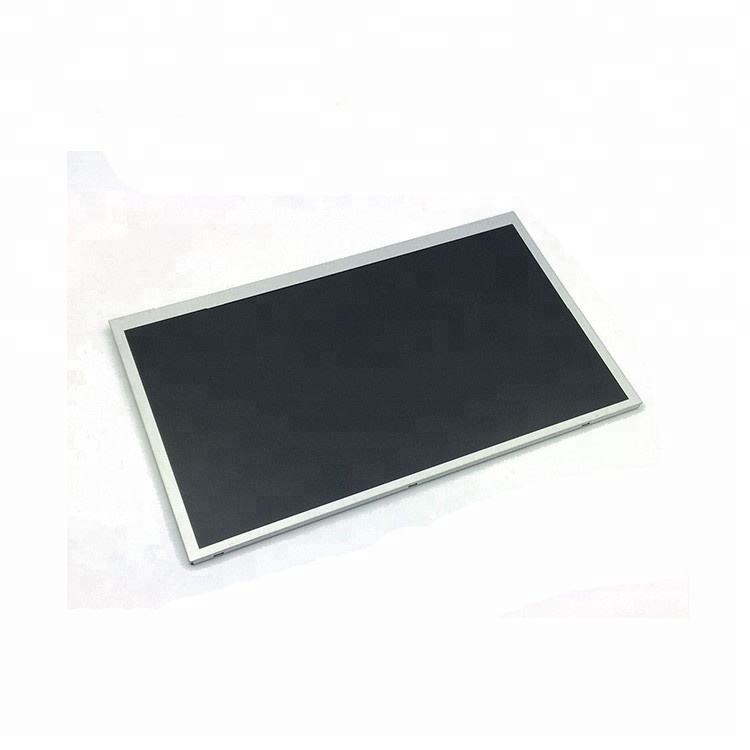

AUO G140HAN01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G140HAN01.1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 14.0” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | 0 ~~ 50 °C | ST Temperature | -20 ~~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight,With LED Driver,Reverse I/F, Glossy,Life>=50K hours | |||
AUO G140HAN01.1 Optical Details
| Basic Information : | Luminance | 400cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 15/10 (Typ.)(Tr/Td) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G140HAN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.054*0.161 (H*V) | Pixel Pitch(mm) | 0.161*0.161 (H*V) [157PPI] | |
| Physical Size : | Active Viewing(mm) | 309.14(H) *173.89(V) | Outline Dim.(mm) | 319(H) *190.76(V) |
| Bezel Area (mm) | - | Outline Depth | 4.9/8.3 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 580g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
AUO G140HAN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption: | 7.2W (Max.) |
AUO G140HAN01.1 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 367mA (Max.) | ||||
| Consumption | 1.1W (Max.) | Signal Interface | eDP (2 Lane) | |||||
| Interface Features : | Position | Rear | Type | Connector | ||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | ||
| I-PEX | 20455-030E-12 | 1 pcs | 30pins | 0.5mm | EDP-30P2L-020A | |||
AUO G140HAN01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | ||
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | |||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||||
| Backlight Driver : | With LED Driver | |||||||
| Lamp Electrical : | Voltage Supply | 6.5/12.0/21.0V (Min./Typ./Max.) | Current Supply | 462mA (Typ.) | ||||
| Consumption | 5.54/6.1W (Typ./Max.) | |||||||
AUO G140HAN01.1 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 22pcs / box | 14.56 Kgs | 484*279*432 mm (L*W*H) |
Contact us to request the current datasheet and mechanical drawing for G140HAN01.1. Please include your application and required quantity so we can confirm the applicable revision.
