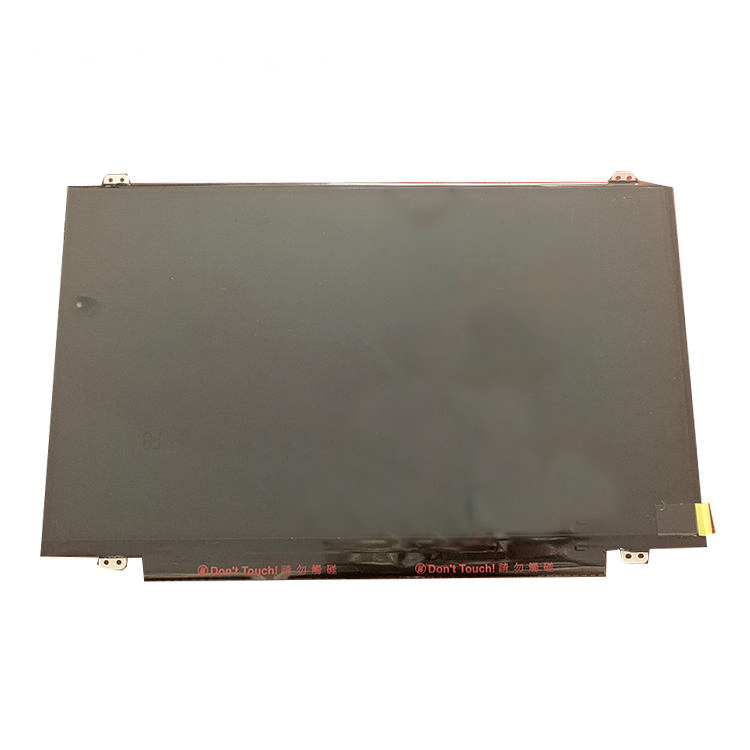

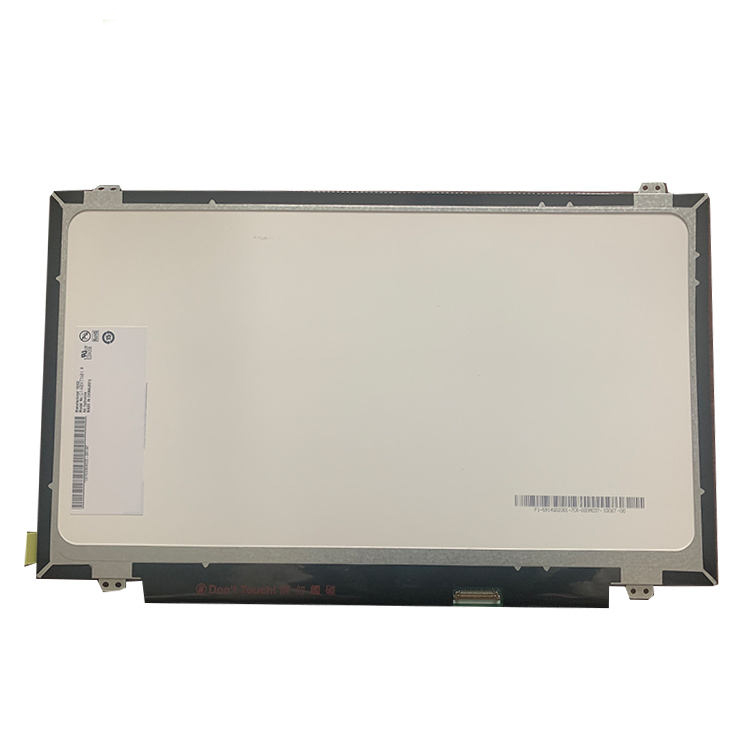

AUO G140XTN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G140XTN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 14.0” | Designed For | Industrial |
| Maximum Ratings : | OP Temperature | 0 ~~ 50 °C | ST Temperature | -20 ~~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | WLED Backlight,With LED Driver，Reverse I/F, Matte |
AUO G140XTN01.0 Optical Details
| Basic Information : | Luminance | 220 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 8 (Typ.)(Tr+Tf) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Variation | 1.25/1.60 (Max.)(5/13 points) |
| 1931 Color Gamlt : | NTSC Ratio | 43% | sRGB | 61% coverage |
| Adobe RGB | 45% coverage | DCI-P3 | 45% coverage |
| Rec.2020 | 32% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G140XTN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1366(RGB)*768, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.0755*0.2265 (H*V) | Pixel Pitch(mm) | 0.2265*0.2265 (H*V) [112PPI] |
| Physical Size : | Active Viewing(mm) | 309.399(H) *173.952(V) | Outline Dim.(mm) | 320.4(H) *205.1(V) |
| Bezel Area (mm) | - | Outline Depth |
2.8/3.0 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape |
|
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Holes & Brackets : | Face mounting holes (8 pcs) on up, down slugs |
| Other Features : | Weight | 270g (Max.) | Surface | Antiglare, Hard coating (3H) |
AUO G140XTN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO G140XTN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply |
333/364mA (Typ./Max.) |
| Consumption | 1.2/1.5W (Typ./Max.) | Signal Interface | eDP (1 Lane) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| I-PEX | 20455-030E-02 | 1 pcs | 30pins | 0.5mm | EDP-30P1L-020A |
AUO G140XTN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
- | Lamp Shape | - | Lamp Life | 10K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type |
Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Lamp Electrical : | Voltage Supply | 6.0/12.8/21.0V (Min./Typ./Max.)
| Current Supply | - |
| Consumption | 2.2W (Max.) |
AUO G140XTN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 40pcs / box | 14.0 Kgs | 407*377*309 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G140XTN01.0. Please include your application and required quantity so we can confirm the applicable revision.
