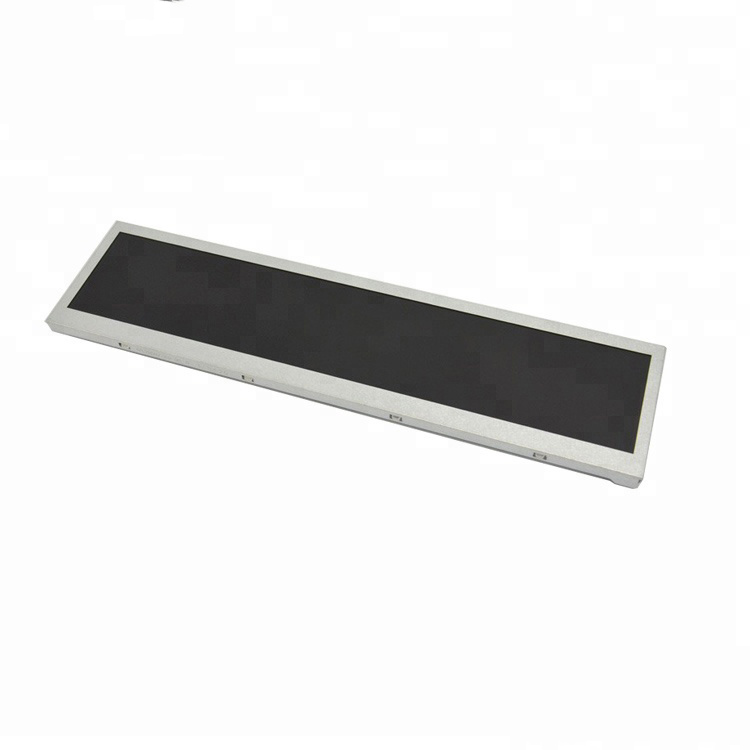

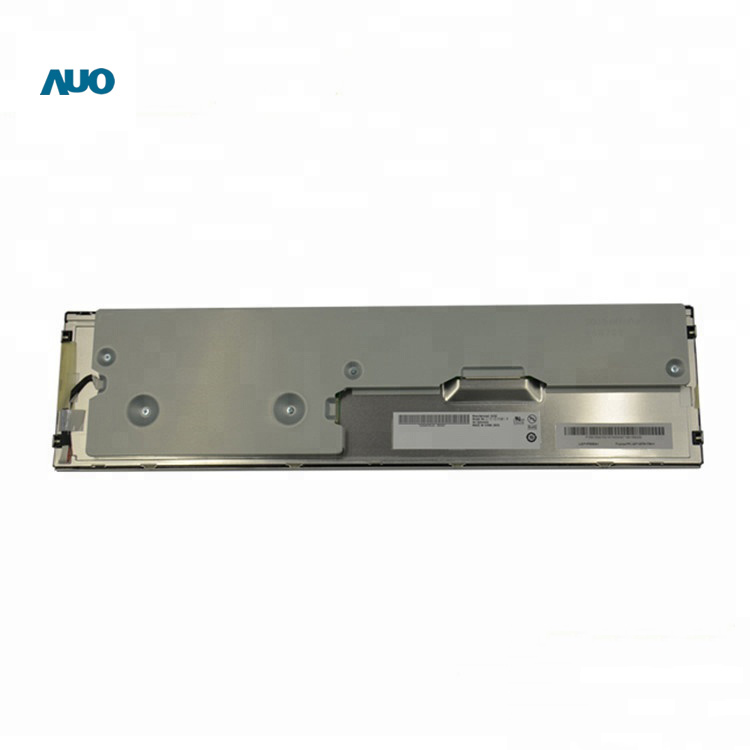

AUO G151EVN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G151EVN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 15.1” | Designed For | Industria，Medical Imaging |
| Maximum Ratings : | OP Temperature | 0 ~~ 50 °C | ST Temperature | -20 ~~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.0G (9.8m/s²) |
| Features : | WLED Backlight,Life>=50K hours, With LED Driver, Bar Display |
AUO G151EVN01.0 Optical Details
| Basic Information : | Luminance | 300cd/m²(Typ.) | Contrast Ratio | 2000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 69% | sRGB | 92% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 72% coverage |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G151EVN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*248 | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.098*0.294 mm | Pixel Pitch(mm) | 0.294*0.294 mm [86PPI] |
| Physical Size : | Active Viewing(mm) | 376.32(W)*72.91(H) mm | Outline Dim.(mm) | 396(W)*100.8(H) mm |
| Bezel Area (mm) | 380.32(W)*75.9(H) mm | Outline Depth(mm) |
17.3 mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | >3:1 | Orientation | Landscape type |
| Fixation | Side mounting holes |
| Other Features : | Weight | 700g (Max.) | Surface | Antiglare, Hard coating (3H) |
AUO G151EVN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 10.85W (Typ.) |
AUO G151EVN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply |
0.25A (Typ.) |
| Consumption |
1.25/1.38W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit)
|
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-XB30SSL-HF15 | 1 pcs | 30pins | 1.0mm | LVDS-30P2C8B-160A |
AUO G151EVN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
- | Lamp Shape | | Lamp Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type |
Connector |
| Backlight Driver : | With LED Driver |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
STM | MS24049HJ | 1 pcs | 9 pins | 1.25mm | |
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 0.8A (Typ.) |
| Consumption | 9.6/10.56W (Typ./Max.) |
AUO G151EVN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 30pcs / box | - | 478*281*488 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G151EVN01.0. Please include your application and required quantity so we can confirm the applicable revision.
Request G151EVN01.0 Datasheet
