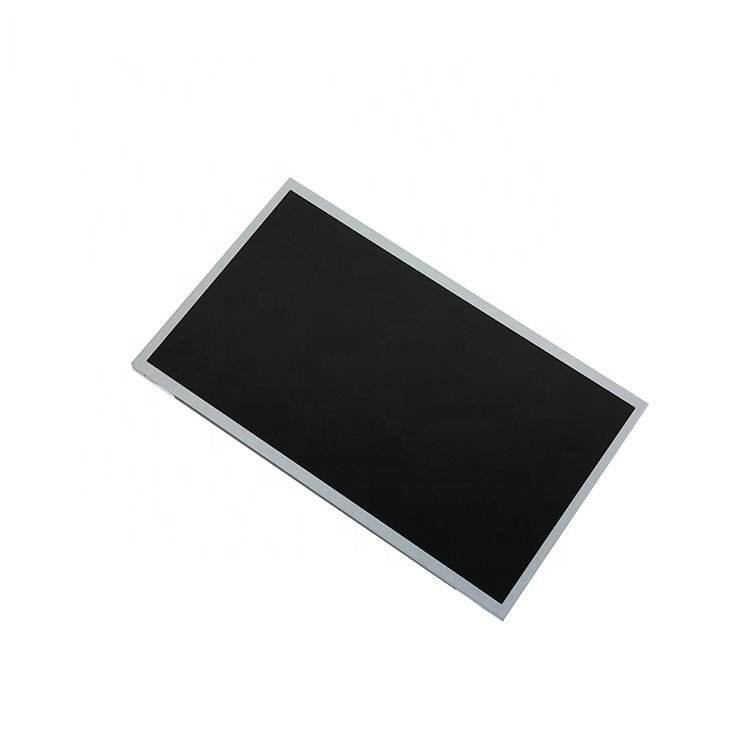

AUO G154EVN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G154EVN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | G154EVN01 V.0 |
| Panel Size | 15.4” | Designed For | Industria |
| Maximum Ratings : | OP Temperature | -10 ~ 70 °C | ST Temperature | -20 ~ 80 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | WLED Backlight,Life>=70K hours,With LED Driver,Upside I/F,Matte |
AUO G154EVN01.0 Optical Details
| Basic Information : | Luminance | 400cd/m²(Typ.) | Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA3, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.40 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 43% | sRGB | 61% coverage |
| Adobe RGB | 45% coverage | DCI-P3 | 45% coverage |
| Rec.2020 | 32% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G154EVN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800 [WXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.08625*0.25875 mm | Pixel Pitch(mm) | 0.25875*0.25875 mm [98PPI] |
| Physical Size : | Active Viewing(mm) | 331.2(W)*207(H) mm | Outline Dim.(mm) | 352(W)*230(H) mm |
| Bezel Area (mm) | 334.5(W)*209.1(H) mm | Outline Depth(mm) | 8.55/9.05 (Typ./Max/) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 | Orientation | Landscape type |
| Fixation | Side mounting holes (4 pcs) on left, right bezel |
| Other Features : | Weight | 900g (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G154EVN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO G154EVN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 0.636/0.787A (Typ./Max.) |
| Consumption | 2.1/2.6W (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-XB30SSLA-HF15 | 1 pcs | 30pins | 1.0mm | LVDS-30P1C8B-170A |
AUO G154EVN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
- | Lamp Shape | - | Lamp Life | 70K(Typ.) (Hours) |
| Interface Features : | Position | - | Physical Type |
Connector |
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | 3808K-F05N-12 | 1 pcs | 1.25 mm
| 5 pins | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Current | - | Input Voltage | 12±1.2V |
| Consumption | 6.4/7.6W (Typ./Max.) |
AUO G154EVN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 14pcs / box | - | 428*365*328 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G154EVN01.0. Please include your application and required quantity so we can confirm the applicable revision.
