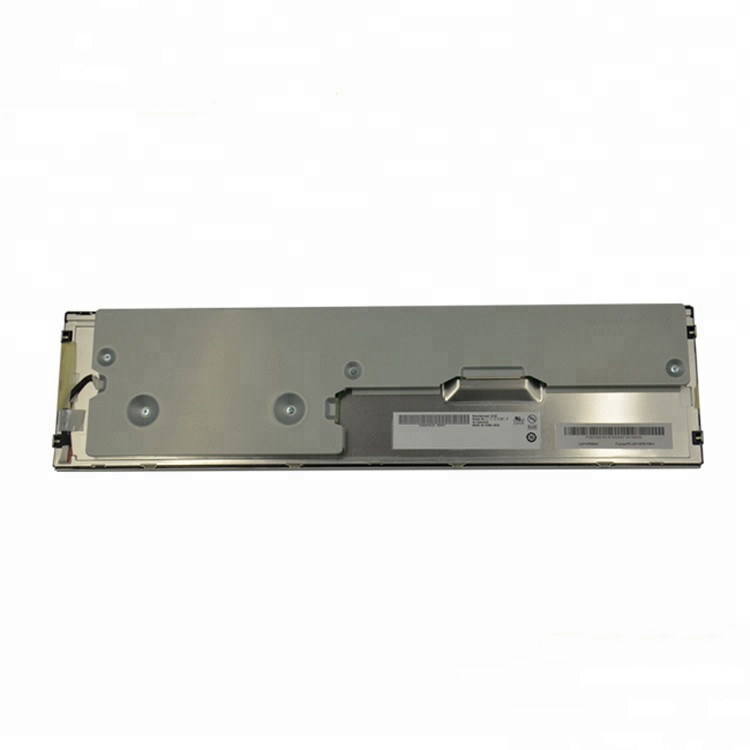

AUO G190SF01 V0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G190SF01 V0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 19.0" (1/3 cut of 22.0") | Designed For | Industria，Stretched Bar LCD |
| Maximum Ratings : | OP Temperature | 0 ~~60 °C | ST Temperature | -20 ~~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | WLED Backlight,Life>=50K hours, With LED Driver, Bar Display,Upside I/F,Matte |
AUO G190SF01 V0 Optical Details
| Basic Information : | Luminance | 300cd/m²(Typ.) | Contrast Ratio | 2000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | P-MVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G190SF01 V0 Mechanical Details
| Pixel Features : | Number of Pixel | 1680(RGB)*342 | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.094*0.282 mm | Pixel Pitch(mm) | 0.282*0.282 mm (H*V) [90PPI] |
| Physical Size : | Active Viewing(mm) | 473.76*96.44 mm (H*V) | Outline Dim.(mm) | 493.7*124.8 mm (H*V) |
| Bezel Area (mm) | 477.7*100.44 mm (H*V) | Outline Depth(mm) | 18.5 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | >3:1 | Orientation | Landscape type |
| Fixation | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 1.50Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G190SF01 V0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 18.0W (Typ.) |
AUO G190SF01 V0 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply |
1.2A (Typ.) |
| Consumption |
6.0W (Typ.) | Signal Interface | LVDS (2 ch, 8-bit)
|
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-XB30SRL-HF11 | 1 pcs | 30pins | 1.0mm | LVDS-30P2C8B-160A |
AUO G190SF01 V0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 8S5P | Position | Edge light type (Bottom side) |
| Exchange |
- | Lamp Shape | 5 strings | Lamp Life | 50K(Min.) (Hours) |
| Lamp Electrical : | Voltage Input | | Current Input | 80mA (Typ.) |
| Consumption | 10.24/11.52W (Typ./Max.) |
| Interface Features : | Position | - | Physical Type |
Connector |
| Backlight Driver : | With LED Driver |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
STM | MS24049HJ | 1 pcs | 9 pins | 1.25mm | |
| Driver Electrical : | Voltage Supply | 12.0V | Current Supply | 1A (Typ.) |
| Consumption | 12.0W (Typ.) |
AUO G190SF01 V0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 10pcs / box | - | 564*320*228 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G190SF01 V0. Please include your application and required quantity so we can confirm the applicable revision.
