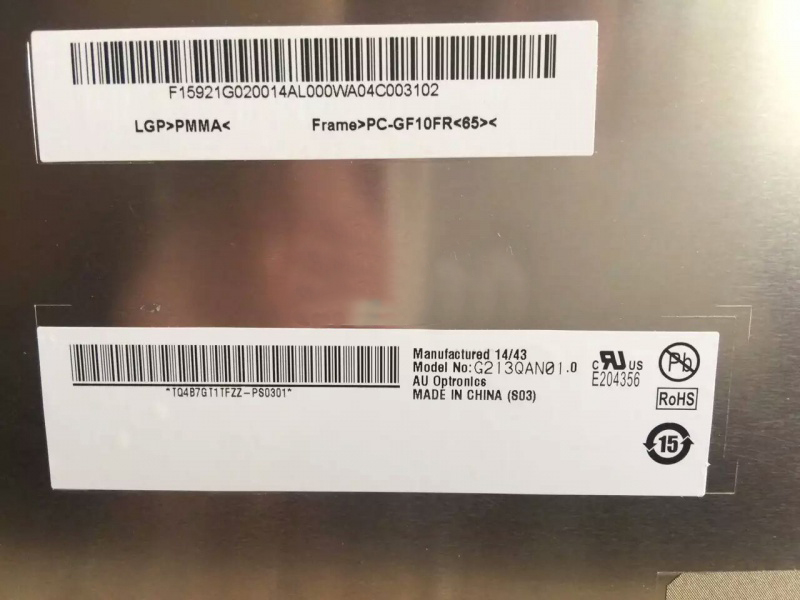

AUO G213QAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G213QAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 21.3” | Designed For | Industrial，Medical Imaging |
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Srgb,Hight Bringhtness,Life>=50K hours,WLED Backlight,Matte, Upside I/F,With LED Driver,10bit |
AUO G213QAN01.0 Optical Details
| Basic Information : | Luminance | 800 cd/m² (Typ.) | Contrast Ratio | 1400:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.299; Wy:0.315 | Support Color | 1.07B (10-bit) |
| Color Temperature | 7502K | White Variation | 1.25 (Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 74% | sRGB | 100% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 77% coverage |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO G213QAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 2048(RGB)*1536, QXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0705*0.2115 mm | Pixel Pitch(mm) | 0.2115*0.2115 mm [120PPI] |
| Physical Size : | Active Viewing(mm) | 433.152(W)*324.864(H) mm | Outline Dim.(mm) | 457(W)*350(H) mm |
| Bezel Area (mm) | 438.2(W)*330.0(H) mm | Outline Depth | 22.3±0.5 mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 3.20±0.332Kgs (Typ.) | Surface | Antiglare |
AUO G213QAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO G213QAN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply |
0.35/0.42A (Typ./Max.) |
| Consumption | 4.2/5.04W (Typ./Max.) | Signal Interface | LVDS (4 ch, 10-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | FX15S-41S-0.5SH | 2 pcs | 41 pins | 0.5mm | |
AUO G213QAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
- | Lamp Shape | - | Lamp Life | 30K(Min.) Hours |
| Interface Features : | Position | - | Physical Type |
Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | S14B-PH-SM6-K-TB | 1 pcs | 14 pins | 2.0mm | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 24.0±1.5V | Current Supply | 1.9/2.1A (Typ./Max.) |
| Consumption | 45.6/50.4W (Typ./Max.) |
AUO G213QAN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 5pcs / box | 18.5 Kgs | 550*264*432 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G213QAN01.0. Please include your application and required quantity so we can confirm the applicable revision.
Request G213QAN01.0 Datasheet
