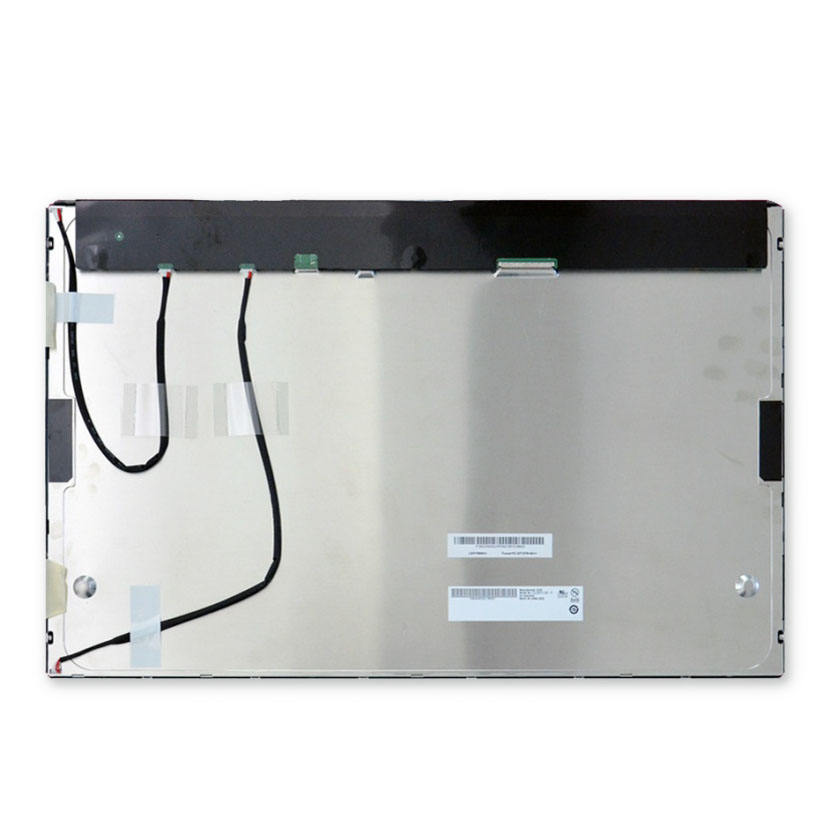

AUO G220SVN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G220SVN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 22” | Designed For | Industrial，Gaming |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | WLED Backlight,Matte, Upside I/F,With LED Driver |
AUO G220SVN01.0 Optical Details
| Basic Information : | Luminance | 250cd/m² (Typ.) | Contrast Ratio | 2000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 91% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 73% coverage |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G220SVN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1680(RGB)*1050, WSXGA+ | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.094*0.282 mm | Pixel Pitch(mm) | 0.282*0.282 mm [90PPI] |
| Physical Size : | Active Viewing(mm) | 473.76(W)*296.1(H) mm | Outline Dim.(mm) | 493.7(W)*320.1(H) mm |
| Bezel Area (mm) | 477.7(W)*300.1(H) mm | Outline Depth | 15.75 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 2.10Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G220SVN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 28W (Typ.) |
AUO G220SVN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply |
1.2/1.3A (Typ./Max.) |
| Consumption | 6.0/6.5W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-XPB30SRLA-HF11 | 1 pcs | 30 pins | 1.0mm | LVDS-30P2C8B-160A |
AUO G220SVN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Top and Bottom) |
| Exchange |
- | Lamp Shape | - | Lamp Life | 30K(Typ.) (Hours) |
| Interface Features : | Position | Rear | Physical Type |
Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MS24049HJ | 1 pcs | 9 pins | 1.25mm | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Supply | 1.8/2.1A (Typ./Max.) |
| Consumption | 21.6/25.2W (Typ./Max.) |
AUO G220SVN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 7pcs / box | 2.4 Kgs (Typ.) | 585*284*429 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G220SVN01.0. Please include your application and required quantity so we can confirm the applicable revision.
Request G220SVN01.0 Datasheet
