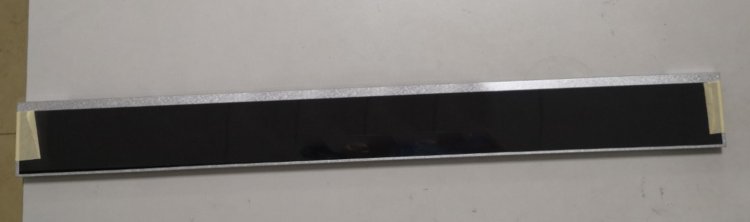

AUO G229HAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G229HAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 22.9” | Designed For | Industrial，Stretched Bar LCD |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Srgb，WLED Backlight，Life>=50K hours,With LED Driver,Bar Display,Matte |
AUO G229HAN01.0 Optical Details
| Basic Information : | Luminance | 500cd/m²(Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
AUO G229HAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*165 | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.1005*0.3105 mm | Pixel Pitch(mm) | 0.3105*0.3105 mm [84PPI] |
| Physical Size : | Active Viewing(mm) | 578.88(W)*49.7475(H) mm | Outline Dim.(mm) | 587.08(W)*62.05(H) mm |
| Bezel Area (mm) | 580.88(W)*51.75(H) mm | Outline Depth(mm) |
10.71 (Max.) mm |

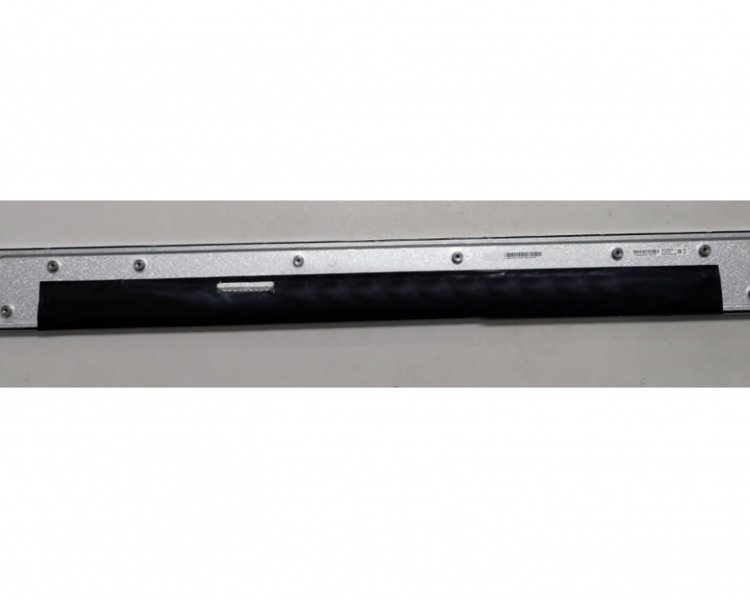

| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | >3:1
| Orientation | Landscape type |
| Fixation : | Rear mounting holes (8-M3) |
| Other Features : | Weight | 460g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
AUO G229HAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 7.53W (Typ.) |
AUO G229HAN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 0.37/0.44A (Typ./Max.) |
| Consumption | 1.85/2.2W (Typ./Max.) | Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| STM | MSBKT2407P30HB | 1 pcs | 30pins | 1.0mm | |
AUO G229HAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
- | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type |
Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | 3808K-F08N-12R | - | 8 pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Current | 0.47/0.56A (Typ./Max.) | Input Voltage | 12.0V (Typ.) |
| Consumption | 5.7/6.72W (Typ./Max.) |
AUO G229HAN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 28pcs / box | 22.5 Kgs | 730*480*280 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G229HAN01.0. Please include your application and required quantity so we can confirm the applicable revision.
