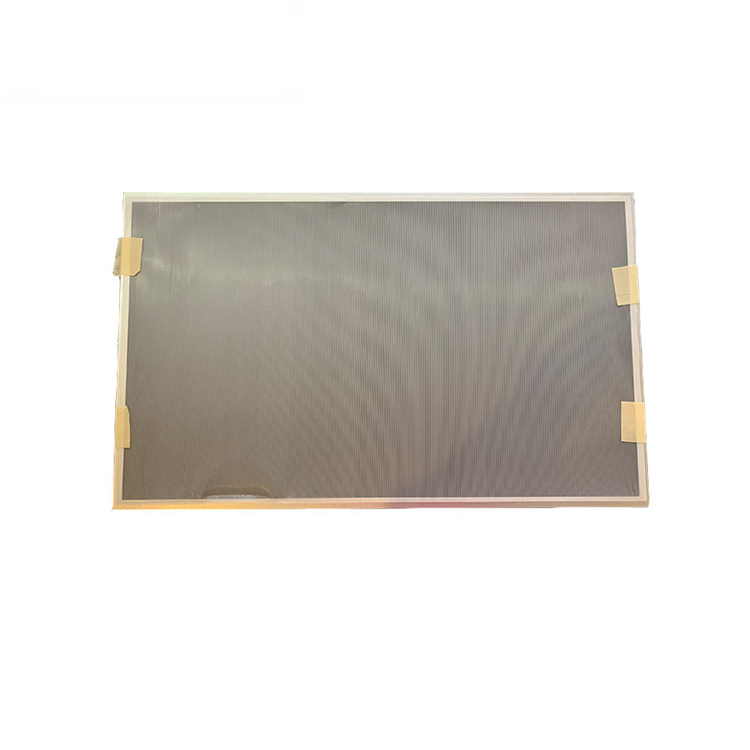

AUO G230HAN01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G230HAN01.1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 23.0” | Designed For | Industrial,Medical Imaging | |
| Maximum Ratings : | OP Temperature | 0 ~~ 50 °C | ST Temperature | -20 ~~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight,Upside I/F, Matte | |||
AUO G230HAN01.1 Optical Details
| Basic Information : | Luminance | 300cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 97% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G230HAN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.0884*0.2652 (H×V) | Pixel Pitch(mm) | 0.2652*0.2652 (H*V) [95PPI] | |
| Physical Size : | Active Viewing(mm) | 509.184(H) *286.416(V) | Outline Dim.(mm) | 533.2(H) *312(V) |
| Bezel Area (mm) | 513.784(H) *291.016(V) | Outline Depth(mm) | 10.5±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.50±0.15Kgs | Surface | Antiglare |
AUO G230HAN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption: | 19.7W (Typ.) |
AUO G230HAN01.1 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 1.17/1.27A (Typ./Max.) | ||||
| Consumption | 5.9/6.4W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||||

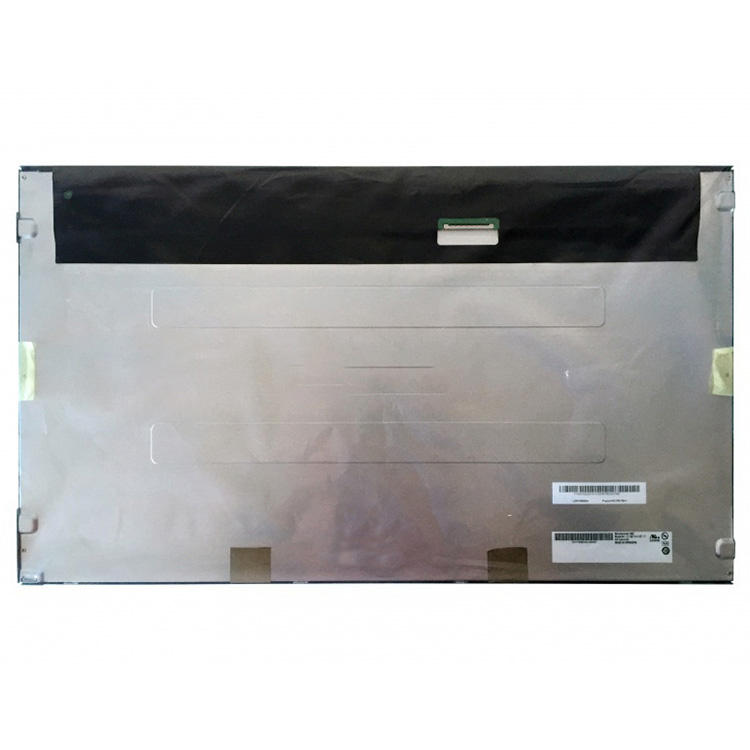

| Interface Features : | Position | Rear | Type | Connector | ||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | ||
| JAE | FI-XB30SSRLA-HF16 | 1 pcs | 30pins | 1.0mm | LVDS-30P2C8B-160C | |||
AUO G230HAN01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 18S4P | Position | - | |||||||
| Exchange | - | Lamp Shape | 4 strings | Lamp Life | 30K(Min.) (Hours) | ||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | |||||||||
| Backlight Driver : | No | ||||||||||||
| Lamp Electrical : | Voltage Supply | 57.6/64.8V (Typ./Max.) | Current Supply | 60mA (Typ.) | |||||||||
| Consumption | 13.8/15.6W (Typ./Max.) | ||||||||||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | |||||||
| 7182K-F06N-00L | 1 pcs | 6 pins | BLE-6PINS-CCAACC | ||||||||||
AUO G230HAN01.1 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 8pcs / box | 15.5 Kgs | 620*220*415 mm (L*W*H) |
Contact us to request the current datasheet and mechanical drawing for G230HAN01.1. Please include your application and required quantity so we can confirm the applicable revision.
