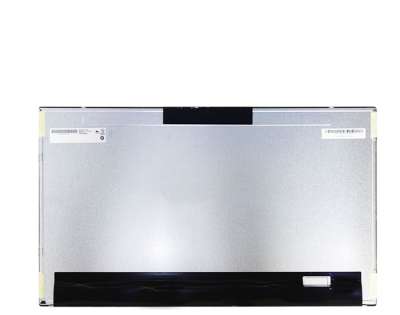

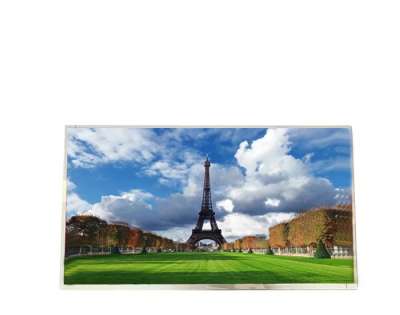

AUO G238HAN01.3 23.8 Inch FHD LCD Display – 600nits High Brightness AHVA Industrial Panel
Product Overview
The AUO G238HAN01.3 is a 23.8-inch industrial-grade TFT-LCD display module manufactured by AU Optronics (AUO). First launched in Q4 2019, this panel delivers stunning Full HD resolution (1920×1080) in a 16:9 widescreen format, making it an excellent choice for industrial control systems, medical imaging equipment, semi-outdoor kiosks, and professional displays requiring high brightness and reliable performance.
Key differentiator: With an exceptional 600 cd/m² high brightness—approximately twice as bright as standard industrial displays (typically 250-350 cd/m²)—the G238HAN01.3 ensures excellent visibility even in high-ambient-light environments such as semi-outdoor kiosks, brightly lit factory floors, and medical operating rooms.
Equipped with AHVA (AUO Advanced wide Viewing Angle) technology—similar to IPS—this display offers full 89°/89°/89°/89° viewing angles with no grayscale inversion effect. The Normally Black mode provides deeper blacks and better contrast in dark environments. With 1000:1 contrast ratio, 50,000-hour WLED backlight life, and 72% NTSC color gamut, the G238HAN01.3 delivers exceptional visual performance for demanding professional applications.
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G238HAN01.3 |
Screen Size | 23.8 inch |
Resolution | FHD 1920 × 1080 |
Pixel Density | 92 PPI |
Aspect Ratio | 16:9 |
Display Technology | a-Si TFT-LCD, AMVA, Normally Black, Transmissive |
Brightness | 600 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89°/89°/89°/89° (Full) |
Response Time | 14 ms (Typ.)(G to G) |
Display Colors | 16.7M (6-bit + Hi-FRC) |
Color Gamut | 72% NTSC |
Color Temperature | 6485K |
White Chromaticity | Wx:0.313, Wy:0.329 |
Interface | LVDS (2 ch, 8-bit), 30 pins |
Connector | MSBKT2407P30HB (1.0mm pitch) |
Backlight Type | WLED, Edge light type (Bottom side), 20S4P |
Backlight Life | 50,000 hours (Min.) |
LED Driver | Not included (external driver required) |
Touch Panel | No (custom touch upgrades available) |
Operating Temperature | 0°C ~50°C |
Storage Temperature | -20°C ~ 60°C |
Vibration Resistance | 1.5G (14.7 m/s²) |
Active Area | 527.04 × 296.46 mm |
Outline Dimension | 540.44 × 315.86 × 11.65 mm |
Bezel Opening | 530.2 × 299.6 mm |
Surface Treatment | Anti-Glare (Matte), Hard coating (3H) |
Weight | 2.30Kgs (Typ.) |
Refresh Rate | 60Hz |
Flip Scanning | No |
Mounting | Side mounting holes (4-M3) on left, right bezel |
Production Status | In Production |
Key Advantages
1. 600 cd/m² High Brightness – Semi-Outdoor Ready
The G238HAN01.3 delivers an exceptional 625 cd/m² typical brightness—approximately twice as bright as standard industrial displays. Key benefits include:
Excellent semi-outdoor visibility — perfect for kiosks, EV charging stations, and outdoor-adjacent installations
Clear readability in high-ambient-light environments — factory floors with bright overhead lighting, hospital operating rooms
Superior performance for daylight conditions — no need for additional shading or enclosures
72% NTSC color gamut — vibrant, accurate colors even at high brightness levels
2. AHVA Wide Viewing Angle Technology
The G238HAN01.3 incorporates AUO's proprietary AHVA technology (similar to IPS), delivering full 89-degree viewing angles in all directions. Key benefits include:
Excellent off-axis readability — no color shift or contrast loss from any angle
Superior color consistency — accurate colors across the entire viewing cone
No grayscale inversion — unlike conventional TN panels
Normally Black mode — deeper blacks and better contrast in dark environments
3. FHD Resolution & Wide Color Gamut (1920×1080, 72% NTSC)
The 1920×1080 Full HD resolution with 92 PPI pixel density and 72% NTSC color gamut delivers:
Crisp, detailed imagery for industrial HMI and medical imaging
Sharp text rendering for data-intensive applications
16.7M colors (6-bit + Hi-FRC) for smooth color gradations
6485K color temperature for neutral white balance
4. Long-Life Backlight with 50,000 Hours Lifespan
The panel features a 50,000-hour WLED backlight life (20S4P configuration):
50,000-hour lifespan — significantly reduces maintenance costs in continuous operation
Edge-type design (bottom side) — uniform illumination across the display
Ideal for 24/7 operation — reliable performance for always-on industrial applications
4 strings configuration — robust backlight redundancy
Note: This model does NOT include a built-in LED driver. An external backlight driver circuit is required (input voltage: 64/72V Typ./Max., current: 95mA Typ.)
5. LVDS Interface for Industrial Compatibility
The dual-channel LVDS (2 ch, 8-bit) interface with 30-pin connector offers:
Stable signal transmission over longer distances
Wide compatibility with industrial controllers, embedded PCs, and SoCs
5.0V logic voltage — standard industrial levels
Proven reliability in industrial environments
6. Industrial-Grade Durability
50,000-hour WLED backlight life — long-term reliability for continuous operation
1.5G vibration resistance (14.7 m/s²) — suitable for transportation and industrial equipment
Anti-glare matte surface with 3H hard coating — reduces reflections, provides scratch resistance
RoHS compliant — meets global environmental standards
TC0 6.0 Compliance — energy efficiency standards
In Production status — stable supply since Q4 2019 for ongoing production needs
7. Standard 16:9 Form Factor for Easy Integration
527.04 × 296.46 mm active area — standard 23.8-inch FHD size
543 × 317.4 × 11.65 mm outline — fits standard industrial enclosures
Side mounting holes (4-M3) on left and right bezel — secure installation
Landscape orientation — designed for landscape mode operation
Applications
The AUO G238HAN01.3 is designed for demanding industrial, medical, and commercial applications requiring high brightness and environmental durability::
Application Area | Specific Use Cases |
Industrial HMI | Factory automation panels, machine control interfaces, PLC terminals, SCADA systems |
Medical Equipment | Diagnostic displays, patient monitoring systems, surgical displays, PACS workstations |
Semi-Outdoor Kiosks | EV charging station displays, ticketing machines, information kiosks, ATMs |
Professional Displays | Broadcast monitors, video editing workstations, control room displays |
Digital Signage | Indoor/covered outdoor advertising displays, menu boards, public information screens |
Gaming & Amusement | Gaming machines, slot displays, arcade cabinets |
Test & Measurement | Lab equipment displays, oscilloscopes, analyzers |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Touch panel upgrades, custom cables, optical bonding
Order Information
Item | Details |
Model | AUO G238HAN01.3 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Production Status | In Production |
Comparison reference between AUO G215HAN01.501 and models of the same series/size:
Comparison item | G238HAN01.3 | G238HAN04.0 | G238HAN01.0 | Ordinary 23.8-inch industrial screen |
Brightness | 600 cd/m² | 350 cd/m² | 400 cd/m² | 250-350 cd/m² |
Backlight life | 50000 hours | 30000 hours | 50000 hours | 30,000-50,000hours |
color gamut | 72% NTSC | 72% NTSC | 72% NTSC | 50-72% NTSC |
Operating Temperature | 0~50°C | 0~60°C | 0~50°C | 0~50°C |
vibration resistance | 1.5G | unlabeled | unlabeled | partially unlabeled |
LED driver | None (requiring external) | None (requiring external) | None (requiring external) | Partially included/partially excluded |
Main applications | Semi-outdoor/highlighted | Indoor standard | Indoor standard | Indoor |
