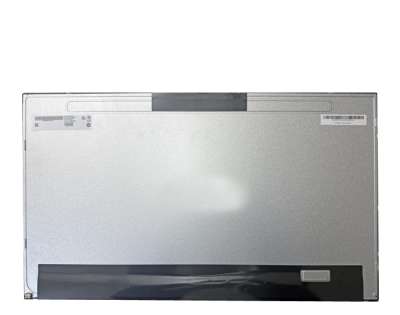

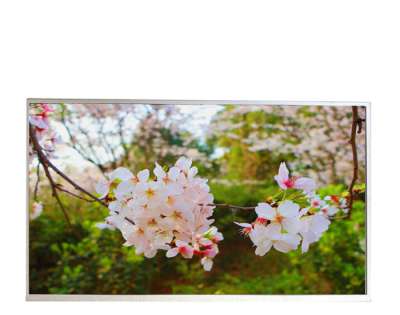

AUO G238HAN01.5 23.8 Inch FHD LCD Display – 1800:1 High Contrast AHVA Industrial Panel
Product Overview
The AUO G238HAN01.5 is a 23.8-inch industrial-grade TFT-LCD display module manufactured by AU Optronics (AUO). First launched in Q3 2021, this panel delivers stunning Full HD resolution (1920×1080) in a 16:9 widescreen format, making it an excellent choice for medical imaging equipment, industrial control systems, professional monitors, and high-end commercial displays requiring superior image quality and long-term reliability.
Key differentiator: With an exceptional 1800:1 contrast ratio—approximately twice as high as standard industrial displays (typically 1000:1)—the G238HAN01.5 delivers deeper blacks, brighter whites, and significantly more vivid images. This makes it particularly suitable for medical imaging (PACS), diagnostic displays, and professional graphics applications where accurate grayscale reproduction and image depth are critical.
Equipped with AHVA (AUO Advanced wide Viewing Angle) technology—similar to IPS—this display offers full 89°/89°/89°/89° viewing angles with no grayscale inversion effect. The Normally Black mode provides deeper blacks and better contrast in dark environments. With 350 cd/m² brightness, 50,000-hour WLED backlight life, and 72% NTSC color gamut, the G238HAN01.5 delivers exceptional visual performance for demanding professional applications.
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G238HAN01.5 |
Screen Size | 23.8 inch |
Resolution | FHD 1920 × 1080 |
Pixel Density | 92 PPI |
Aspect Ratio | 16:9 |
Display Technology | a-Si TFT-LCD, AMVA, Normally Black, Transmissive |
Brightness | 350 cd/m² (Typ.) |
Contrast Ratio | 1800:1 (Typ.) (Transmissive) |
Viewing Angle | 89°/89°/89°/89° (Full) |
Response Time | 14 ms (Typ.)(G to G) |
Display Colors | 16.7M (8-bit) |
Color Gamut | 72% NTSC |
Color Temperature | 6485K |
White Chromaticity | Wx:0.313, Wy:0.329 |
Interface | LVDS (2 ch, 8-bit), 30 pins |
Connector | Shin-Etsu MSBKT2407P30HB (1.0mm pitch) |
Backlight Type | WLED, Edge light type (Bottom side) |
Backlight Life | 50,000 hours (Min.) |
LED Driver | Not included (external driver required) |
Touch Panel | No (custom touch upgrades available) |
Operating Temperature | 0°C ~50°C |
Storage Temperature | -20°C ~ 60°C |
Vibration Resistance | 1.5G (14.7 m/s²) |
Active Area | 527.04 × 296.46 mm |
Outline Dimension | 540.44 × 315.86 × 11.65 mm |
Bezel Opening | 530.2 × 299.6 mm |
Surface Treatment | Anti-Glare (Matte), Hard coating (3H) |
Weight | TBD |
Refresh Rate | 60Hz |
Flip Scanning | No |
Mounting | Side mounting holes (4-M3) on left, right bezel |
Production Status | In Production |
Key Advantages
1. 1800:1 Ultra-High Contrast Ratio
The G238HAN01.5 delivers an industry-leading 1800:1 contrast ratio—approximately twice as high as standard industrial displays (typically 1000:1). Key benefits include:
Exceptional black levels — perfect for medical imaging and dark environment viewing
Superior image depth — enhanced visual experience for diagnostic applications
Excellent grayscale reproduction — critical for PACS and medical displays
Vibrant, lifelike colors — 72% NTSC color gamut for accurate color reproduction
2. AHVA Wide Viewing Angle Technology
The G238HAN01.5 incorporates AUO's proprietary AHVA technology (similar to IPS), delivering full 89-degree viewing angles in all directions. Key benefits include:
Excellent off-axis readability — no color shift or contrast loss from any angle.
Superior color consistency — accurate colors across the entire viewing cone.
No grayscale inversion — unlike conventional TN panels.
Normally Black mode — deeper blacks and better contrast in dark environments.
3. FHD Resolution & Wide Color Gamut (1920×1080, 72% NTSC)
The 1920×1080 Full HD resolution with 92 PPI pixel density and 72% NTSC color gamut delivers:
Crisp, detailed imagery for medical imaging and industrial HMI .
Sharp text rendering for data-intensive applications.
16.7M colors (8-bit) for smooth color gradations.
6485K color temperature for neutral white balance.
4. Long-Life Backlight with 50,000 Hours Lifespan
The panel features a 50,000-hour WLED backlight life:
50,000-hour lifespan — significantly reduces maintenance costs in continuous operation.
Edge-type design (bottom side) — uniform illumination across the display.
Ideal for 24/7 operation — reliable performance for always-on industrial applications.
Low power consumption — 3.65W Max for backlight
Note: This model does NOT include a built-in LED driver. An external backlight driver circuit is required.
5. LVDS Interface for Industrial Compatibility
The dual-channel LVDS (2 ch, 8-bit) interface with 30-pin connector offers:
Stable signal transmission over longer distances .
Wide compatibility with industrial controllers, embedded PCs, and SoCs .
5.0V logic voltage — standard industrial levels .
Proven reliability in industrial environments.
6. Industrial-Grade Durability
50,000-hour WLED backlight life — long-term reliability for continuous operation
1.5G vibration resistance (14.7 m/s²) — suitable for transportation and industrial equipment
Anti-glare matte surface with 3H hard coating — reduces reflections, provides scratch resistance
RoHS compliant — meets global environmental standards
In Production status — stable supply since Q3 2021 for ongoing production needs
7. Standard 16:9 Form Factor for Easy Integration
527.04 × 296.46 mm active area — standard 23.8-inch FHD size
543 × 317.4 × 11.65 mm outline — fits standard industrial enclosures
Side mounting holes (4-M3) on left and right bezel — secure installation
Landscape orientation — designed for landscape mode operation
Applications
The AUO G238HAN01.5 is designed for demanding professional, medical, and industrial applications requiring superior image quality and reliability::
Application Area | Specific Use Cases |
Industrial HMI | Factory automation panels, machine control interfaces, SCADA systems |
Medical Imaging | PACS workstations, diagnostic displays, surgical monitors, patient monitoring |
Semi-Outdoor Kiosks | EV charging station displays, ticketing machines, information kiosks, ATMs |
Professional Monitors | Video editing, graphic design, broadcast monitors |
High-End Commercial Displays | Corporate meeting rooms, command centers, control rooms |
Gaming & Simulation | Professional gaming displays, simulation systems |
Security & Surveillance | Monitoring stations, control room displays |
Test & Measurement | Lab equipment displays, oscilloscopes, analyzers |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Touch panel upgrades, custom cables, optical bonding
Order Information
Item | Details |
Model | AUO G238HAN01.5 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Production Status | In Production |
Comparison reference between AUO G215HAN01.501 and models of the same series/size:
Comparison item | G238HAN01.5 | G238HAN01.3 | G238HAN04.0 | Ordinary 23.8-inch industrial screen |
Contrast | 1800:1 | 1000:1 | 1000:1 | 1000:1 |
Brightness | 350 cd/m² | 600 cd/m² | 350 cd/m² | 250-350 cd/m² |
Backlight life | 50000 hours | 50000 hours | 30000 hours | 30,000-50,000hours |
color gamut | 72% NTSC | 72% NTSC | 72% NTSC | 50-72% NTSC |
Operating Temperature | 0~50°C | 0~50°C | 0~60°C | 0~50°C |
vibration resistance | 1.5G | 1.5G | unlabeled | partially unlabeled |
LED driver | None (requiring external) | None (requiring external) | None (requiring external) | Partially included/partially excluded |
Main applications | Medical/Professional Display | Semi-outdoor/highlighted | Indoor standard | Indoor |
