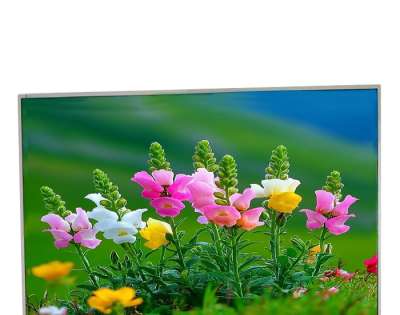

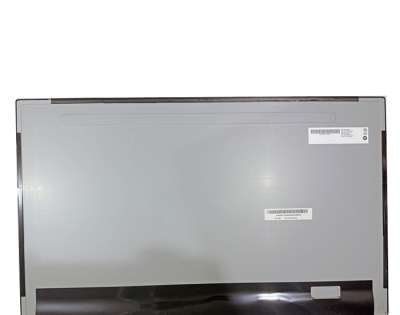

AUO G238HAN04.0 23.8 Inch FHD LCD Display – AHVA Industrial Panel
Product Overview
The AUO G238HAN04.0 is a 23.8-inch industrial-grade TFT-LCD display module manufactured by AU Optronics (AUO). This panel delivers stunning Full HD resolution (1920×1080) in a 16:9 widescreen format, making it an excellent choice for industrial control systems, medical equipment, office monitors, and embedded applications requiring high image quality and reliable performance.
Key differentiator: Equipped with AHVA (AUO Advanced wide Viewing Angle) technology—similar to IPS—this display offers full 89°/89°/89°/89° viewing angles with no grayscale inversion effect. The Normally Black mode provides deeper blacks and better contrast in dark environments. With 350 cd/m² brightness, 1000:1 contrast ratio, and 30,000-hour WLED backlight life, the G238HAN04.0 delivers exceptional visual performance for indoor professional applications.
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G238HAN04.0 |
Screen Size | 23.8 inch |
Resolution | FHD 1920 × 1080 |
Pixel Density | 92 PPI |
Aspect Ratio | 16:9 |
Display Technology | a-Si TFT-LCD, AMVA, Normally Black, Transmissive |
Brightness | 350 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89°/89°/89°/89° (Full) |
Response Time | 14 ms (Typ.)(G to G) |
Display Colors | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K |
White Chromaticity | Wx:0.313, Wy:0.329 |
Interface | LVDS (2 ch, 8-bit), 30 pins |
Backlight Type | WLED, Edge light type (Bottom side) |
Backlight Life | 30,000 hours (Min.) |
LED Driver | Not included (external driver required) |
Touch Panel | No (custom touch upgrades available) |
Operating Temperature | 0°C ~60°C |
Storage Temperature | -20°C ~ 60°C |
Active Area | 527.04 × 296.46 mm |
Outline Dimension | 540.44 × 315.86 × 12.2 mm |
Surface Treatment | Anti-Glare (Matte), Hard coating (3H) |
Refresh Rate | 60Hz |
Flip Scanning | No |
Production Status | In Production |
Key Advantages
1. AHVA Wide Viewing Angle Technology
The G238HAN04.0 incorporates AUO's proprietary AHVA technology (similar to IPS), delivering full 89-degree viewing angles in all directions. Key benefits include:
Excellent off-axis readability — no color shift or contrast loss from any angle
Superior color consistency — accurate colors across the entire viewing cone
No grayscale inversion — unlike conventional TN panels
Normally Black mode — deeper blacks and better contrast in dark environments
2. FHD Resolution & High Pixel Density (1920×1080, 92 PPI)
The 1920×1080 Full HD resolution with 92 PPI pixel density delivers:
Crisp, detailed imagery for industrial HMI and medical imaging
Sharp text rendering for data-intensive applications
16.7M colors (6-bit + Hi-FRC) for smooth color gradations
6485K color temperature for neutral white balance
3. Excellent Image Quality (1000:1 Contrast Ratio)
The combination of 1000:1 contrast ratio and 350 cd/m² brightness ensures:
Deep blacks and vivid colors for professional applications
Clear visibility in office and indoor industrial environments
Excellent readability for long-duration viewing sessions
4. LVDS Interface for Industrial Compatibility
The dual-channel LVDS (2 ch, 8-bit) interface with 30-pin connector offers:
Stable signal transmission over longer distances
Wide compatibility with industrial controllers, embedded PCs, and SoCs
5.0V logic voltage — standard industrial levels
Proven reliability in industrial environments
5. Long-Life Backlight (30,000 Hours)
The panel features a 30,000-hour WLED backlight life:
30,000-hour lifespan — reduces maintenance costs in continuous operation
Edge-type design — uniform illumination across the display
Ideal for 24/7 operation — reliable performance for always-on industrial applications
Note: This model does NOT include a built-in LED driver. An external backlight driver circuit is required
6. Anti-Glare Surface Treatment
The matte anti-glare surface with 3H hard coating provides:
Reduced reflections in high-ambient-light environments
Scratch resistance for daily use durability
Enhanced readability in office and industrial lighting conditions
7. Industrial-Grade Durability
0°C ~ 60°C operating temperature — suitable for indoor industrial environments
RoHS compliant — meets global environmental standards
In Production status — stable supply for ongoing production needs
Applications
The AUO G238HAN04.0 is designed for a wide range of industrial, medical, and commercial applications:
Application Area | Specific Use Cases |
Industrial HMI | Factory automation panels, machine control interfaces, PLC terminals, SCADA systems |
Medical Equipment | Diagnostic displays, patient monitoring systems, medical imaging workstations |
Office Monitors | Desktop monitors, professional displays, productivity workstations |
Embedded Systems | Industrial PCs, kiosk displays, interactive terminals |
Digital Signage | Indoor information displays, public information kiosks, menu boards |
Security & Surveillance | Monitoring stations, control room displays |
Test & Measurement | Lab equipment displays, oscilloscopes, analyzers |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Touch panel upgrades, custom cables, optical bonding
Order Information
Item | Details |
Model | AUO G238HAN04.0 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Production Status | In Production |
Comparison reference between AUO G215HAN01.501 and models of the same series/size:
Comparison item | G238HAN04.0 | G238HAN01.1 | Advantages Description |
Brightness | 350 cd/m² | 400 cd/m² | Standard industrial brightness, suitable for indoor applications |
Backlight life | 30000 hours | 50000 hours | Standard lifespan, cost optimization |
Operating Temperature | 0~60°C | 0~50°C | A slightly wide high temperature range |
Resolution | FHD (1920×1080) | FHD (1920×1080) | Same |
Contrast | 1000:1 | 1000:1 | Same |
display technology | AHVA | AMVA | Same, full-view technology |
LED driver | No | No | All require external drive |
Main applications | Industrial/Office/Medical | Industrial/Medical | Wider application scope |
