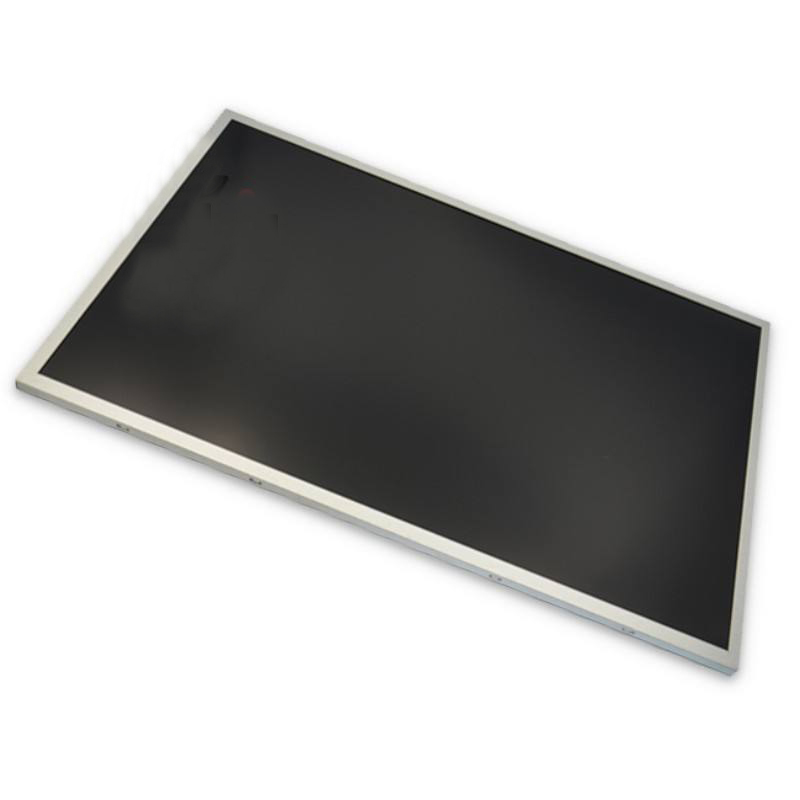

AUO G240UAN01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G240UAN01.1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 24.0” | Designed For | Industria，Medical Imaging，Outdoor High Brighness |
| Maximum Ratings : | OP Temperature | 0 ~~ 40 °C | ST Temperature | -20 ~~ 50 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | DCI-P3,Srgb,Hight Brightness,WLED Backlight,Life>=50K hours,WLED Backlight,With LED Driver,Upside I/F, Matte,10bit |
AUO G240UAN01.1 Optical Details
| Basic Information : | Luminance | 850cd/m²(Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 1.18/1.25 (Typ./Max.)(9 points) |
| Color Temperature | 6485K | White Variation | 1.18/1.25 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 88% | sRGB | 100% coverage |
| Adobe RGB | 80% coverage | DCI-P3 | 90% coverage |
| Rec.2020 | 65% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
AUO G240UAN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1200, WUXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.090*0.270 mm | Pixel Pitch(mm) | 0.270*0.270 mm (H*V) [94PPI] |
| Physical Size : | Active Viewing(mm) | 518.4*324 mm (H*V) | Outline Dim.(mm) | 546.4*352 mm (H*V) |
| Bezel Area (mm) | 521.4*327.0 mm (H*V) | Outline Depth(mm) |
18.6 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 2.50Kgs (Typ.) | Surface | Antiglare |
AUO G240UAN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption: | 47.18W (Typ.) |
AUO G240UAN01.1 Interface Detail
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply |
0.4/0.6A (Typ./Max.) |
| Consumption | 4.8/7.2W (Typ./Max.) | Signal Interface | LVDS (2 ch, 10-bit) |

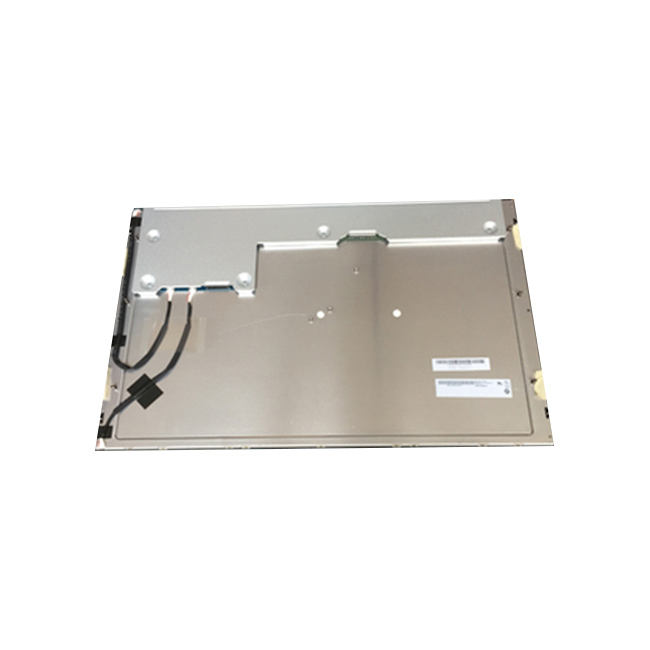

| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-RE51S-HF-CM-R1500 | 1 pcs | 51pins | 0.5mm | |
AUO G240UAN01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
- | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Lamp Electrical : | Voltage Input | 37.2/41.1A (Typ./Max.) | Current Input | 65mA (Typ.) |
| Consumption | 33.9/37.8W (Typ./Max.) |
| Interface Features : | Position | - | Physical Type | Connector |
| Backlight Driver : | With LED Driver |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
JST | S14B-PH-SM6-K-TB | 1 pcs | 14 pins | 2.0 mm | |
| Driver Electrical : | Voltage Supply | 24.0±0.5V | Current Supply | 1.77/2.12A (Typ./Max.) |
| Consumption | 42.38/43.37W (Typ./Max.) |
AUO G240UAN01.1 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 6pcs / box | 17.3 Kgs | 630*245*450 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G240UAN01.1. Please include your application and required quantity so we can confirm the applicable revision.
