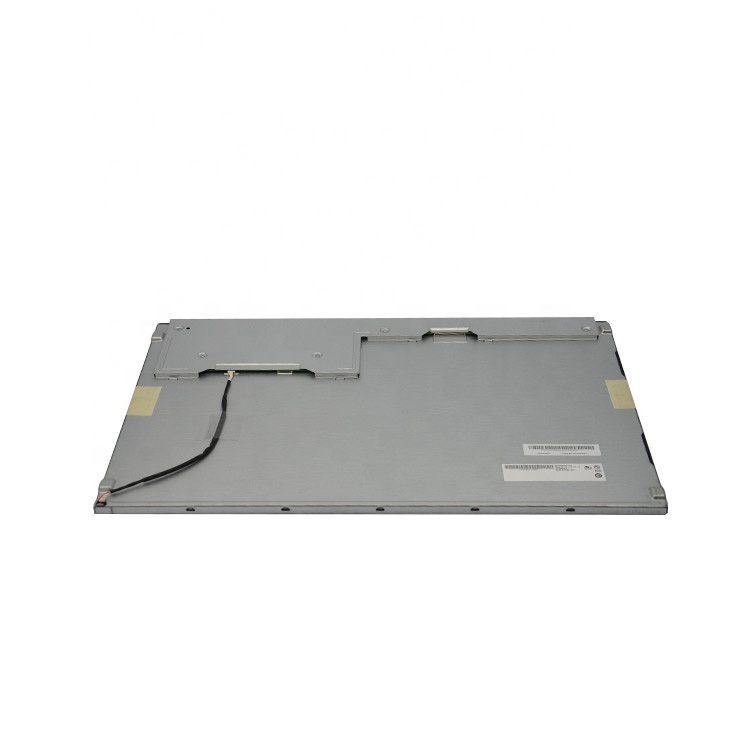

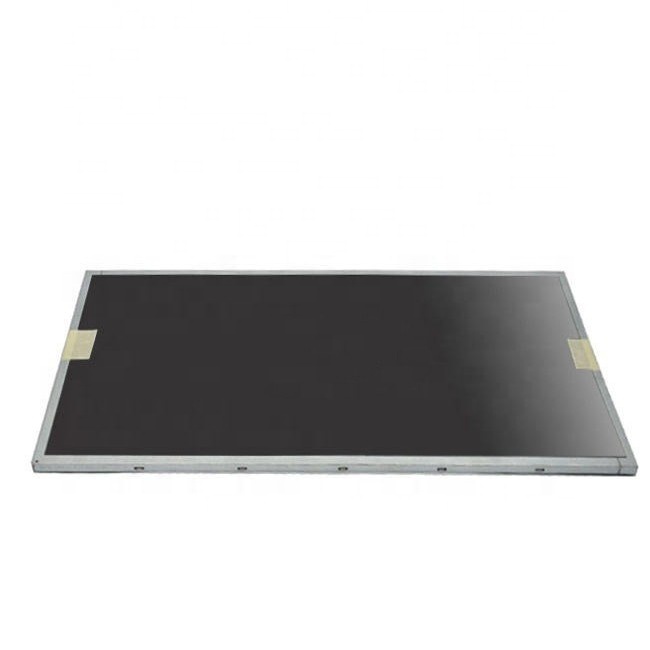

AUO G240UAN01.2 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | G240UAN01.2 |
| Diagonal Size | 24.0inch | Application | Industrial |
| Panel Type | a-Si TFT-LCD , LCM | | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~60 °C |
| RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) |
| Specific Features : | DCI-P3，Adobe RGB,Srgb,WLED Backlight，Upside I/F, Matte |
AUO G240UAN01.2 Mechanical Details
| Pixel Features : | Pixel Format | 1920(RGB)*1200, WUXGA | Dot Pitch (mm) | 0.090*0.270 (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch (mm) | 0.270*0.270 (H*V) [94PPI] |
| Mechanical Size : | Display Area(mm) | 518.4(H) *324(V) | Outline Dim. | 522.4(H) *328(V) |
| Outline Dim.(mm) | 546.4(H) * 352(V) | Overall Depth | 8.9/13.85 (Typ./Max.) |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | |
| Holes & Brackets : | Side mounting holes (4-3) on left, right bezel |
| Other Detail : | Mass | 2.62Kgs (Typ) | Surface | Antiglare |
AUO G240UAN01.2 Optical Details
| Brightness | Brightness | 410 cd/m²(Typ.) | Contrast Ratio | 1350:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AMVA, Normally Black, Transmissivee |
| Viewing Direction | Symmetry | Response Time | 22 (Typ.)(Tr+Td) |
| Color Performance : | Chromaticity | Wx:0.306; Wy:0.309 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 7129K | Uniformity | 1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 109% |
sRGB
| 100% coverage |
| Adobe RGB | 100% coverage | DCI-P3 | 99% coverage |
| Rec.2020 |
82% coverage
| Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G240UAN01.2 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 29.16W (Max.) |
AUO G240UAN01.2 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | 15S4P | Life Time | 30K(Min.) (Hours) |
| Replacement | - | Lamp Shape | 4 strings | Position | Edge light type |
| Lamp Electrical : | Voltage Supply | 42/45/51V (Min./Typ./Max.) | Current Supply | 90mA (Typ.) |
| Consumption | 16.2/18.36W (Typ./Max.) |
Interface Features :
| Type | Connector | Position | Down left corner | Lamp Driver | No |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| CviLux | CI1406M1HRN-NH1 | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC |
AUO G240UAN01.2 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - |
| Signal Electrical : | Current Supply | 0.7/0.9A (Typ./Max.) | Input Voltage | 12.0V (Typ.) |
| Consumption | 8.4/10.8W (Typ./Max.) | | |
| Interface Features : | Type |
Connector | Position | Upper right of panel |
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-RE51S-HF-R1500 | 0.5mm | 51pins | 1 pcs | |
AUO G240UAN01.3 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 7 pcs / box | 20.7 Kgs | 650*460*265 mm |
-
