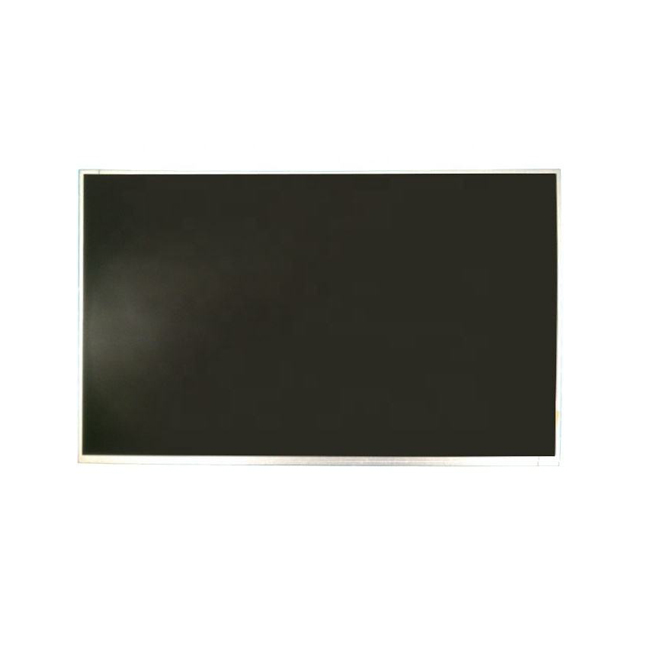

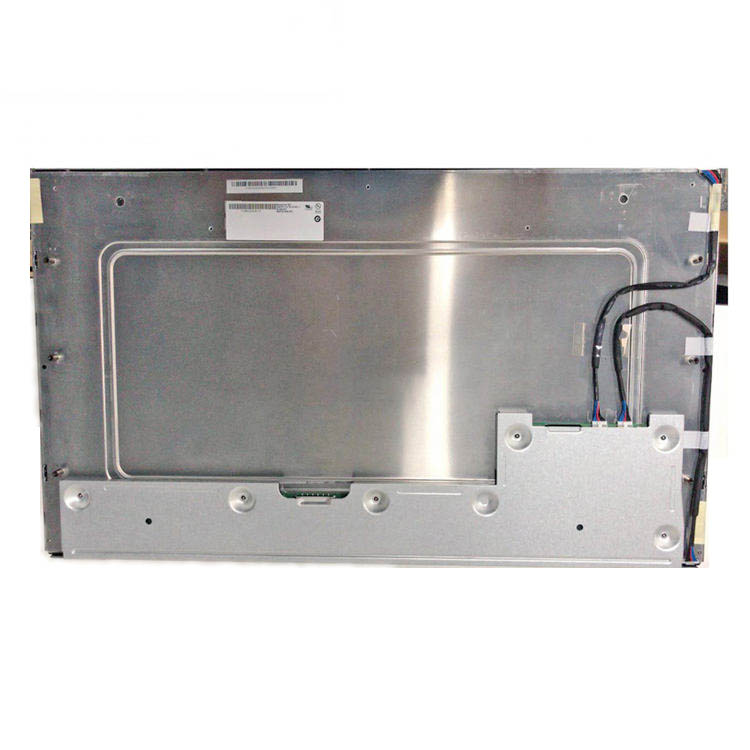

AUO G270HAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G270HAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 27.0” | Designed For | Industria， Outdoor High Brighness |
| Maximum Ratings : | OP Temperature | 0 ~~ 50 °C | ST Temperature | -20 ~~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | DCI-P3,Srgb,Hight Brightness,WLED Backlight,Life>=50K hours,With LED Driver,Reverse I/F, Matte,10bit |
AUO G270HAN01.0 Optical Details
| Basic Information : | Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 1.07B (10-bit) |
| Color Temperature | 6485K | White Variation | 1.18/1.25 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 89% | sRGB | 100% coverage |
| Adobe RGB | 84% coverage | DCI-P3 | 91% coverage |
| Rec.2020 | 66% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
AUO G270HAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.1038*0.3114 mm | Pixel Pitch(mm) | 0.3114*0.3114 mm [81PPI] |
| Physical Size : | Active Viewing(mm) | 597.888(W)*336.312(H) mm | Outline Dim.(mm) | 630(W)*368.2(H) mm |
| Bezel Area (mm) | 602(W)*340.4(H) mm | Outline Depth(mm) | 23.4 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Other Features : | Weight | 3.40Kgs (Typ.) | Surface | Antiglare |
AUO G270HAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption: | 43.69W (Typ.) |
AUO G270HAN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 0.2/0.5A (Typ./Max.) |
| Consumption | 2.4/6.0W (Typ./Max.) | Signal Interface | LVDS |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-RE51S-HF-CM-R1500 | 1 pcs | 51pins | 0.5mm | |
AUO G270HAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Top and Bottom) |
| Exchange |
- | Lamp Shape | 10 strings *2CN | Lamp Life | 50K(Min.) (Hours) |
| Lamp Electrical : | Voltage Input | 27/30.6V (Typ./Max.) | Current Input | 65mA (Typ.) |
| Consumption | 35.1/39.78W (Typ./Max.) |
| Interface Features : | Position | - | Physical Type |
Connector |
| Backlight Driver : | With LED Driver |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
JST | S14B-PH-SM6-K-TB | 1 pcs | 14 pins | 2.0 mm | |
| Driver Electrical : | Voltage Supply | 24.0±1.2V | Current Supply | 1.72/1.95A (Typ./Max.) |
| Consumption | 41.29/46.8W (Typ./Max.) |
AUO G270HAN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 5pcs / box | 20Kgs | 730*270*470 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G270HAN01.0. Please include your application and required quantity so we can confirm the applicable revision.
