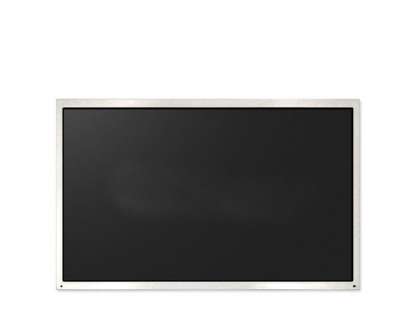

1.AUO G270HAN01.1 Application Details
Basic Info : | Panel Brand | AUO | Panel Model | G270HAN01.1 |
Diagonal Size | 27" | Application | Industrial,Medical Imaging,Outdoor High Brightness | |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
RoHS State | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Specific Features : | DCI-P3,Srgb,Ultra High Brightness,WLED Backlight,Life≥50K hours,With LED Driver,Reverse I/F,10bit,Matte | |||
2. AUO G270HAN01.1 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch (W×H) | 0.1038×0.3114 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.3114×0.3114 mm [81PPI] | |
Mechanical Size : | Display Area (mm) | 597.888(W)×336.312(H) | Overall Dim. | 630(W)×368.2(H) mm |
Bezel Opening | 602(W)×340.4(H) mm | Overall Depth | 23.4 (Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style | ||
Holes & Brackets : | Side mounting holes, Rear mounting holes | |||
Other Detail : | Mass | 3.40Kgs (Typ.) | Surface | Antiglare |
3.AUO G270HAN01.1 Optical Details
Basic Information : | Brightness | 1000 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 14 (Typ.)(Tr+Td) (ms) | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (10-bit) |
Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 89% | sRGB | 100% coverage |
Adobe RGB | 84% coverage | DCI-P3 | 91% coverage | |
Rec.2020 | 66% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4.AUO G270HAN01.1 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 43.69W (Typ.) |
5.AUO G270HAN01.1 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) (Hours) | |||
Replacement | - | Lamp Shape | - | Position | Edge light type (Top and Bottom) | ||||
Interface Features : | Type | Connector | Position | - | Backlight Driver : | With LED Driver | |||
Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment | |||
JST | S14B-PH-SM6-K-TB | 1 pcs | 2.0 mm | 14 pins | |||||
Driver Electrical : | Input Current | 1.72/1.95A (Typ./Max.) | Input Voltage | 24.0±1.2V | |||||
Consumption | 41.29/46.8W (Typ./Max.) | ||||||||
6.AUO G270HAN01.1 Interface Detail
Signal Systerm : | LVDS | Consumption | 2.4/6.0W (Typ./Max.) | |||||||
Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 0.2/0.5A (Typ./Max.) | ||||||
Interface Features : | Type | Connector | Position | Down middle of panel | ||||||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment | ||||
JAE | FI-RE51S-HF-R1500 | 1pcs | 0.5 mm | 51 pins | ||||||
7.AUO G270HAN01.1 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
5 | 730×270×470 | 20.00 |
