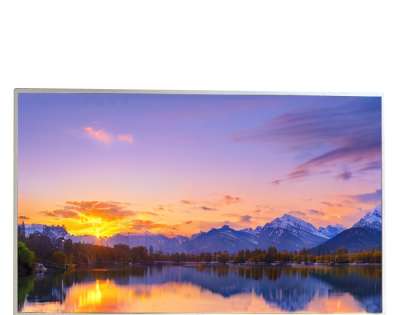

AUO G270QAN01.4 27 Inch QHD LCD Display – 2000:1 High Contrast AHVA Industrial Panel
Product Overview
The AUO G270QAN01.4 is a 27.0-inch industrial-grade TFT-LCD display module manufactured by AU Optronics (AUO). This panel delivers stunning Quad-HD resolution (2560×1440) in a 16:9 widescreen format, specifically engineered for industrial HMI, medical imaging equipment, professional design workstations, and video editing applications requiring exceptional image clarity and high contrast.
Key differentiator: With an outstanding 2000:1 contrast ratio—twice as high as standard IPS panels (typically 1000:1)—the G270QAN01.4 delivers deeper blacks, brighter whites, and significantly more vivid images. Combined with QHD resolution (2560×1440, 108 PPI)—approximately 78% more pixels than FHD—this panel offers exceptional detail and image depth for professional applications.
Equipped with AHVA (AUO Advanced Hyper-Viewing Angle) technology—similar to IPS—this display offers full 89/89/89/89° viewing angles with no grayscale inversion effect. The Normally Black mode provides deeper blacks and better contrast in dark environments. With 400 cd/m² brightness, 50,000-hour WLED backlight life, and an anti-glare matte surface, the G270QAN01.4 delivers exceptional visual performance for the most demanding professional environments.
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G270QAN01.4 |
Screen Size | 27.0 inch |
Resolution | QHD 2560 × 1440 |
Pixel Density | 108 PPI |
Aspect Ratio | 16:9 |
Display Technology | a-Si TFT-LCD, AHVA, Normally Black, Transmissive |
Brightness | 400 cd/m² (Typ.) |
Contrast Ratio | 2000:1 (Typ.) (Transmissive) |
Viewing Angle | 89°/89°/89°/89° (Full) |
Response Time | - |
Display Colors | 16.7M (8-bit) |
Color Gamut | 80% NTSC |
Color Temperature | 6485K |
White Chromaticity | Wx:0.313, Wy:0.329 |
Interface | LVDS (4 ch, 8-bit), 92 pins |
Connector | 92-pin terminal, 0.5mm pitch |
Backlight Type | WLED, Edge light type |
Backlight Life | 50,000 hours (Min.) |
LED Driver | Not included (external driver required) |
Touch Panel | No (custom touch upgrades available) |
Operating Temperature | 0°C ~ 50°C |
Storage Temperature | -20°C ~ 60°C |
Vibration Resistance | 1.5G (14.7 m/s²) |
Active Area | 596.74 × 335.66 mm |
Outline Dimension | 630.0 × 368.2 mm |
Surface Treatment | Anti-Glare (Matte), Hard coating |
Weight | 3.15Kgs (Typ.) |
Refresh Rate | 60Hz |
Flip Scanning | No |
Logic Voltage | 5.0V (Typ.) |
Production Status | In Production |
Key Advantages
1. QHD Resolution (2560×1440) – 78% More Pixels than FHD
The G270QAN01.4 delivers stunning Quad-HD resolution with 108 PPI pixel density—approximately 78% more pixels than standard FHD (1920×1080) displays. Key benefits include:
Exceptional image detail — perfect for medical imaging, CAD/CAM, and graphic design
More screen real estate — multitask with multiple windows side by side
Sharper text rendering — reduced eye strain during long work sessions
Crisp, detailed imagery — ideal for data visualization and monitoring
2. 2000:1 Ultra-High Contrast Ratio
The G270QAN01.4 delivers a remarkable 2000:1 contrast ratio—twice as high as standard IPS panels (typically 1000:1). Key benefits include:
Exceptional black levels — perfect for medical imaging and dark environment viewing
Superior image depth — enhanced visual experience for diagnostic applications
Excellent grayscale reproduction — critical for PACS and medical displays
Vibrant, lifelike colors — 80% NTSC color gamut for accurate color reproduction
3. AHVA Wide Viewing Angle Technology
The G270QAN01.4 incorporates AUO's proprietary AHVA technology (Advanced Hyper-Viewing Angle), delivering full 89-degree viewing angles in all directions. Key benefits include:
Excellent off-axis readability — no color shift or contrast loss from any angle
Superior color consistency — accurate colors across the entire viewing cone
No grayscale inversion — unlike conventional TN panels
Normally Black mode — deeper blacks and better contrast in dark environments
4. High Brightness & Long Life Backlight (400 cd/m², 50,000 hrs)
The panel features a 400 cd/m² typical brightness and 50,000-hour WLED backlight life:
Excellent visibility in office and industrial environments with standard lighting
50,000-hour lifespan — significantly reduces maintenance costs in continuous operation
Edge-type design — uniform illumination across the display
Ideal for 24/7 operation — reliable performance for always-on industrial applications
Note: This model does NOT include a built-in LED driver. An external backlight driver circuit is required.
5. LVDS Interface for Industrial Compatibility
The 4-channel LVDS (4 ch, 8-bit) interface with 92-pin connector offers:
High bandwidth — sufficient for QHD resolution at 60Hz
Stable signal transmission over longer distances
Wide compatibility with industrial controllers, embedded PCs, and SoCs
5.0V logic voltage — standard industrial levels
6. Anti-Glare Surface Treatment
The matte anti-glare surface provides:
Reduced reflections in office and industrial lighting conditions
Reduced eye strain during long work sessions
Enhanced readability in brightly lit environments
7. Industrial-Grade Durability
50,000-hour WLED backlight life — long-term reliability for continuous operation
1.5G vibration resistance (14.7 m/s²) — suitable for transportation and industrial equipment
0°C ~ 50°C operating temperature — suitable for indoor professional environments
RoHS compliant — meets global environmental standards
In Production status — stable supply for ongoing production needs
Applications
The AUO G270QAN01.4 is designed for professional, medical, and industrial applications requiring exceptional resolution and contrast:
Application Area | Specific Use Cases |
Industrial HMI | Factory automation panels, SCADA systems, process monitoring, control rooms |
Medical Imaging | Diagnostic displays, PACS workstations, surgical monitors, medical imaging |
Professional Design | Graphic design workstations, CAD/CAM displays, architectural visualization |
Video Editing & Post-Production | Color grading monitors, video editing suites, animation workstations |
Security & Surveillance | Control room displays, monitoring stations |
Financial Trading | Trading desk displays, financial data visualization |
Scientific Research | Lab equipment displays, data analysis workstations |
Gaming & Simulation | Professional simulation displays, high-end gaming monitors |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Touch panel upgrades, custom cables, optical bonding
Order Information
Item | Details |
Model | AUO G270QAN01.4 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Production Status | In Production |
Comparison reference between AUO G215HAN01.501 and models of the same series/size:
Comparison item | G270QAN01.4 | G270QAN01.3 | Common 27-inch FHD industrial screen | Advantages Description |
Contrast | 2000:1 | 1600:1 | 1000：1 | Highest contrast, with deeper blacks |
Resolution | QHD (2560×1440) | QHD (2560×1440) | FHD (1920×1080) | 78% more pixels |
Pixel density | 108 PPI | 108 PPI | 81 PPI | With a higher PPI, the text appears clearer |
Brightness | 400 cd/m² | 400 cd/m² | 250-350 cd/m² | Higher brightness, suitable for professional environments |
Backlight life | 50000 hours | 30000 hours | 30,000-50,000 hours | Longer lifespan, suitable for continuous operation |
display technology | 80% NTSC | 98% DCI-P3 | 72% NTSC | Wide Color Gamut |
Main applications | Industry/Medical/Design | Professional design/medical | General Industryevident | Multi-scenario coverage |
