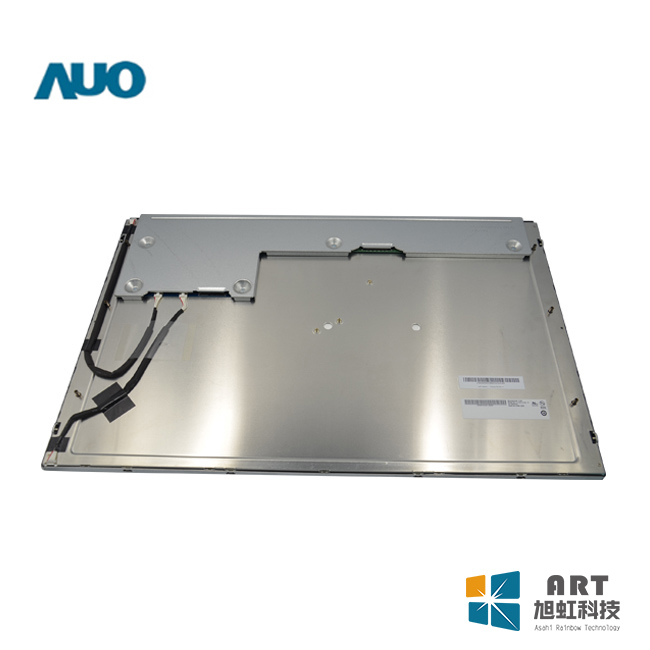

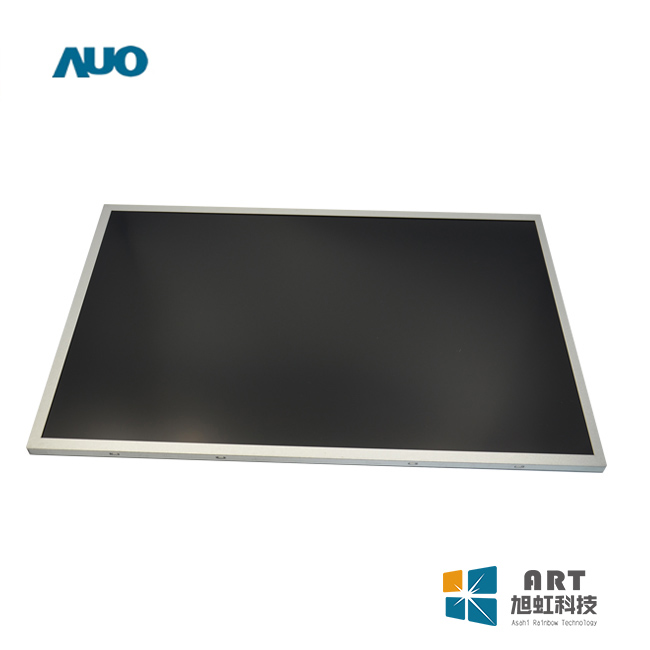

AUO G270ZAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G270ZAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 27.0” | Designed For | Industria，Medical Imaging Outdoor High Brighness |
| Maximum Ratings : | OP Temperature | 0 ~~ 40 °C | ST Temperature | -20 ~~ 50 °C |
| RoHS | RoHS | Vibration Level |
|
| Features : | Wide Color Gamut,DCI-P3,Srgb,Hight Brightness,WLED Backlight,Life>=50K hours, With LED Driver,Reverse I/F, Matte,10bit |
AUO G270ZAN01.0 Optical Details
| Basic Information : | Luminance | 800cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 16/25 (Typ./Max.)(Tr+Td) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.18/1.25 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 94% | sRGB | 100% coverage |
| Adobe RGB | 86% coverage | DCI-P3 | 91% coverage |
| Rec.2020 | 69% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
AUO G270ZAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 3840(RGB)*2160, UHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.05175*0.15525 mm (H*V) | Pixel Pitch(mm) | 0.15525*0.15525 mm (H*V) [163PPI] |
| Physical Size : | Active Viewing(mm) | 596.16*335.34 mm (H*V) | Outline Dim.(mm) | 630*368.2 mm (H*V) |
| Bezel Area (mm) | 602.0*340.4 mm (H*V) | Outline Depth(mm) |
22/23.4 (Typ./Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 3.40Kgs (Typ.) | Surface | Antiglare |
AUO G270ZAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption: | 64.8W (Typ.) |
AUO G270ZAN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply |
0.9/1.08A (Typ./Max.) |
| Consumption | 10.8/11.88W (Typ./Max.) | Signal Interface | eDP (2 ch, 4 Lanes), HBR1 (2.7G/lane) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-RTE51SZ-HF | 1 pcs | 51pins | 0.5mm | |
AUO G270ZAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
- | Lamp Shape | 10 strings × 2CN | Lamp Life | 30K(Min.) (Hours) |
| Lamp Electrical : | Voltage Input | 33/37.4V (Typ./Max.) | Current Input | 75mA (Typ.) |
| Consumption | - |
| Interface Features : | Position | - | Physical Type |
Connector |
| Backlight Driver : | With LED Driver |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
JST | S14B-PH-SM6-K-TB | 1 pcs | 14 pins | 2.0 mm | |
| Driver Electrical : | Voltage Supply | 24.0±2.4V | Current Supply | 2.25/2.7A (Typ./Max.) |
| Consumption | 54/59.4W (Typ./Max.) |
AUO G270ZAN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 5pcs / box | 20Kgs | 730*265*470 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G270ZAN01.0. Please include your application and required quantity so we can confirm the applicable revision.
