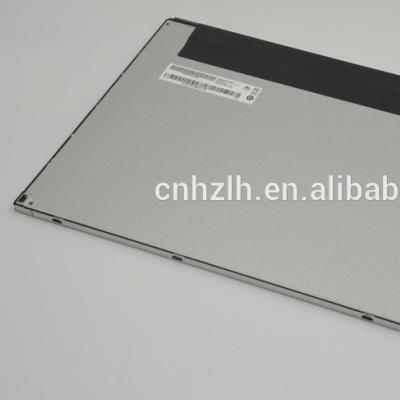

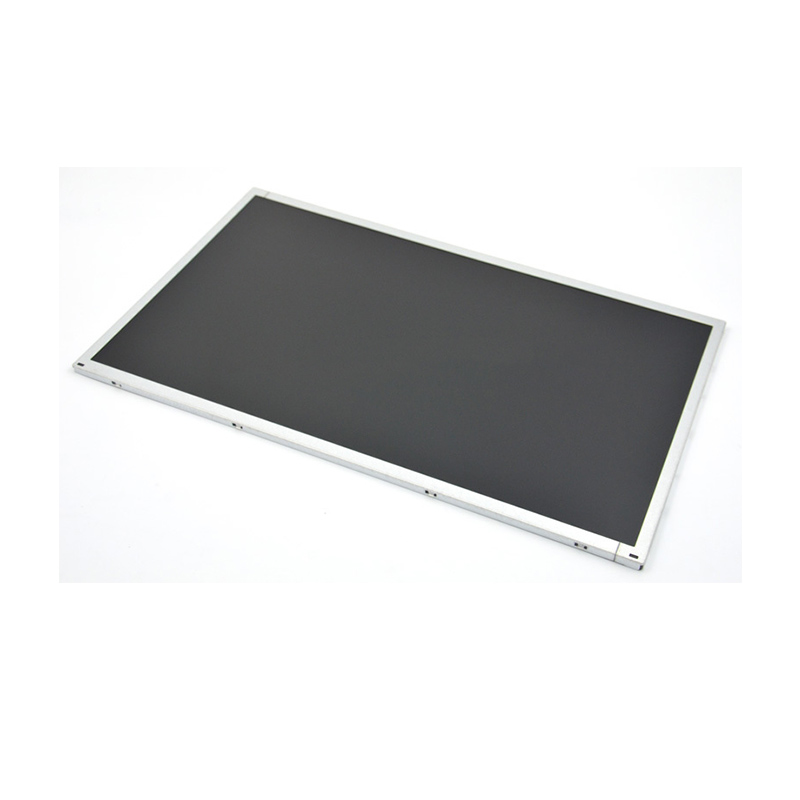

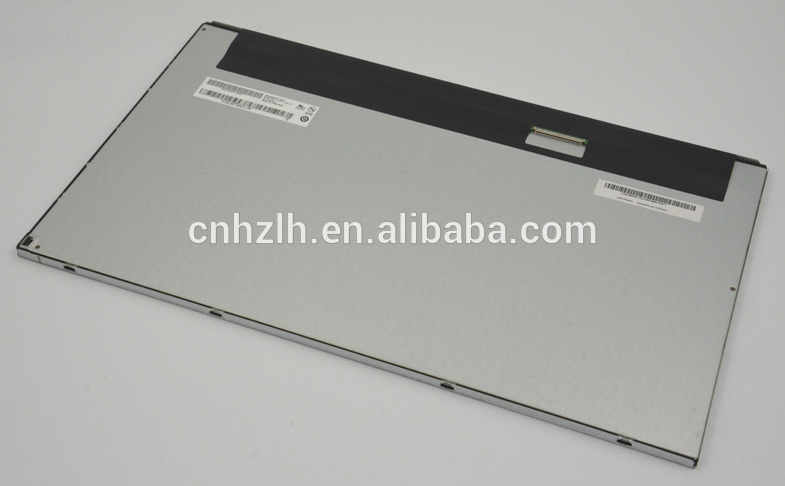

G270ZAN01.4 Industrial 27" Glossy IPS TFT Display | High Brightness LCD Panel

  • G270ZAN01.4 Industrial 27" Glossy IPS TFT Display | High Brightness LCD Panel
  • G270ZAN01.4 Industrial 27" Glossy IPS TFT Display | High Brightness LCD Panel
  • Model:G270ZAN01.4
  • Brand:AUO
  • Size:27.0inch
  • Resolution:3840×2160
  • Brightness:800 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:eDP
  • Operating Temp.:0 ~ 50 °C
  • Production State:Discontinued
  • Request a Quote
  • Technical Parameters
  • AUO G270ZAN01.4 Application Details

    Basic Info :Panel BrandAUOPanel ModelG270ZAN01.4
    Diagonal Size27.0inchApplicationIndustrial,Medical Imaging,Outdoor High Brightness
    Panel Typea-Si TFT-LCD , LCM
    Reliability :Operating Temp.0 ~ 50 °CStorage Temp.-20 ~60 °C
    RoHS StateRoHSVibration Rating
    Specific Features :Wide Color Gamut,Hight Brightness,WLED Backlight,Life>=50K hours,Glossy


    AUO G270ZAN01.4 Mechanical Details

    Pixel Features :Pixel Format3840(RGB)*2160, UHDDot Pitch0.05175*0.15525 mm (H*V)
    ConfigurationRGB Vertical StripePixel Pitch (mm)0.15525*0.15525 mm (H*V)  [163PPI]
    Mechanical Size :Display Area596.16*335.14 mm (H*V)Bezel Area-
    Outline Features :Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio16:9 (H:V)Shape Style
    Other Detail :Mass-SurfaceGlare (Haze 0%)


    AUO G270ZAN01.4 Optical Details

    BrightnessBrightness800 cd/m²(Typ.)Contrast Ratio1000:1 (Typ.) (Transmissive)
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)Optical ModeAMVA, Normally Black, Transmissivee
    Viewing DirectionSymmetryResponse Time16 (Typ.)(Tr+Td)
    Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers16.7M (8-bit)
    Color Temperature6485KUniformity1.18/1.25 (Typ./Max.)(9 points)
    Dispaly Performance :Outdoor Visibility Sunlight ReadableTransmittance-


    AUO G270ZAN01.4 Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :No


    AUO G270ZAN01.4 Backlight Details

    Back-light Features :Lamp TypeWLEDAmount-Life Time50K(Min.) (Hours)
    Replacement-Lamp Shape-PositionEdge light type


    AUO G270ZAN01.4 Interface Details

    Signal Systerm :eDPLogic Voltage-



Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for G270ZAN01.4. Please include your application and required quantity so we can confirm the applicable revision.

Request G270ZAN01.4 Datasheet

Complete your display assembly

Build a display assembly around your selected LCD panel. Explore touch panels, LCD controller boards and signal or backlight cables.

Touch panels and bonding

Review touch dimensions, host connection, cover glass and bonding requirements.

LCD controller boards

Match the host video output to the panel interface, timing and power requirements.

Signal and backlight cables

Confirm both connector ends, pin mapping, cable length and backlight connections.

We will review the selected panel, controller firmware, cable pinout, power and touch configuration before confirming the proposed assembly. Send your quantity, application, delivery country and required date.

Request a matched display assembly
