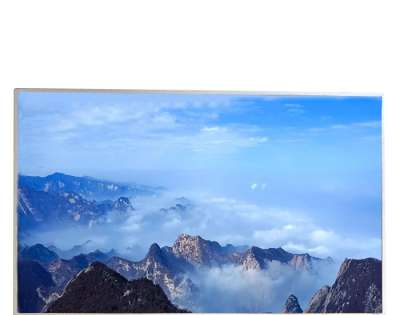

AUO G270ZAN02.1 27 Inch 4K UHD LCD Display – 850 nits 99% DCI-P3 Professional Panel
Product Overview
The AUO G270ZAN02.1 is a 27.0-inch professional-grade TFT-LCD display module manufactured by AU Optronics (AUO). This panel delivers stunning 4K UHD resolution (3840×2160) in a 16:9 widescreen format, specifically engineered for professional design workstations, medical imaging equipment, outdoor high-brightness kiosks, and video editing suites requiring exceptional resolution, color accuracy, and brightness performance.
Key differentiators:
4K UHD Resolution (3840×2160, 163 PPI) — 4 times the pixels of standard FHD displays
850 cd/m² Ultra-High Brightness — True sunlight readability for outdoor applications
99% DCI-P3 & 104% NTSC Ultra-Wide Color Gamut — Professional-grade color accuracy
10-bit Color Depth — 1.07 billion colors for ultra-smooth gradations
2000:1 High Contrast Ratio — Deep blacks and vivid image quality
Equipped with AMVA (AUO Advanced Multi-domain Vertical Alignment) technology, this display offers full 89/89/89/89° viewing angles with Normally Black mode for superior dark-room performance. With 850 cd/m² brightness, 2000:1 contrast ratio, and built-in LED driver, the G270ZAN02.1 delivers exceptional visual performance for the most demanding professional applications.
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G270ZAN02.1 |
Screen Size | 27.0 inch |
Resolution | 4K UHD 3840 × 2160 |
Pixel Density | 163 PPI |
Aspect Ratio | 16:9 |
Display Technology | a-Si TFT-LCD, AHVA, Normally Black, Transmissive |
Brightness | 850 cd/m² (Typ.) |
Contrast Ratio | 2000:1 (Typ.) (Transmissive) |
Viewing Angle | 89°/89°/89°/89° (Full) |
Response Time | 10/12 ms (Typ.)(Tr/Td) |
Display Colors | 1.07B (10-bit) |
Color Gamut | 104% NTSC, 100% sRGB, 99% DCI-P3, 94% Adobe RGB |
Color Temperature | 6485K |
White Chromaticity | Wx:0.313, Wy:0.329 |
Interface | eDP |
Backlight Type | WLED |
LED Driver | Built-in |
Touch Panel | No (custom touch upgrades available) |
Operating Temperature | 0°C ~ 50°C |
Storage Temperature | -20°C ~ 60°C |
Vibration Resistance | 1.5G (14.7 m/s²) |
Active Area | 596.16 × 335.34 mm |
Outline Dimension | 630.0 × 368.2 × 19.3 mm |
Surface Treatment | Mirror (Haze 0%) |
Weight | 3.20/3.36Kgs (Typ./Max.) |
Refresh Rate | 60Hz |
Power Consumption | 46.6W (Typ.) |
Sunlight Readability | Yes |
Production Status | In Production |
Key Advantages
1. 4K UHD Resolution (3840×2160) – 4X Pixels of FHD
The G270ZAN02.1 delivers stunning 4K UHD resolution with 163 PPI pixel density—4 times more pixels than standard FHD (1920×1080) displays. Key benefits include:
Exceptional image detail — perfect for graphic design, CAD/CAM, and medical imaging
Massive screen real estate — multitask with multiple windows without overlap
Ultra-sharp text rendering — no visible pixels, reduced eye strain
Crisp, detailed imagery — ideal for photo and video editing at native 4K resolution
2. 99% DCI-P3 Ultra-Wide Color Gamut – Professional Color Accuracy
The G270ZAN02.1 delivers industry-leading color performance with 104% NTSC, 100% sRGB, 99% DCI-P3, and 94% Adobe RGB coverage. Key benefits include:
Cinema-grade color reproduction — 99% DCI-P3 meets Hollywood post-production standards
Medical imaging ready — exceeds the color accuracy requirements for diagnostic displays
Photo editing excellence — 94% Adobe RGB coverage for print and professional photography
Vibrant, lifelike colors — 104% NTSC delivers stunning, saturated colors
3. 10-Bit Color Depth – 1.07 Billion Colors
The G270ZAN02.1 supports 10-bit color depth, displaying 1.07 billion colors—64 times more than standard 8-bit panels. Key benefits include:
Ultra-smooth color gradations — no visible banding in gradients
Superior image quality — perfect for medical imaging and professional video
Accurate color reproduction — essential for color-critical applications
4. 850 cd/m² Ultra-High Brightness – True Sunlight Readable
The G270ZAN02.1 delivers an exceptional 850 cd/m² typical brightness—approximately 2-3 times brighter than standard industrial displays. Key benefits include:
Perfect readability in direct sunlight — ideal for outdoor kiosks and digital signage
Clear visibility in high-ambient-light environments — factory floors, hospital operating rooms
Superior performance for all-weather outdoor applications — 24/7 operation in any lighting
Sunlight Readable certified — verified outdoor visibility
5. 2000:1 High Contrast Ratio + AMVA Technology
The G270ZAN02.1 delivers a 2000:1 contrast ratio with AMVA (Advanced Multi-domain Vertical Alignment) technology. Key benefits include:
Deep blacks and vivid colors — 2000:1 contrast ratio for enhanced image depth
Excellent off-axis readability — full 89/89/89/89° viewing angles with no color shift
Normally Black mode — superior dark-room performance for medical and control room applications
No grayscale inversion — unlike conventional TN panels
6. Mirror Surface (0% Haze) – Maximum Clarity
The G270ZAN02.1 features a mirror surface (Haze 0%) treatment. Key benefits include:
Maximum image clarity — no diffusion, sharpest possible image
Enhanced color vibrancy — colors appear more saturated and vivid
Ideal for controlled environments — medical, professional, and indoor applications
Superior contrast perception — mirror surface enhances perceived black levels
7. eDP Interface for High-Bandwidth Connectivity
The eDP (Embedded DisplayPort) interface offers:
High bandwidth — sufficient for 4K UHD resolution at 60Hz
Fewer signal lines — simplified cable management
Low EMI — better electromagnetic compatibility
Modern compatibility — ideal for current-generation processors and SoCs
8. Built-in LED Driver – Simplified Integration
The panel comes with a built-in LED driver:
No external driver design required — saves BOM cost and PCB space
Simplified system integration — plug-and-play backlight solution
Reduced development time — one less circuit to design
9. Industrial-Grade Reliability
1.5G vibration resistance — suitable for transportation and industrial equipment
0°C ~ 50°C operating temperature — suitable for indoor professional environments
RoHS compliant — meets global environmental standards
In Production status — stable supply for ongoing production needs
Applications
The AUO G270ZAN02.1 is designed for professional, medical, and industrial applications requiring exceptional resolution, brightness, and color accuracy:
Application Area | Specific Use Cases |
Professional Design | 4K graphic design workstations, CAD/CAM displays, architectural visualization |
Medical Imaging | Diagnostic displays, PACS workstations, surgical monitors, mammography |
Outdoor Digital Signage | High-brightness outdoor advertising, public information displays |
Outdoor Kiosks | EV charging station displays, ticketing machines, ATMs, wayfinding |
Video Editing & Post-Production | 4K color grading monitors, video editing suites, animation workstations |
Photography | Professional photo editing, print proofing, studio monitors |
Gaming & Simulation | Professional gaming displays, simulation systems, e-sports |
Control Rooms | PCommand center displays, security monitoring, traffic control |
Scientific Research | Lab equipment displays, data analysis, microscopy imaging |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Touch panel upgrades, custom cables, optical bonding
Order Information
Item | Details |
Model | AUO G270ZAN02.1 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Production Status | In Production |
Comparison reference between AUO G270ZAN02.1 and models of the same series/size:
Comparison item | G270ZAN02.1 | G270QAN01.3 | Common 27-inch FHD industrial screen | Advantages Description |
Contrast | 2000:1 | 1600:1 | 1000：1 | maximum contrast |
Resolution | 4K UHD (3840×2160) | QHD (2560×1440) | FHD (1920×1080) | 4 times FHD, highest resolution |
Pixel density | 163PPI | 108 PPI | 81 PPI | The highest PPI, the finest image |
Brightness | 850 cd/m² | 400 cd/m² | 250-350 cd/m² | 2-3 times brightness, readable in sunlight |
display technology | 99% DCI-P3 / 104% NTSC | 98% DCI-P3 | 72% NTSC | Widest color gamut, professional grade |
Color depth | 10-bit (1.07B colors) | 8-bit (16.7M colors) | 8-bit | 64 times the color, no discontinuity |
Display technology | AMVA | AMVA | TN/IPS | Normally black display, high contrast |
surface treatment | Mirror (0% Haze) | Anti-Glare | Anti-Glare | Mirror surface, maximum clarity |
Interface | eDP | LVDS | LVDS | Modern interface, high bandwidth |
Main applications | 4K professional/outdoor highlight/medical | Professional design/medical | General Industryevident | The most versatile high-end panele |
