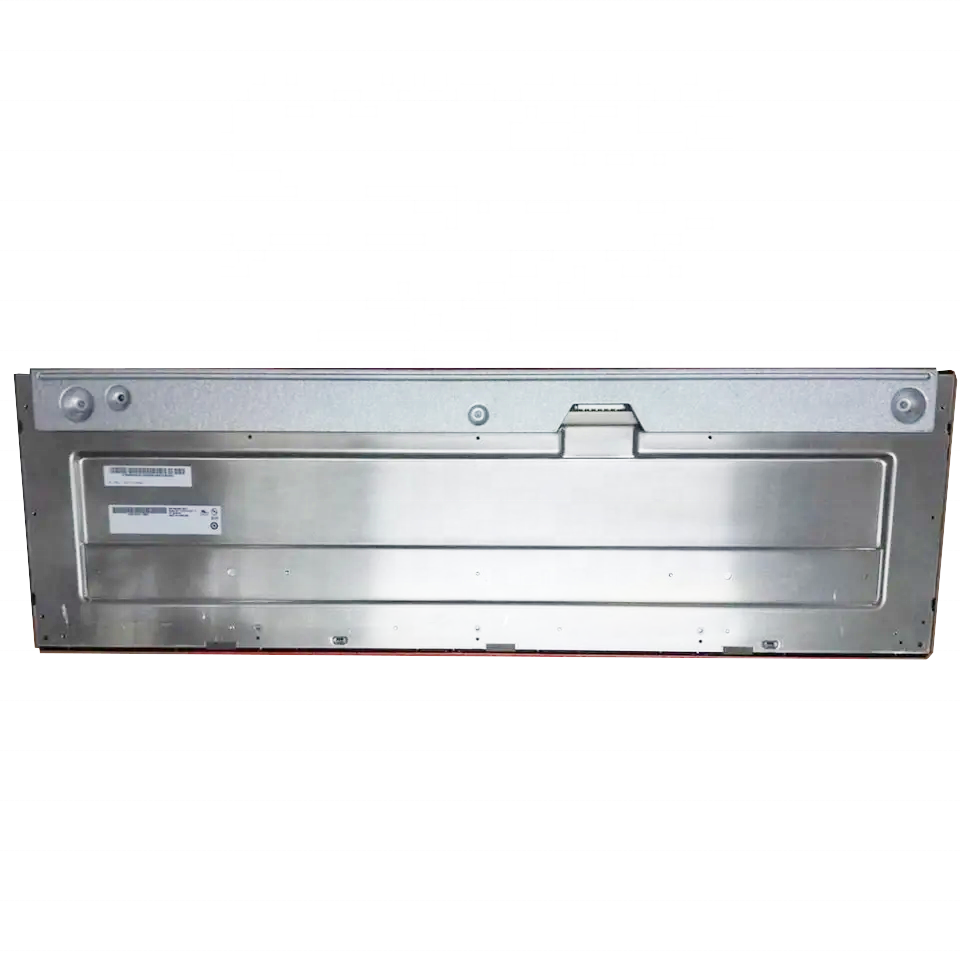

AUO G286HAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G286HAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 28.6" (1/2 cut of 32.0") | Designed For | Industria，Outdoor High Brightness，Stretched Bar LCD |
| Maximum Ratings : | OP Temperature | -10 ~~60 °C | ST Temperature | -20 ~~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Ultra High Brightness，WLED Backlight,Life>=50K hours, Bar Display,Upside I/F,Matte |
AUO G286HAN01.0 Optical Details
| Basic Information : | Luminance | 1000ccd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 16/9 (Typ.)(Tr/Td) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO G286HAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*540 | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.12125*0.36375 mm | Pixel Pitch(mm) | 0.36375*0.36375 mm [69PPI] |
| Physical Size : | Active Viewing(mm) | 698.4(W)*196.425(H) mm | Outline Dim.(mm) | 731.46(W)*229.49(H) mm |
| Bezel Area (mm) | 702.4(W)*200.43(H) mm | Outline Depth(mm) | 15.14/21.34 (Typ./Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | >3:1 | Orientation | Landscape type |
| Fixation | Side mounting holes (18-M3) on left, right, up, down bezel |
| Other Features : | Weight | 2.70Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G286HAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 44.96W (Max.) |
AUO G286HAN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply |
292mA (Max.) |
| Consumption |
3.5W (Max.) | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-RTE51SZ-HF | 1 pcs | 51pins | 0.5mm | |
AUO G286HAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
- | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Lamp Electrical : | Voltage Input | 38.4/43.2V (Typ./Max.) | Current Input | 120mA (Typ.) |
| Consumption | 36.86/41.46W (Typ./Max.) |
| Interface Features : | Position | - | Physical Type | Connector |
| Backlight Driver : | No |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
E&T | 3707K-S06N-01L | 1 pcs | 6 pins | 1.0mm | BLE-6PINS-AACCCC |
AUO G286HAN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 4pcs / box | - | 810*210*430 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G286HAN01.0. Please include your application and required quantity so we can confirm the applicable revision.
