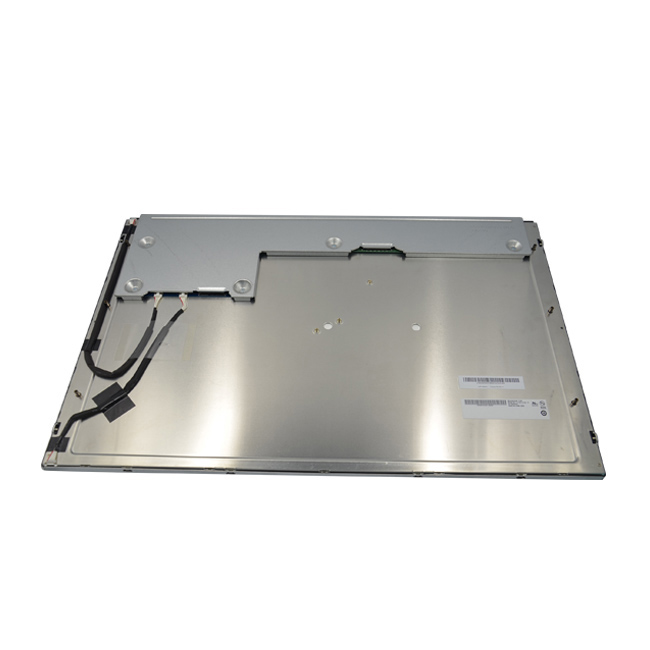

AUO G320ZAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G320ZAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 32.0” | Designed For | Industria，Medical Imaging |
| Maximum Ratings : | OP Temperature | 0 ~~ 50 °C | ST Temperature | -20 ~~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.0G (9.8 m/s²) |
| Features : | DCI-P3,Adobe RGB,Srgb,Hight Brightness,WLED Backlight,Life>=50K hours, With LED Driver, Matte,10bit |
AUO G320ZAN01.0 Optical Details
| Basic Information : | Luminance | 700cd/m²(Typ.) | Contrast Ratio | 1350 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 8/10 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.28 (Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 105% | sRGB | 100% coverage |
| Adobe RGB | 100% coverage | DCI-P3 | 95% coverage |
| Rec.2020 | 79% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
AUO G320ZAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 3840(RGB)*2160, UHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0615*0.1845 mm | Pixel Pitch(mm) | 0.1845*0.1845 mm [137PPI] |
| Physical Size : | Active Viewing(mm) | 708.48(W)*398.52(H) mm | Outline Dim.(mm) | 727.3(W)*424.5(H) mm |
| Bezel Area (mm) | 714.48(W)×404.52(H) mm | Outline Depth(mm) |
20.48±0.5 mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Fixation | Rear mounting holes |
| Other Features : | Weight | 4.63±0.46Kgs | Surface | Antiglare |
AUO G320ZAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO G320ZAN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 1.2/1.44A (Typ./Max.) |
| Consumption | 14.4/17.28W (Typ./Max.) | Signal Interface | V-by-One 8 lane |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | FI-RTE51S-HF | 1 pcs | 51pins | 0.5mm | |
AUO G320ZAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
- | Lamp Shape | | Lamp Life | 30K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type |
Connector |
| Backlight Driver : | With LED Driver |
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
JST | S14B-PH-SM6-K-TB | 2 pcs | 14 pins | 2.0 mm | |
| Driver Electrical : | Voltage Supply | 24.0±0.5V | Current Supply | 4.05/4.59A (Typ./Max.) |
| Consumption | 97.13/110.08W (Typ./Max.) |
AUO G320ZAN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 4pcs / box | 27.0Kgs | 820*220*535 mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G320ZAN01.0. Please include your application and required quantity so we can confirm the applicable revision.
