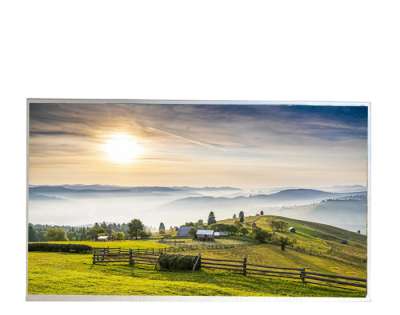

AUO G320ZAN02.2 32 Inch 4K UHD LCD Display – 850 nits 98% DCI-P3 Professional Panel
Product Overview
The AUO G320ZAN02.2 is a 32.0-inch professional-grade TFT-LCD display module manufactured by AU Optronics (AUO). First launched in Q2 2022, this panel delivers stunning 4K UHD resolution (3840×2160) in a 16:9 widescreen format, specifically engineered for professional design workstations, medical imaging equipment, outdoor high-brightness kiosks, and digital signage applications requiring exceptional resolution, color accuracy, and brightness performance.
Key Differentiators:
4K UHD Resolution (3840×2160, 137 PPI) — 4 times the pixels of standard FHD displays
850 cd/m² Ultra-High Brightness — True sunlight readability for outdoor applications
98% DCI-P3 & 100% Adobe RGB Ultra-Wide Color Gamut — Professional-grade color accuracy
10-bit Color Depth — 1.07 billion colors for ultra-smooth gradations
1800:1 High Contrast Ratio — Deep blacks and vivid image quality
Equipped with AHVA (AUO Advanced wide Viewing Angle) technology—similar to IPS—this display offers full 89/89/89/89° viewing angles with Normally Black mode for superior dark-room performance. With 850 cd/m² brightness, 1800:1 contrast ratio, 30,000-hour WLED backlight life, and a built-in LED driver, the G320ZAN02.2 delivers exceptional visual performance for the most demanding professional applications.
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G320ZAN02.2 |
Screen Size | 32.0 inch |
Resolution | 4K UHD 3840 × 2160 |
Pixel Density | 137 PPI |
Aspect Ratio | 16:9 |
Display Technology | a-Si TFT-LCD, AHVA, Normally Black, Transmissive |
Brightness | 850 cd/m² (Typ.) |
Contrast Ratio | 1800:1 (Typ.) (Transmissive) |
Viewing Angle | 89°/89°/89°/89° (Full) |
Response Time | 22 ms (Typ.)(Tr+Td) |
Display Colors | 1.07B (10-bit) |
Color Gamut | 110% NTSC, 100% sRGB, 100% Adobe RGB, 98% DCI-P3, 82% Rec.2020 |
Color Temperature | 6485K |
White Chromaticity | Wx:0.313, Wy:0.329 |
Interface | eDP (4 Lanes), HBR2 (5.4G/lane) |
Connector | 51 pins JAE FI-RE51S-HF (0.5mm pitch) |
Backlight Type | WLED, Edge light type |
Backlight Life | 30,000 hours (Min.) |
LED Driver | Built-in |
Touch Panel | No (custom touch upgrades available) |
Operating Temperature | 0°C ~ 50°C |
Storage Temperature | -20°C ~ 60°C |
Vibration Resistance | 1.0G (9.8 m/s²) |
Active Area | 708.48 × 398.52 mm |
Outline Dimension | 727.3 × 424.5 × 20.48 mm |
Bezel Opening | 714.48 × 404.52 mm |
Surface Treatment | Anti-Glare (Matte) |
Weight | 4.63Kgs (Typ.) |
Refresh Rate | 60Hz |
Power Consumption | 133W (Max.) |
Sunlight Readability | Yes |
Production Status | In Production |
Key Advantages
1. 4K UHD Resolution (3840×2160) – 4X Pixels of FHD
The G320ZAN02.2 delivers stunning 4K UHD resolution with 137 PPI pixel density—4 times more pixels than standard FHD (1920×1080) displays. Key benefits include:
Exceptional image detail — perfect for graphic design, CAD/CAM, and medical imaging
Massive screen real estate — multitask with multiple windows without overlap
Ultra-sharp text rendering — no visible pixels, reduced eye strain
Crisp, detailed imagery — ideal for photo and video editing at native 4K resolution
2. Ultra-Wide Color Gamut – 98% DCI-P3 & 100% Adobe RGB
The G320ZAN02.2 delivers industry-leading color performance with 110% NTSC, 100% sRGB, 100% Adobe RGB, 98% DCI-P3, and 82% Rec.2020 coverage. Key benefits include:
Cinema-grade color reproduction — 98% DCI-P3 meets Hollywood post-production standards
Photo editing excellence — 100% Adobe RGB coverage for print and professional photography
Medical imaging ready — exceeds the color accuracy requirements for diagnostic displays
Vibrant, lifelike colors — 110% NTSC delivers stunning, saturated colors
3. 10-Bit Color Depth – 1.07 Billion Colors
The G320ZAN02.2 supports 10-bit color depth, displaying 1.07 billion colors—64 times more than standard 8-bit panels. Key benefits include:
Ultra-smooth color gradations — no visible banding in gradients
Superior image quality — perfect for medical imaging and professional video
Accurate color reproduction — essential for color-critical applications
4. 850 cd/m² Ultra-High Brightness – True Sunlight Readable
The G320ZAN02.2 delivers an exceptional 850 cd/m² typical brightness—approximately 2-3 times brighter than standard industrial displays. Key benefits include:
Perfect readability in direct sunlight — ideal for outdoor kiosks and digital signage
Clear visibility in high-ambient-light environments — factory floors, hospital operating rooms
Superior performance for all-weather outdoor applications — 24/7 operation in any lighting
Sunlight Readable certified — verified outdoor visibility
5. 1800:1 High Contrast Ratio + AHVA Technology
The G320ZAN02.2 delivers an 1800:1 contrast ratio with AHVA (AUO Advanced wide Viewing Angle) technology. Key benefits include:
Deep blacks and vivid colors — 1800:1 contrast ratio for enhanced image depth
Excellent off-axis readability — full 89/89/89/89° viewing angles with no color shift
Normally Black mode — superior dark-room performance for medical and control room applications
No grayscale inversion — unlike conventional TN panels
6. Anti-Glare Surface Treatment (Matte)
The G320ZAN02.2 features an anti-glare (matte) surface treatment. Key benefits include:
Reduced reflections in high-ambient-light environments
Reduced eye strain during long work sessions
Enhanced readability in brightly lit professional environments
Scratch resistance — 3H hard coating for daily use durability
7. eDP Interface for High-Bandwidth Connectivity
The eDP (Embedded DisplayPort) 4 Lanes interface with HBR2 (5.4G/lane) offers:
High bandwidth — sufficient for 4K UHD resolution at 60Hz
Fewer signal lines — simplified cable management
Low EMI — better electromagnetic compatibility
Modern compatibility — ideal for current-generation processors and SoCs
8. Built-in LED Driver – Simplified Integration
The panel comes with a built-in LED driver:
No external driver design required — saves BOM cost and PCB space
Simplified system integration — plug-and-play backlight solution
Reduced development time — one less circuit to design
24.0V backlight input — standard industrial power supply compatibility
9. Industrial-Grade Reliability
30,000-hour WLED backlight life — long-term reliability for continuous operation
1.0G vibration resistance (9.8 m/s²) — suitable for transportation and industrial equipment
0°C ~ 50°C operating temperature — suitable for indoor professional environments
RoHS compliant — meets global environmental standards
In Production status — stable supply for ongoing production needs
10. Slim Mechanical Design
20.48mm overall depth — fits standard industrial enclosures
4.63Kg weight — manageable for large-format installations

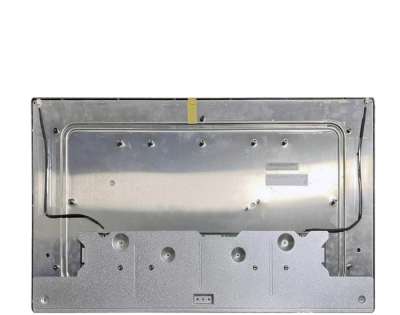

Rear mounting holes — secure installation options
Landscape orientation — designed for landscape mode operation
Applications
The AUO G320ZAN02.2 is designed for professional, medical, and industrial applications requiring exceptional resolution, brightness, and color accuracy:
Application Area | Specific Use Cases |
Professional Design | 4K graphic design workstations, CAD/CAM displays, architectural visualization |
Medical Imaging | Diagnostic displays, PACS workstations, surgical monitors, mammography |
Outdoor Digital Signage | High-brightness outdoor advertising, public information displays |
Outdoor Kiosks | EV charging station displays, ticketing machines, ATMs, wayfinding |
Video Editing & Post-Production | 4K color grading monitors, video editing suites, animation workstations |
Photography | Professional photo editing, print proofing, studio monitors |
Control Rooms | Command center displays, security monitoring, traffic control |
Scientific Research | Lab equipment displays, data analysis, microscopy imaging |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Touch panel upgrades, custom cables, optical bonding
Order Information
Item | Details |
Model | AUO G320ZAN02.2 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Packaging | 4 pcs per carton (820×220×535 mm, 21.5Kg) |
Production Status | In Production |
Comparison reference between AUO G215HAN01.501 and models of the same series/size:
Comparison item | G320ZAN02.2 | Ordinary 32-inch 4K industrial screen | Advantages Description |
Resolution | 4K UHD (3840×2160) | 4K UHD | Same |
Pixel density | 137 PPI | 137 PPI | Same |
Brightness | 850 cd/m² | 250-500 cd/m² | 2-3 times brightness, readable in sunlight |
Contrast | 1800:1 | 1000:1 | Higher contrast, deeper black |
color gamut | 100% Adobe RGB / 98% DCI-P3 | 72% NTSC / sRGB | Professional-grade wide color gamut |
Color depth | 10-bit (1.07B colors) | 8-bit (16.7 million colors) | 64 times the color, no discontinuity |
Display technology | AHVA (IPS type) | IPS/VA | Full-view, normally black display |
Backlight driver | built-in | partially needs to be externalized | Simplified design |
vibration resistance | 1.0G | - | Industrial-grade reliability |
Main applications | Professional design/medical/outdoor highlight | universal | Specially designed for high-end applications |
