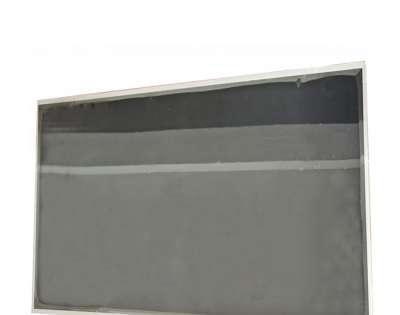

AUO G320ZAN02.4 32 Inch 4K UHD LCD Display – 95% DCI-P3 Medical & Professional Panel
Product Overview
The AUO G320ZAN02.4 is a 32.0-inch professional-grade TFT-LCD display module manufactured by AU Optronics (AUO). First launched in Q4 2022, this panel delivers stunning 4K UHD resolution (3840×2160) in a 16:9 widescreen format, specifically engineered for medical imaging equipment, professional design workstations, industrial HMI, and surveillance applications requiring exceptional resolution, color accuracy, and reliability.
Key Differentiators:
4K UHD Resolution (3840×2160, 137 PPI) — 4 times the pixels of standard FHD displays
95% DCI-P3 & 100% sRGB Ultra-Wide Color Gamut — Professional-grade color accuracy
10-bit Color Depth — 1.07 billion colors for ultra-smooth gradations
V-by-One 8 Lane Interface — High-bandwidth connectivity for 4K@60Hz
Built-in LED Driver — Simplified system integration
Equipped with AHVA (AUO Advanced wide Viewing Angle) technology—similar to IPS—this display offers full 89/89/89/89° viewing angles with Normally Black mode for superior dark-room performance. With 500 cd/m² brightness, 1000:1 contrast ratio, and 30,000-hour WLED backlight life, the G320ZAN02.4 delivers exceptional visual performance for the most demanding professional applications.
Key Features
Parameter | Specification |
Brand | AUO (AU Optronics) |
Model | G320ZAN02.4 |
Screen Size | 32.0 inch |
Resolution | 4K UHD 3840 × 2160 |
Pixel Density | 137 PPI |
Aspect Ratio | 16:9 |
Display Technology | a-Si TFT-LCD, AHVA/AMVA, Normally Black, Transmissive |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89°/89°/89°/89° (Full) |
Response Time | 22 ms (Typ.)(Tr+Td) |
Display Colors | 1.07B (10-bit) |
Color Gamut | 95% DCI-P3, 100% sRGB, 96% NTSC, 86% Adobe RGB |
Color Temperature | 6485K |
White Chromaticity | Wx:0.313, Wy:0.329 |
Interface | V-by-One 8 Lane, 51 pins |
Connector | JAE FI-RE51S-HF (0.5mm pitch) |
Backlight Type | WLED, Edge light type |
Backlight Life | 30,000 hours (Min.) |
LED Driver | Built-in |
Touch Panel | No (custom touch upgrades available) |
Operating Temperature | 0°C ~ 50°C |
Storage Temperature | -20°C ~ 60°C |
Vibration Resistance | 1.0G (9.8 m/s²) |
Active Area | 708.48 × 398.52 mm |
Outline Dimension | 727.3 × 424.5 × 20.98 mm |
Bezel Opening | 714.48 × 404.52 mm |
Surface Treatment | Anti-Glare (Matte) |
Weight | 4.63Kgs (Typ.) |
Refresh Rate | 60Hz |
Power Consumption | 76W (Max.) |
Production Status | In Production |
1. 4K UHD Resolution (3840×2160) – 4X Pixels of FHD
The G320ZAN02.4 delivers stunning 4K UHD resolution with 137 PPI pixel density—4 times more pixels than standard FHD (1920×1080) displays. Key benefits include:
Exceptional image detail — perfect for medical imaging, graphic design, and CAD/CAM
Massive screen real estate — multitask with multiple windows without overlap
Ultra-sharp text rendering — no visible pixels, reduced eye strain
Crisp, detailed imagery — ideal for PACS workstations and diagnostic displays
2. Ultra-Wide Color Gamut – 95% DCI-P3 & 100% sRGB
The G320ZAN02.4 delivers industry-leading color performance with 95% DCI-P3, 100% sRGB, 96% NTSC, and 86% Adobe RGB coverage. Key benefits include:
Cinema-grade color reproduction — 95% DCI-P3 meets professional post-production standards
Medical imaging ready — exceeds the color accuracy requirements for diagnostic displays
Photo editing excellence — 86% Adobe RGB coverage for print and professional photography
Vibrant, lifelike colors — 96% NTSC delivers stunning, saturated colors
3. 10-Bit Color Depth – 1.07 Billion Colors
The G320ZAN02.4 supports 10-bit color depth, displaying 1.07 billion colors—64 times more than standard 8-bit panels. Key benefits include:
Ultra-smooth color gradations — no visible banding in gradients
Superior image quality — perfect for medical imaging and professional video
Accurate color reproduction — essential for color-critical applications
4. AHVA Wide Viewing Angle Technology
The G320ZAN02.4 incorporates AUO's proprietary AHVA technology (similar to IPS), delivering full 89/89/89/89° viewing angles. Key benefits include:
Excellent off-axis readability — no color shift or contrast loss from any angle
Superior color consistency — accurate colors across the entire viewing cone
Normally Black mode — deeper blacks and better contrast in dark environments
No grayscale inversion — unlike conventional TN panels
5. Anti-Glare Surface Treatment (Matte)
The G320ZAN02.4 features an anti-glare (matte) surface treatment. Key benefits include:
Reduced reflections in high-ambient-light environments
Reduced eye strain during long work sessions
Enhanced readability in brightly lit professional environments
Scratch resistance for daily use durability
6. V-by-One Interface for High-Bandwidth Connectivity
The V-by-One 8 Lane interface with 51-pin connector offers:
High bandwidth — sufficient for 4K UHD resolution at 60Hz
Reliable signal transmission — designed for high-resolution displays
Standard interface — widely used in industrial and medical applications
12.0V logic voltage — compatible with industrial systems
7. Built-in LED Driver – Simplified Integration
The panel comes with a built-in LED driver:
No external driver design required — saves BOM cost and PCB space
Simplified system integration — plug-and-play backlight solution
Reduced development time — one less circuit to design
24.0V backlight input — standard industrial power supply compatibility
8. Industrial-Grade Reliability
30,000-hour WLED backlight life — long-term reliability for continuous operation
1.0G vibration resistance — suitable for medical equipment and industrial applications
0°C ~ 50°C operating temperature — suitable for indoor professional environments
RoHS compliant — meets global environmental standards
In Production status — stable supply for ongoing production needs
9. Mechanical Specifications for Easy Integration
708.48 × 398.52 mm active area — standard 32-inch 4K size
727.3 × 424.5 × 20.98 mm outline — fits standard industrial enclosures

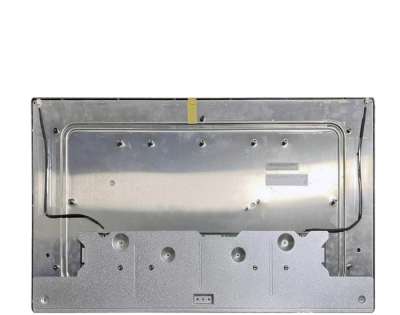

Rear mounting holes — secure installation options
Landscape orientation — designed for landscape mode operation
4.63Kg weight — manageable for large-format installations
Applications
The AUO G320ZAN02.4 is designed for professional, medical, and industrial applications requiring exceptional resolution, brightness, and color accuracy:
Application Area | Specific Use Cases |
Medical Imaging | PACS workstations, diagnostic displays, surgical monitors, mammography |
Professional Design | 4K graphic design workstations, CAD/CAM displays, architectural visualization |
Industrial HMI | High-end industrial control panels, SCADA systems, process monitoring |
Video Editing & Post-Production | 4K color grading monitors, video editing suites |
Security & Surveillance | Control room displays, monitoring stations |
Scientific Research | Lab equipment displays, data analysis, microscopy imaging |
Gaming & Simulation | Professional simulation systems |
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment
Customization Services — Touch panel upgrades, custom cables, optical bonding
Order Information
Item | Details |
Model | AUO G320ZAN02.4 |
Condition | New, Original |
MOQ | 1 piece (samples available) |
Warranty | 1 year |
Lead Time | 3-7 business days (depending on quantity) |
Packaging | 4 pcs per carton (820×220×535 mm, 21.5Kg) |
Production Status | In Production |
Comparison reference between AUO G215HAN01.501 and models of the same series/size:
Comparison item | G320ZAN02.4 | G320ZAN02.2 | Ordinary 32-inch 4K industrial screen | Advantages Description |
Resolution | 4K UHD (3840×2160) | 4K UHD | 4K UHD | Same |
Pixel density | 137 PPI | 137 PPI | 137 PPI | Same |
Brightness | 500 cd/m² | 850 cd/m² | 250-500 cd/m² | Standard indoor brightness, suitable for medical/professional applications |
Contrast | 1000:1 | 1800:1 | 1000:1 | standard contrast |
color gamut | 95% DCI-P3 / 100% sRGB | 100% Adobe RGB / 98% DCI-P3 | 72% NTSC / sRGB | Professional-grade wide color gamut |
Color depth | 10-bit (1.07B colors) | 10-bit (1.07B colors) | 8-bit (16.7 million colors) | 64 times the color, no discontinuity |
interface | V-by-One 8 Lane | eDP | LVDS/eDP | High-speed industrial interface |
Main applications | Medical/Professional Design | Outdoor/Professional Design | universal | Specially designed for medical and professional applications |
